Allen-Bradley MicroLogix 1200 Installation Instructions

8 MicroLogix 1200 Analog Output Module
Publication 1762-IN016B-EN-P - December 2005
Before mounting the module on a DIN rail, close the DIN rail latch. Press the DIN
rail mounting area of the module against the DIN rail. The latch will momentarily
open and lock into place.
Use DIN rail end anchors (Allen-Bradley part number 1492-EA35 or 1492-EAH35)
for environments with vibration or shock concerns.

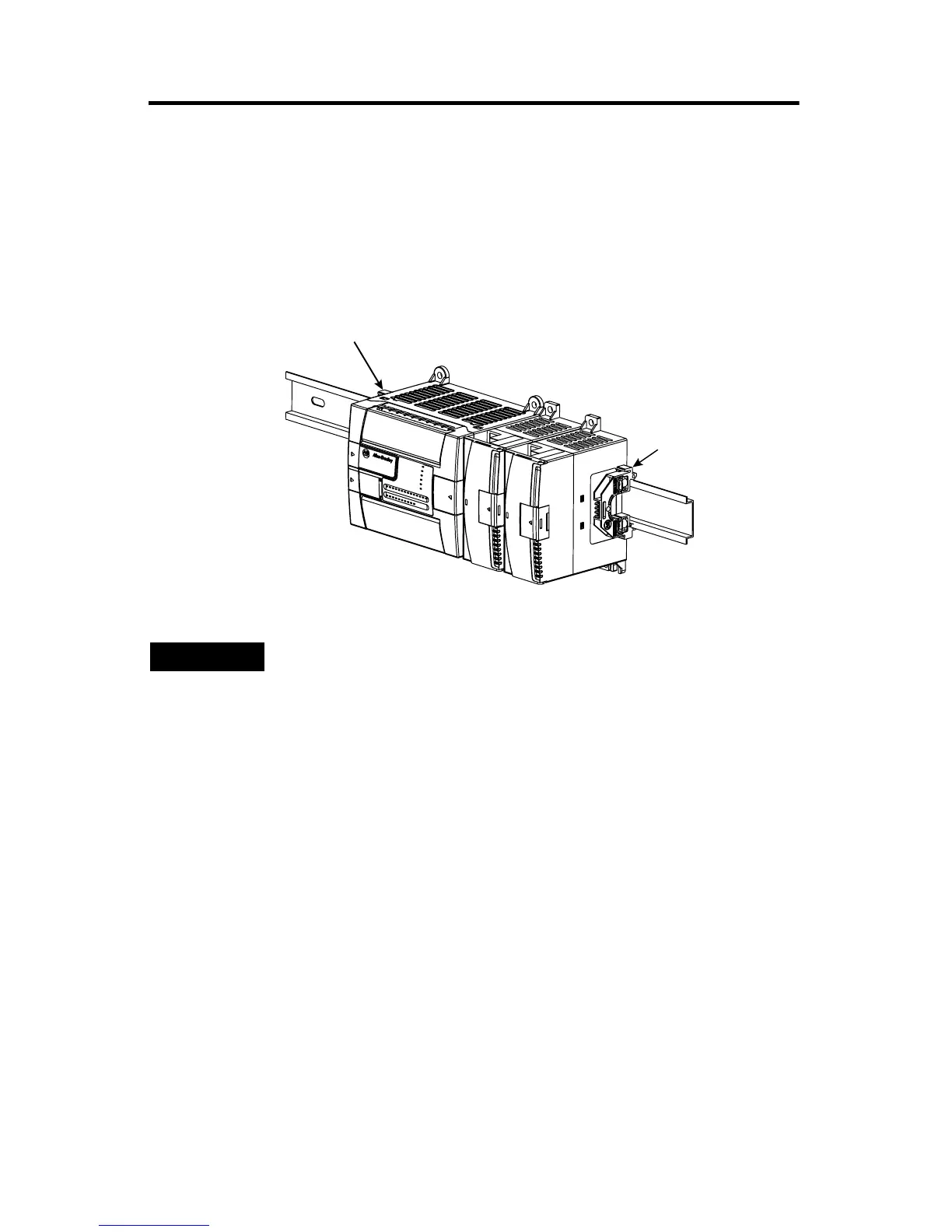

Figure 3 DIN Rail Mount
Mount the Module on a Panel
Use the dimensional template to mount the module. The preferred mounting
method is to use two M4 or #8 panhead screws per module. M3.5 or #6 panhead
screws may also be used, but a washer may be needed to ensure a good ground
contact. Mounting screws are required on every module.
TIP
For environments with extreme vibration and shock concerns, use
the panel mounting method described below, instead of DIN rail
mounting.
End Anchor
End Anchor

Allen-Bradley MicroLogix 1200 Specifications

General

Series	MicroLogix 1200
Type	Programmable Logic Controller (PLC)
Mounting	DIN rail or panel mount
Programming Language	Ladder Logic
Programming Software	RSLogix 500
I/O Points	Up to 40
Communication Ports	RS-232, RS-485
Memory	6 KB user memory
Power Supply	24V DC or 120/240V AC
Expansion	Supports expansion I/O modules
Operating Temperature	0°C to 55°C (32°F to 131°F)
Dimensions	90 mm x 110 mm
Weight	0.5 kg (1.1 lbs)
