140 Rockwell Automation Publication 750-IN001O-EN-P - October 2014
Chapter 3 Lift and Mount the Drive
Drive Assembly – Floor Mount Frames 8…10

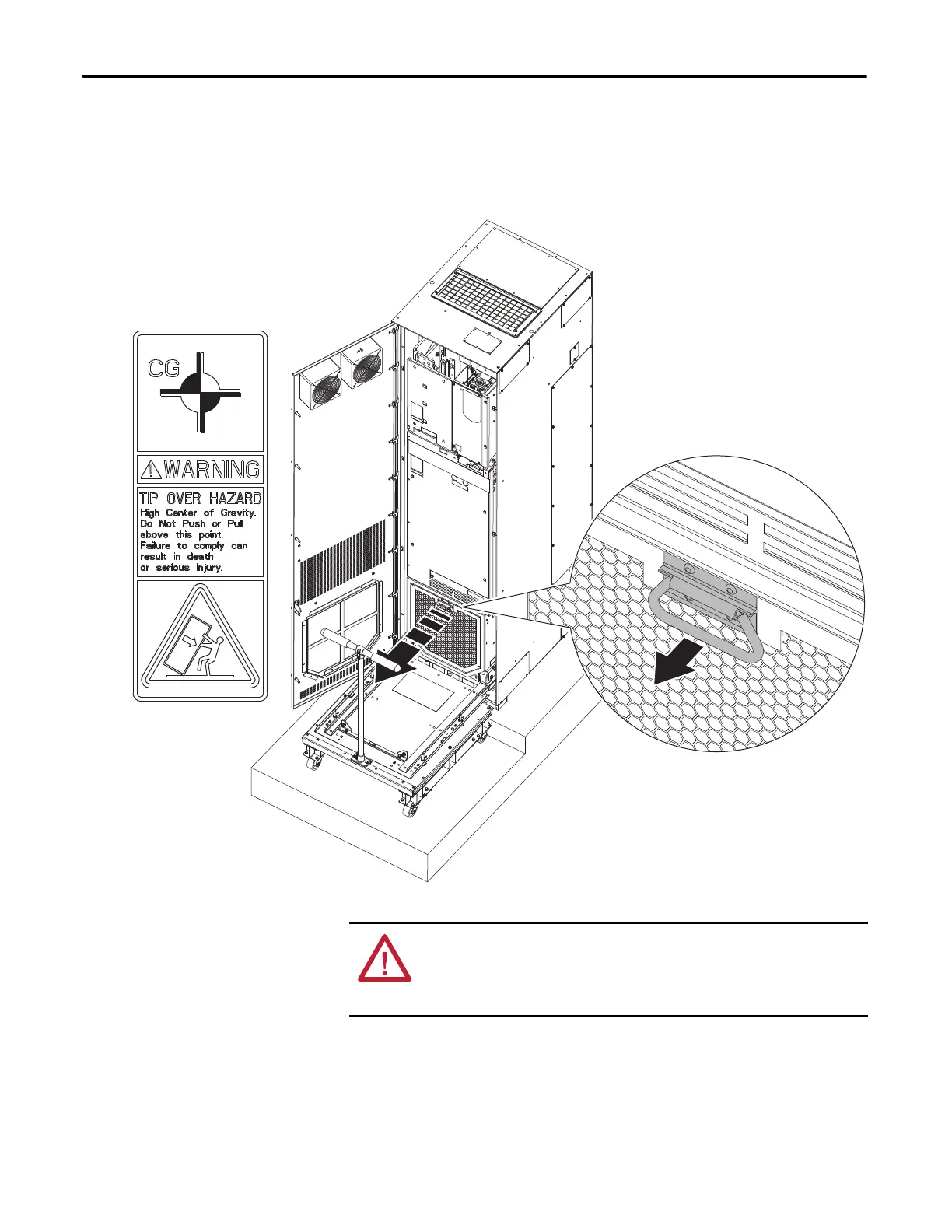

Use the handle above the fan intake to slowly and smoothly pull the drive
assembly on to the Roll-out Cart.
ATTENTION: This drive has a high center of gravity and a tip-over hazard exists.
To guard against death, serious personal injury, and/or equipment damage, do
not subject the drive to high rates of acceleration or deceleration while
transporting. Do not push or pull above the points indicated on the drive.
To Next Page
