Chapter 5 I/O Wiring
2-Wire Control Reversing
External 24 volt supply
20-750-1132C-2R
20-750-1133C-1R2T
11-Series I/O Module TB1
• Set Direction Mode
Port 0: P308 [Direction Mode] = 0 “Unipolar”
• Set Selection
Port 0: P164 [DI Run Forward] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
Port 0: P165 [DI Run Reverse] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 1 = Input 1
• View Results
Port X (11-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
3-Wire Control
Internal supply
11-Series I/O Module TB1
• Set Selection
Port 0: P158 [DI Stop] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
Port 0: P161 [DI Start] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 1 = Input 1
• View Results
Port X (11-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]
3-Wire Control
External 24 volt supply
20-750-1132C-2R
20-750-1133C-1R2T
11-Series I/O Module TB1
• Set Selection
Port 0: P158 [DI Stop] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
Port 0: P161 [DI Start] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 1 = Input 1
• View Results
Port X (11-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]

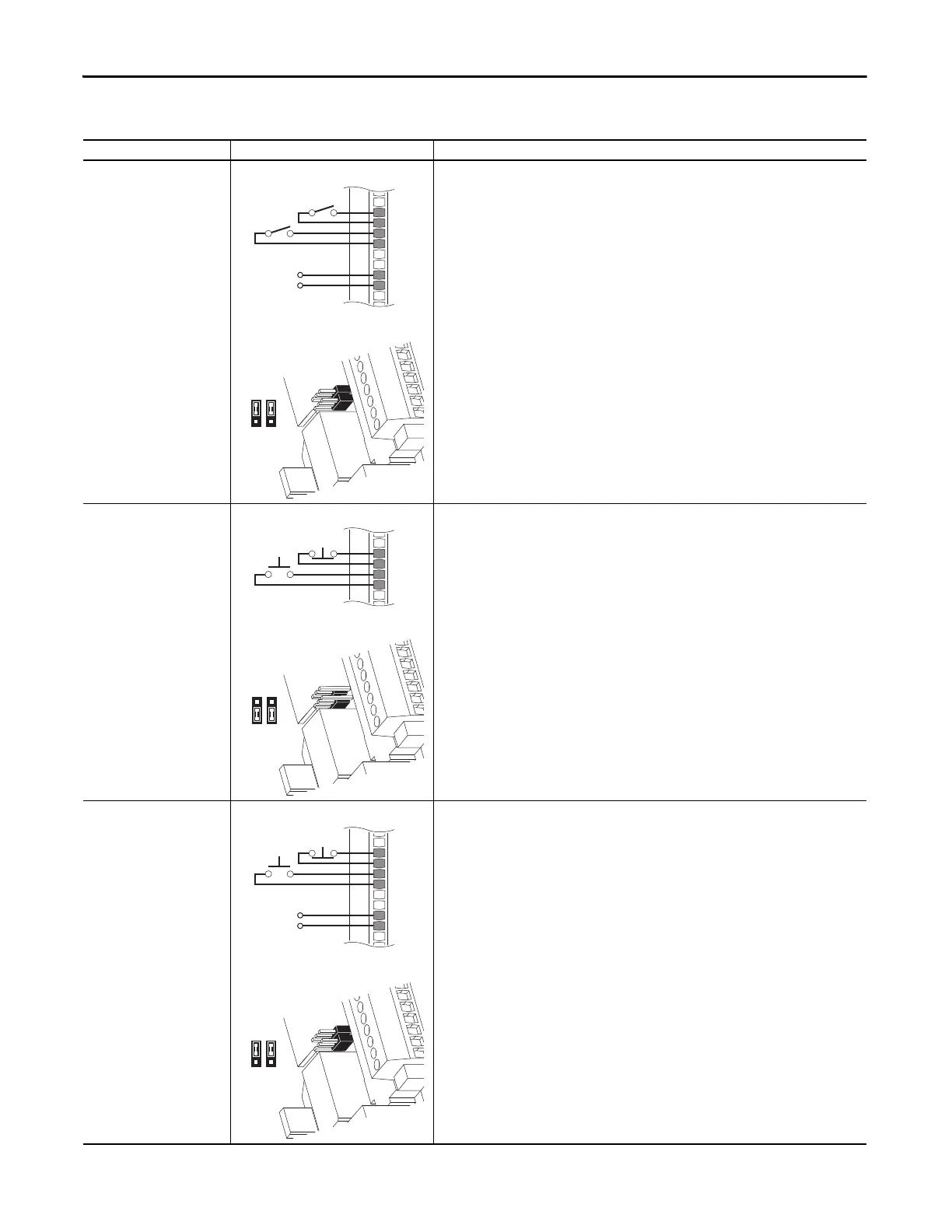

11-Series I/O Module TB1 Wiring Examples (Continued)
Input/Output Connection Example Required Parameter Changes
Di0
Di0P
Di1
Di1P
Ip
Ic
+24V
Common
Run Fwd
Run Rev
P3 P8
3
1
3
1
Di0
Di0P
Di1
Di1P
Stop
Start
P3
P8
3
1
3
1
Di0
Di0P
Di1
Di1P
Ip
Ic
+24V
Common
Stop
Start
P3 P8
3
1
3
1
