I/O Wiring Chapter 5
3-Wire Control
External 120 volt supply
20-750-1132D-2R
11-Series I/O Module TB1
• Set Selection
Port 0: P158 [DI Stop] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 0 = Input 0
Port 0: P161 [DI Start] = Port X (11-Series I/O Module): P1 [Dig In Sts], bit 1 = Input 1
• View Results
Port X (11-Series I/O Module): P1 [Dig In Sts]
Port 0: P935 [Drive Status 1]

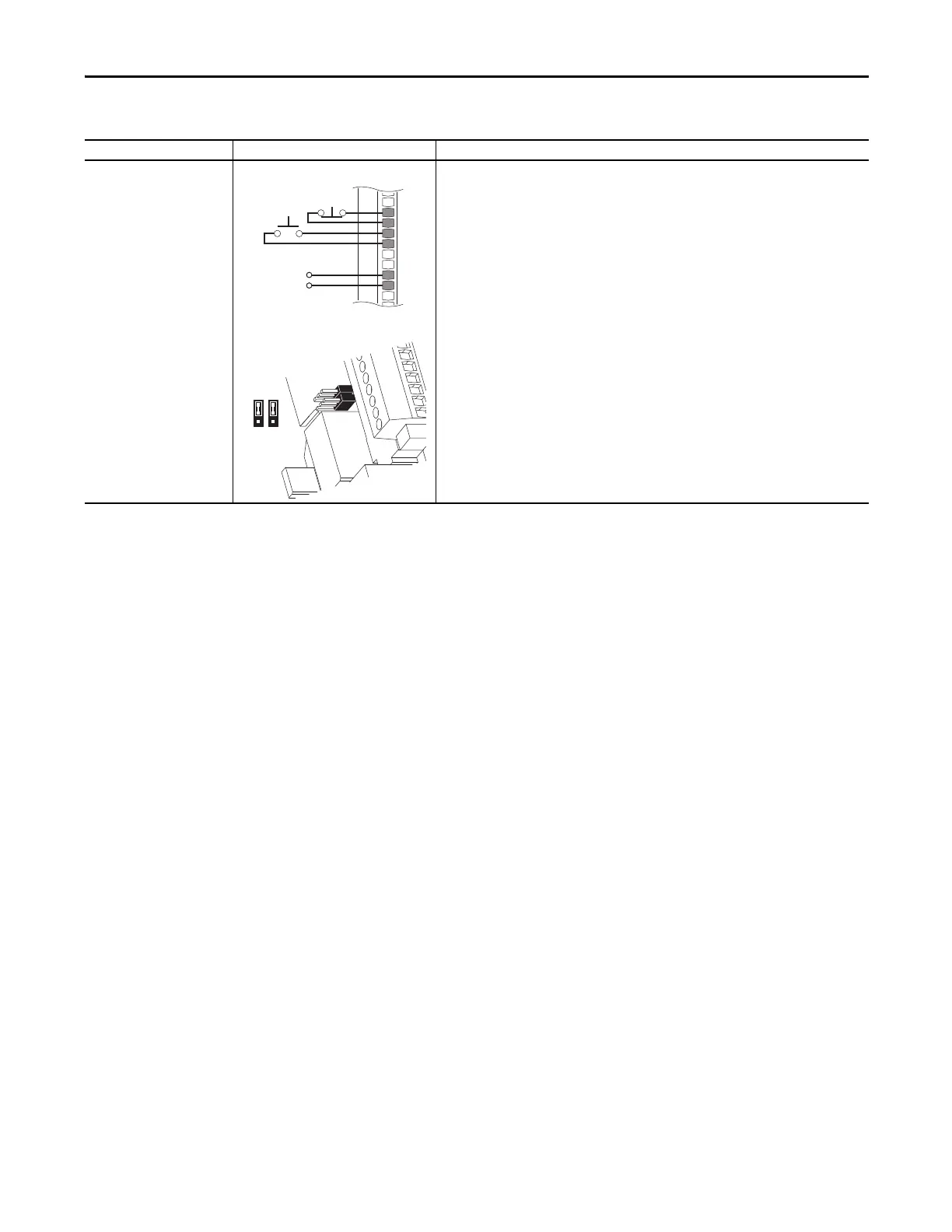

11-Series I/O Module TB1 Wiring Examples (Continued)
Input/Output Connection Example Required Parameter Changes
Di0
Di0P
Di1
Di1P
Ip
Ic
+120V
Common
Stop
Start
P3 P8
3
1
3
1
