Chapter 3 Lift and Mount the Drive

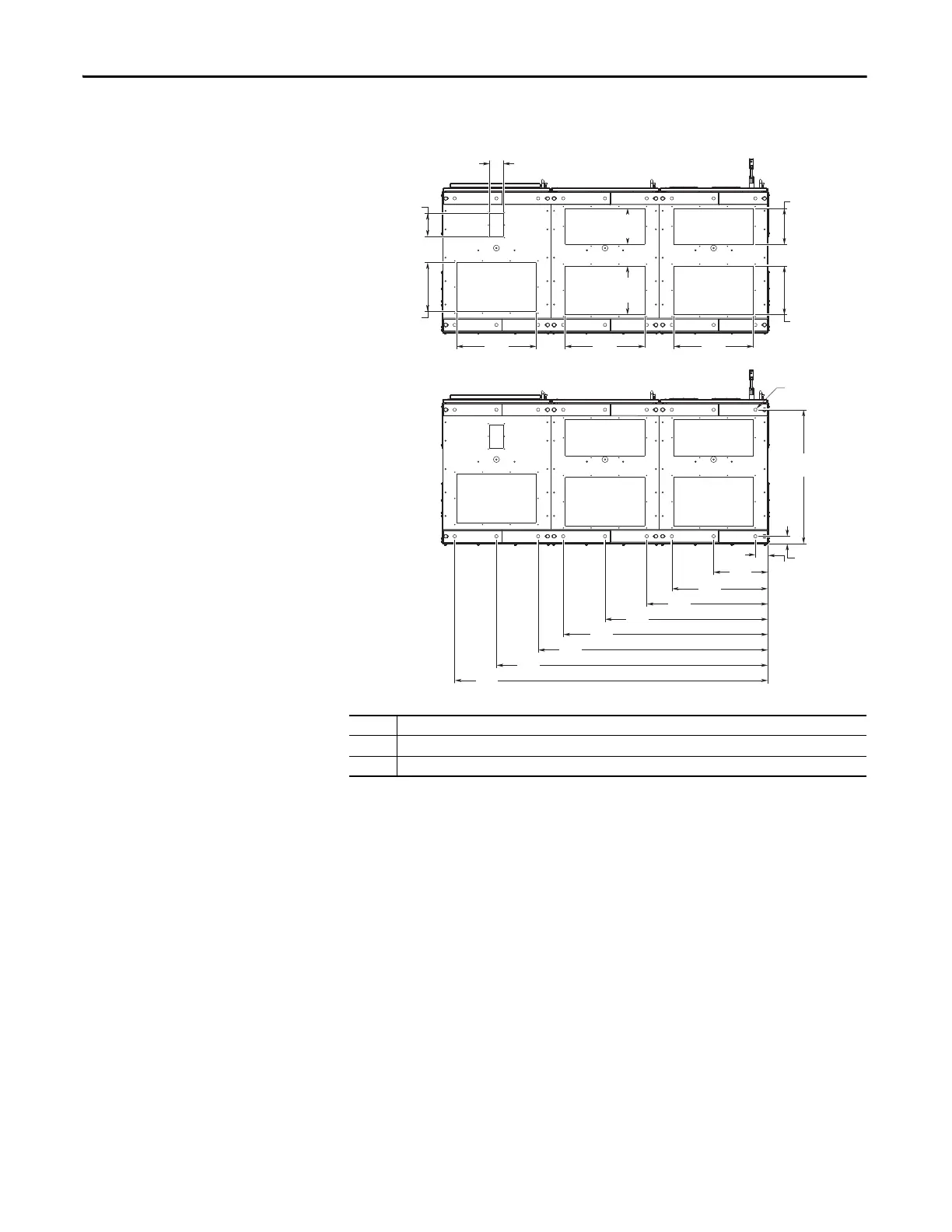

Figure 51 - IP20, NEMA/UL Type 1, MCC Style Cabinet, Floor Mount Frame 8 Bottom Access
Enclosure Code L, P, W - 800 mm Deep Drive with Wiring Bay and Cabinet Options Bay.
No. Description
➊ Power wiring conduit plates.
➋ Control wiring conduit plates.
300
(11.8)
531
(20.9)
669
(26.3)
900
(35.4)
1131
(44.5)
1269
(50.0)
1500
(59.1)
1731
(68.1)
69
(2.7)
ø18.0
(0.71)
742
(29.2)
43
(1.7)
1269
(50.0)
1500
(59.1)
1731
(68.1)
270
(10.6)
127
(5.0)
76
(3.0)
440
(17.3)
200
(7.9)
➊➊
➊
➊
➊
➋
440
(17.3)
270
(10.6)
200
(7.9)
270
(10.6)
440
(17.3)
