Allen-Bradley PowerFlex 70

64 Rockwell Automation Publication 20A-UM001N-EN-P - July 2013

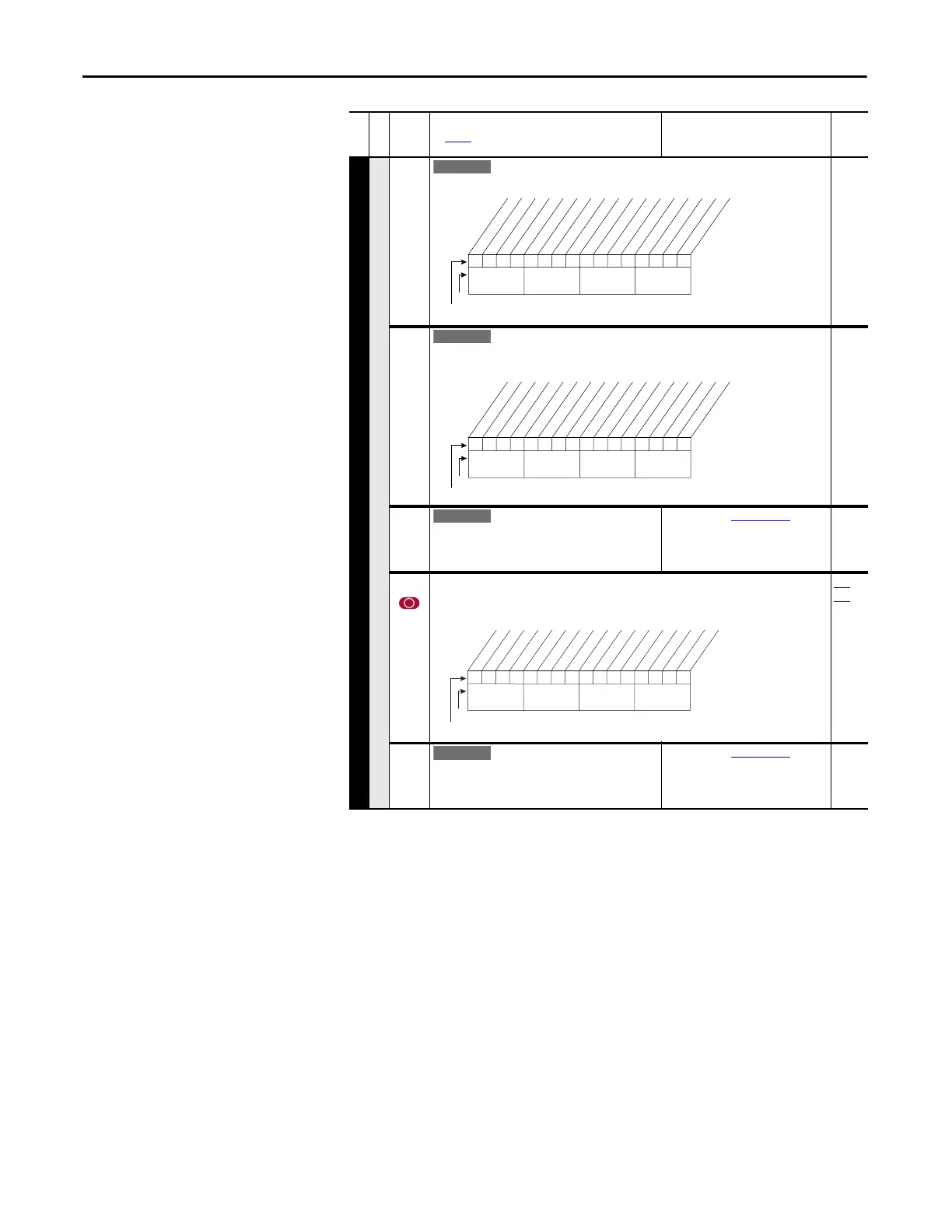

Chapter 1 Programming and Parameters
COMMUNICATION (file H)
Security
595 [Port Mask Act]
Active status for port communication.
596 [Write Mask Cfg]
Enables/disables write access (parameters, and so on) for ports. Changes to this parameter
are affective after a power cycle, drive reset or when 597, bit 15 transitions from “1” to “0.”
597 [Write Mask Act]
Active status of write access for ports. Bit 15
determines if network security is controlling the
write mask instead of 596.
See [Port Mask Act].
276 [Logic Mask]
Determines the adapters that can control the drive when 597, bit 15 is set to “1”. If the bit for
a port is set to “0,” the port has no control functions except for stop.
288
…
297
598 [Logic Mask Act]
Active status of logic mask for ports. Bit 15
determines if network security is controlling the logic
mask instead of 276.
See [Port Mask Act].
File H Group No.
Parameter Name and Description
See page 14 for symbol descriptions
Values
Related
E C v2
1=Not Masked
0=Masked
x =Reserved
1111x1xxxxxxxxx1
10 01234567891112131415
Bit #
Factory Default Bit Values
Host
DPI Port 1
DPI Port 2
DPI Port 3
DPI Port 5
Security
Nibble 1Nibble 2Nibble 3Nibble 4
E C v2
1=Not Masked
0=Masked
x =Reserved
1111x1xxxxxxxxxx
10 01234567891112131415
Bit #
Factory Default Bit Values
Host
DPI Port 1
DPI Port 2
DPI Port 3
DPI Port 5
Nibble 1Nibble 2Nibble 3Nibble 4
E C v2
1111x1xxxxxxxxxx
10 01234567891112131415
1 = Control Permitted
0 = Control Masked
x = Reserved
Bit #
Factory Default Bit Values
Digital In
DPI Port 1
DPI Port 2
DPI Port 3
DPI Port 5
Nibble 1Nibble 2Nibble 3Nibble 4
E C v2
