3-12 Access Procedures

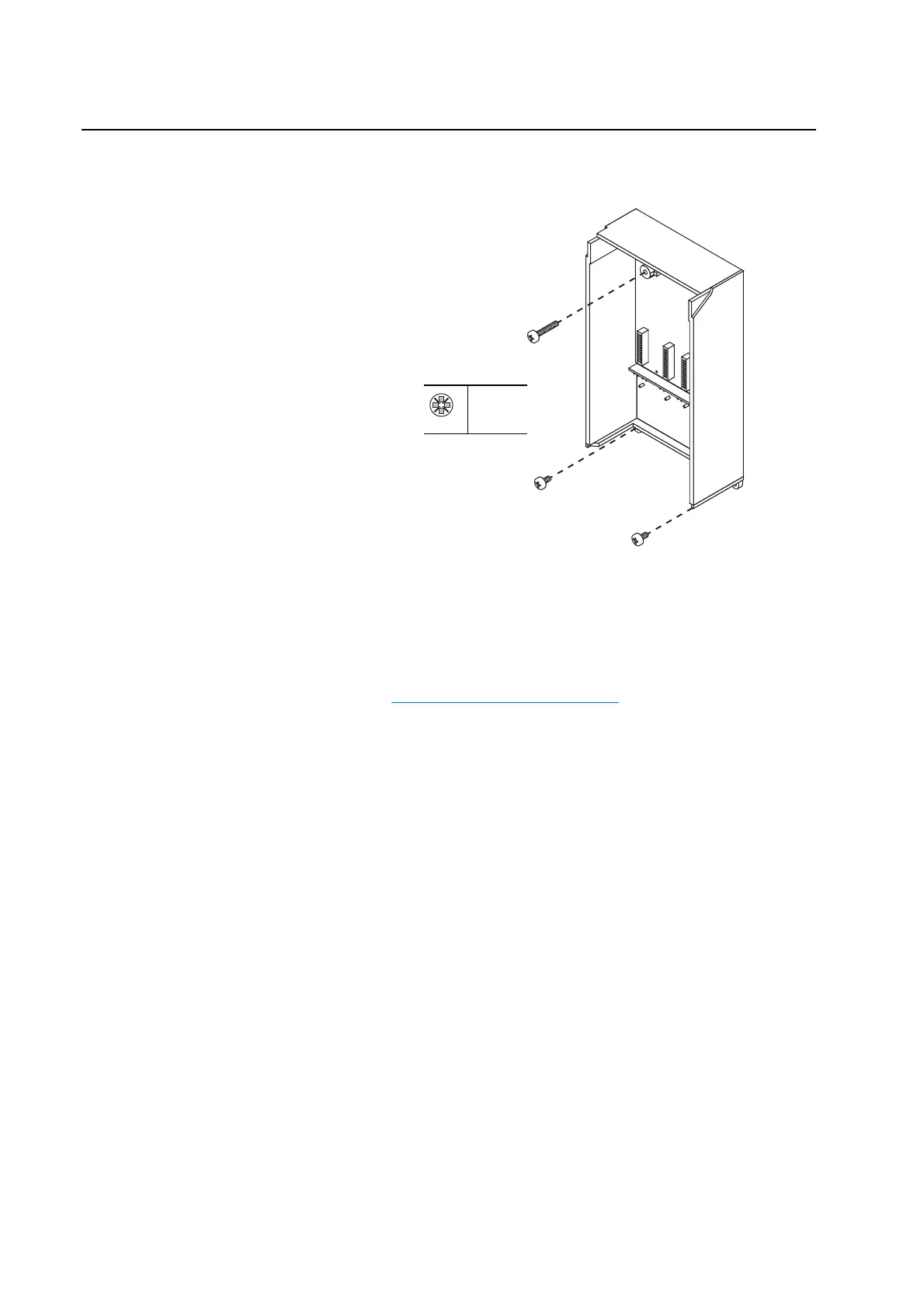

5. Remove the three screws which secure the Control Assembly to the
drive.
6. Remove the Control Assembly.
Installation
Install the 700H Control and I/O Boards in reverse order of removal, while
referring to Torque Specifications on page 3-1
.
Do not remove enclosure cover.
Enclosure is illustrated without
the cover for clarity.
PZ2
3 N-m
(27 lb.-in.)
To Next Page
