Schematics B-11
DC Input Motor Connections

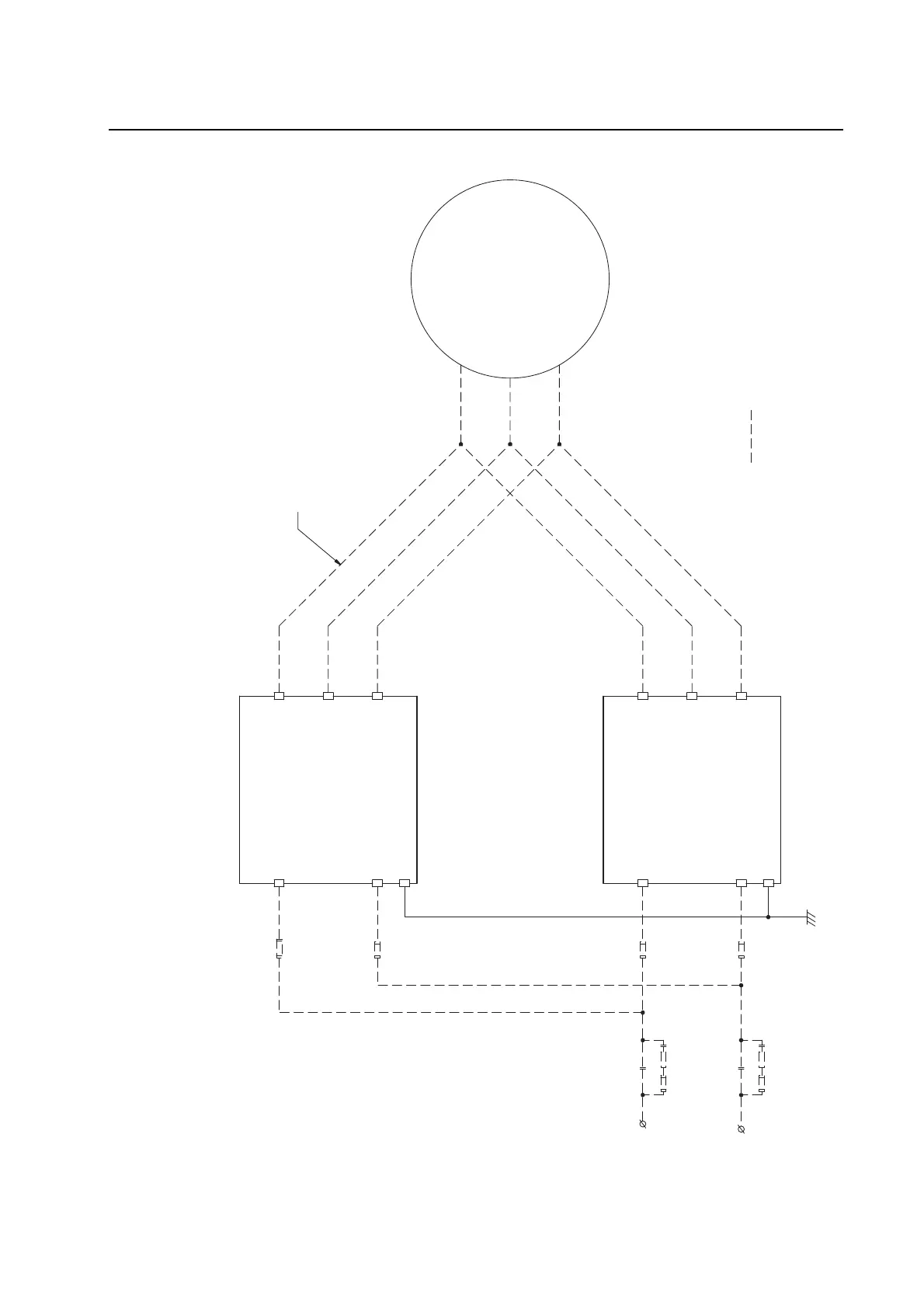

Figure B.10 DC Input Motor Connections
PE
DC+
W / T3
V / T2
U / T1
DC- W / T3
DC+
V / T2
U / T1
D
C-
DC+
DC-
PE
M
F1 R1CR2
M
F2 R2CR2
Power Structure #1
Power Structure #2
Motor
Customer Supplied
Cable Length >=5M
Symmetrical Layout
