3-22 Access Procedures

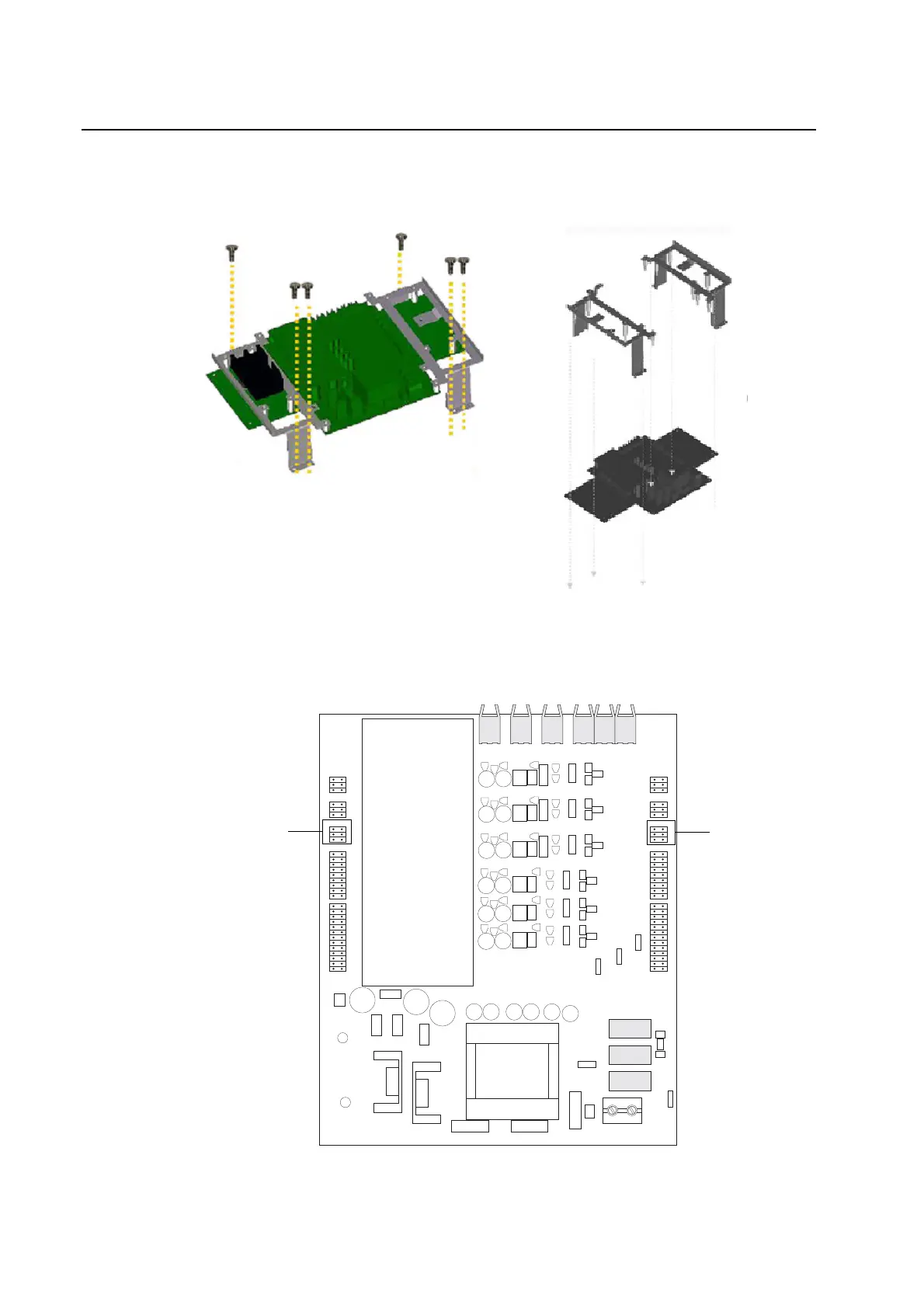

7. Remove the six screws which secure the brackets to the drive. Then
remove the brackets.
8. Remove eight of the stacker connectors from the Gate Driver Board,
leaving the two connectors that are third from the top.
H5H7H9H4H6H8
X3
X7
X8
X9
X10
X11
X12
X13
X1
X14
X15
X4
X5
X6
Do Not remove this
stacker connector
Do Not remove this
stacker connector
