Allen-Bradley PowerFlex 750 Series - Diagrams

Rockwell Automation Publication 750-PM001N-EN-P - February 2017 419
PowerFlex 755 Control Block Diagrams Appendix B

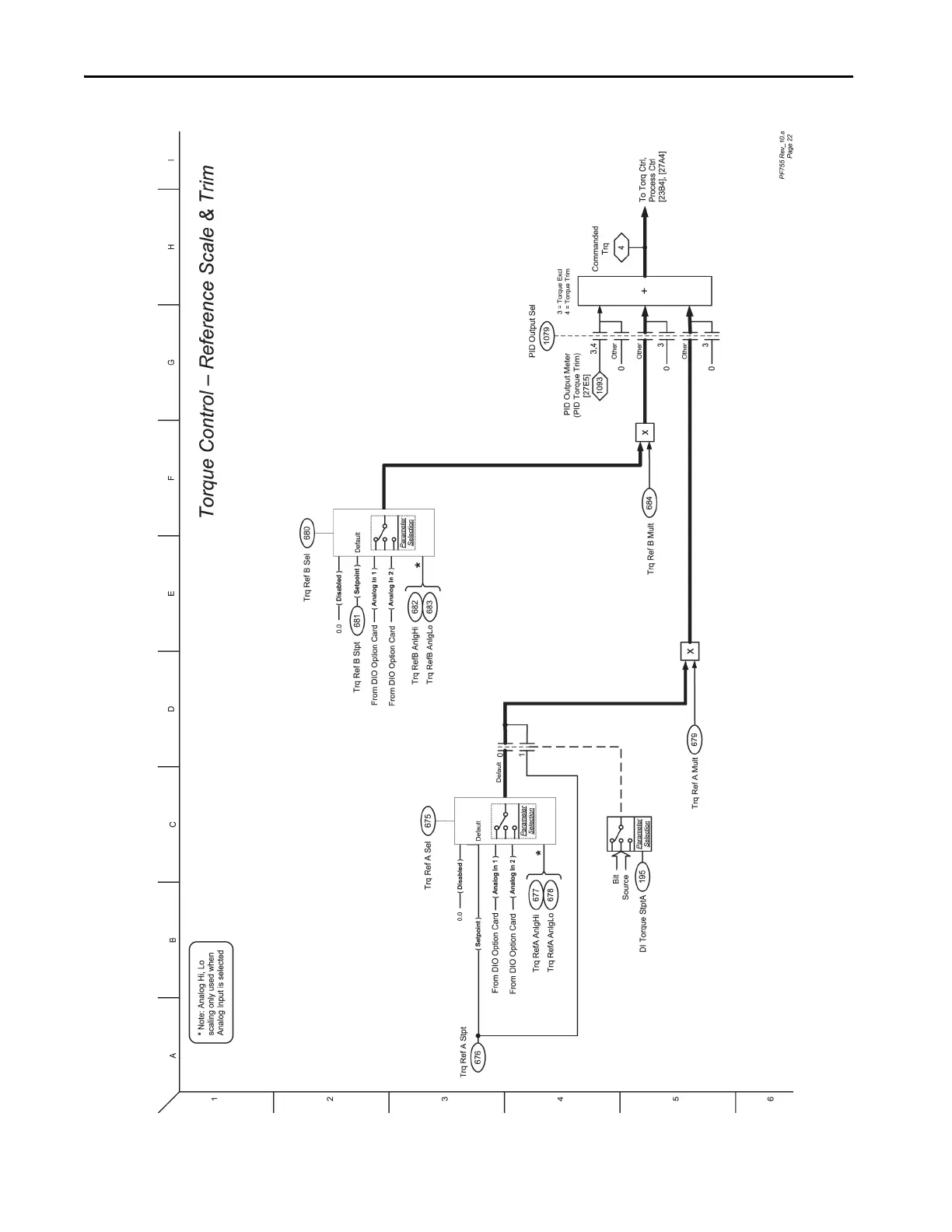

Figure 60 - Torque Control - Reference Scale & Trim
