PowerFlex 70 Dimensions 1-5
PowerFlex 70
Dimensions

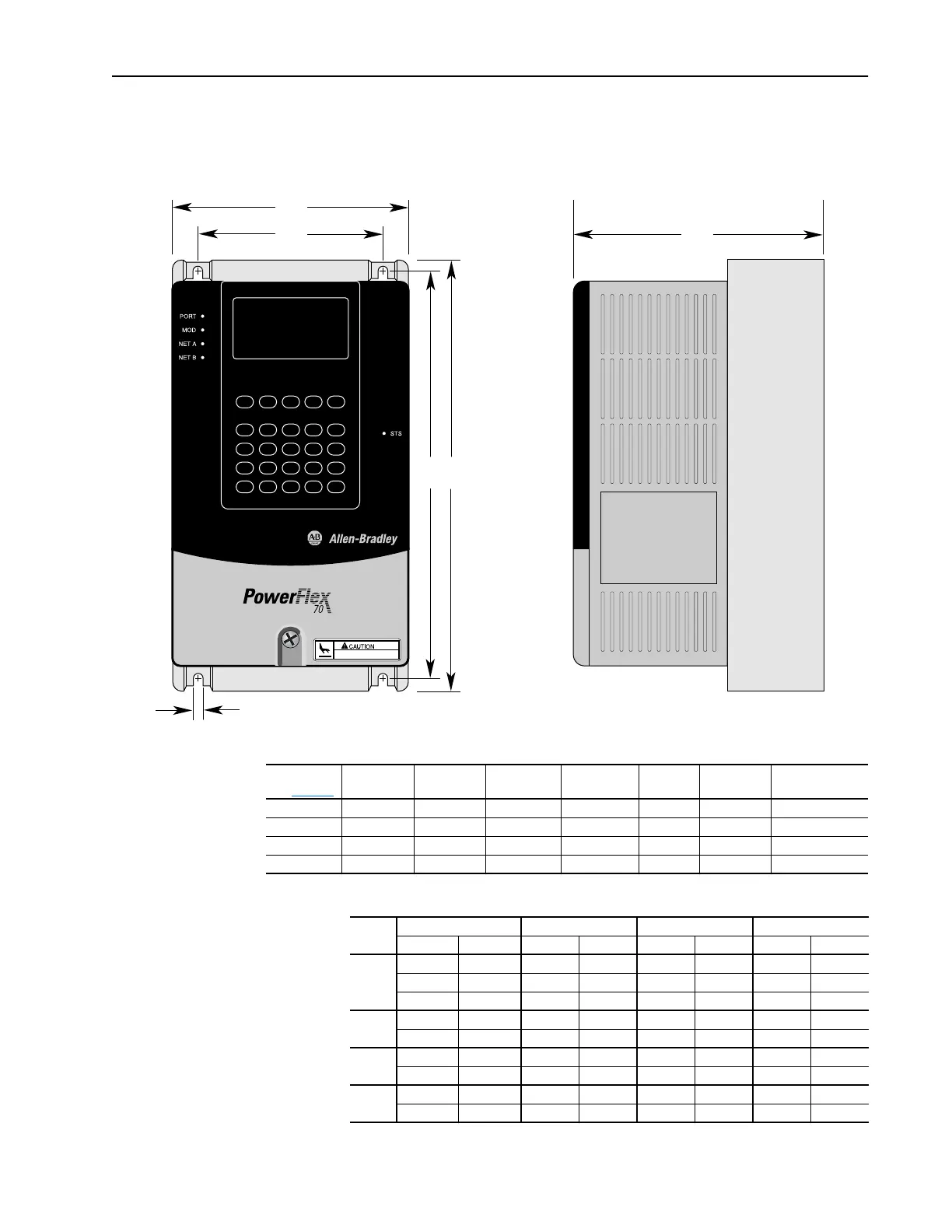

Figure 1.1 PowerFlex 70 Frames A-D
Dimensions are in millimeters and (inches)
Table 1.A PowerFlex 70 Frames
A
D
C
E
B
F
Frame
(see Table 1.A) A B C D E F Weight
A 121.9 (4.80) 94.2 (3.71) 211.6 (8.33) 225.8 (8.89) 5.8 (0.23) 179.8 (7.08) 3.56 kg (7.85 lb)
B 171.2 (6.74) 122.7 (4.83) 220.2 (8.67) 234.6 (9.24) 5.8 (0.23) 179.8 (7.08) 4.49 kg (9.9 lb)
C 185.9 (7.32) 137.6 (5.42) 285.6 (11.25) 300.0 (11.81) 5.8 (0.23) 179.8 (7.08) 7.60 kg (16.75 lb)
D 220.4 (8.68) 169.0 (6.65) 335.7 (13.21) 350.0 (13.78) 5.8 (0.23) 180.4 (7.10) 9.75 kg (21.5 lb)
Frame
240/208V AC Input 400V AC Input 480V AC Input 600V AC Input
ND HP HD HP ND kW HD kW ND HP HD HP ND HP HD HP
A 0.5 0.33 0.37 0.25 0.5 0.33 0.5 0.33
1 0.75 0.75 0.55 1 0.75 1 0.75
– – 1.5 1.1 2 1.5 2 1.5
B 2 1.5 2.2 1.5 3 2 3 2
– – 435353
C 3 2 5.5 4 7.5 5 7.5 5
5 3 7.5 5.5 10 7.5 10 7.5
D 7.5 5 11 7.5 15 10 15 10
10 7.5151120152015
