Accessories and Dimensions B-9
PowerFlex 40 Adjustable Frequency AC Drive FRN 1.xx - 7.xx User Manual
Publication 22B-UM001I-EN-E

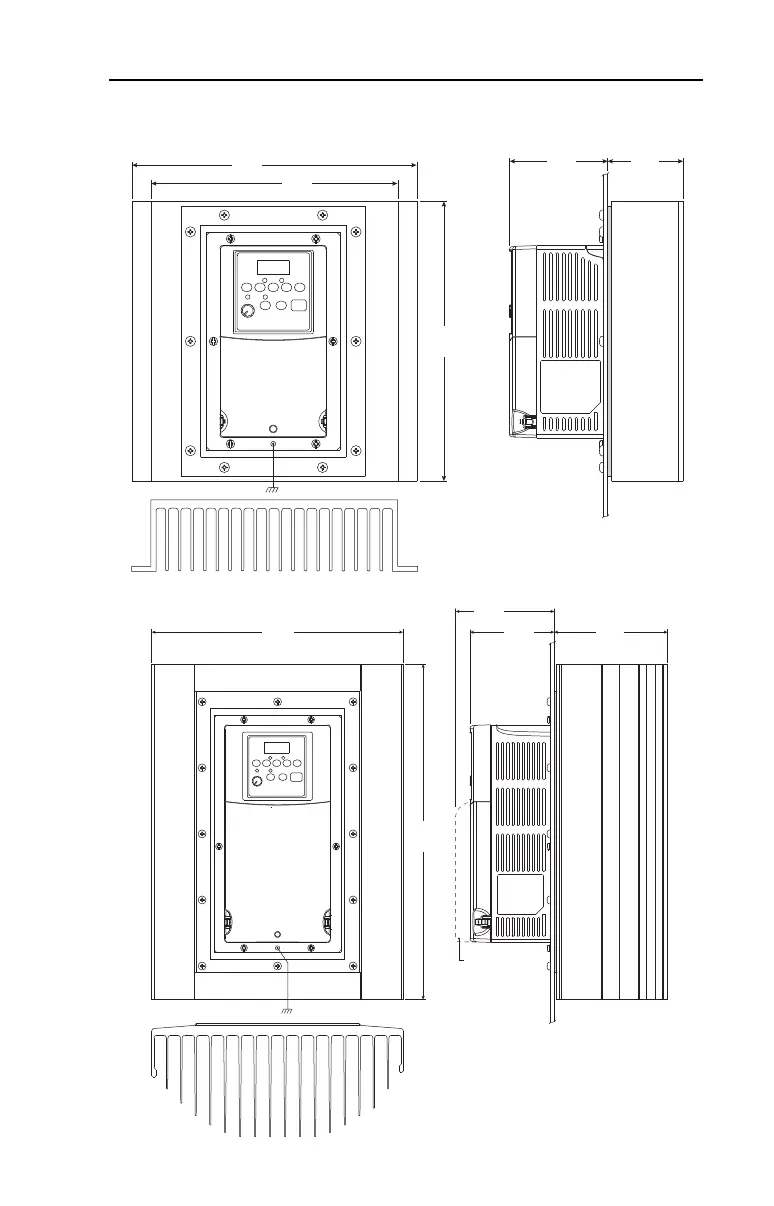

Figure B.4 PowerFlex 40 Flange Mount Drives – Dimensions are in millimeters and
(inches)
244
(9.61)
250
(9.84)
94.3
(3.71)
63.1
(2.48)
214
(8.43)
138.2
(5.44)
105.8
(4.17)
325
(12.8)
300
(11.81)
130.3
(5.13)
22B-CCC
Frame B
Frame C
