Publication 2711-UM014B-EN-P
Terminal Connections 12-31

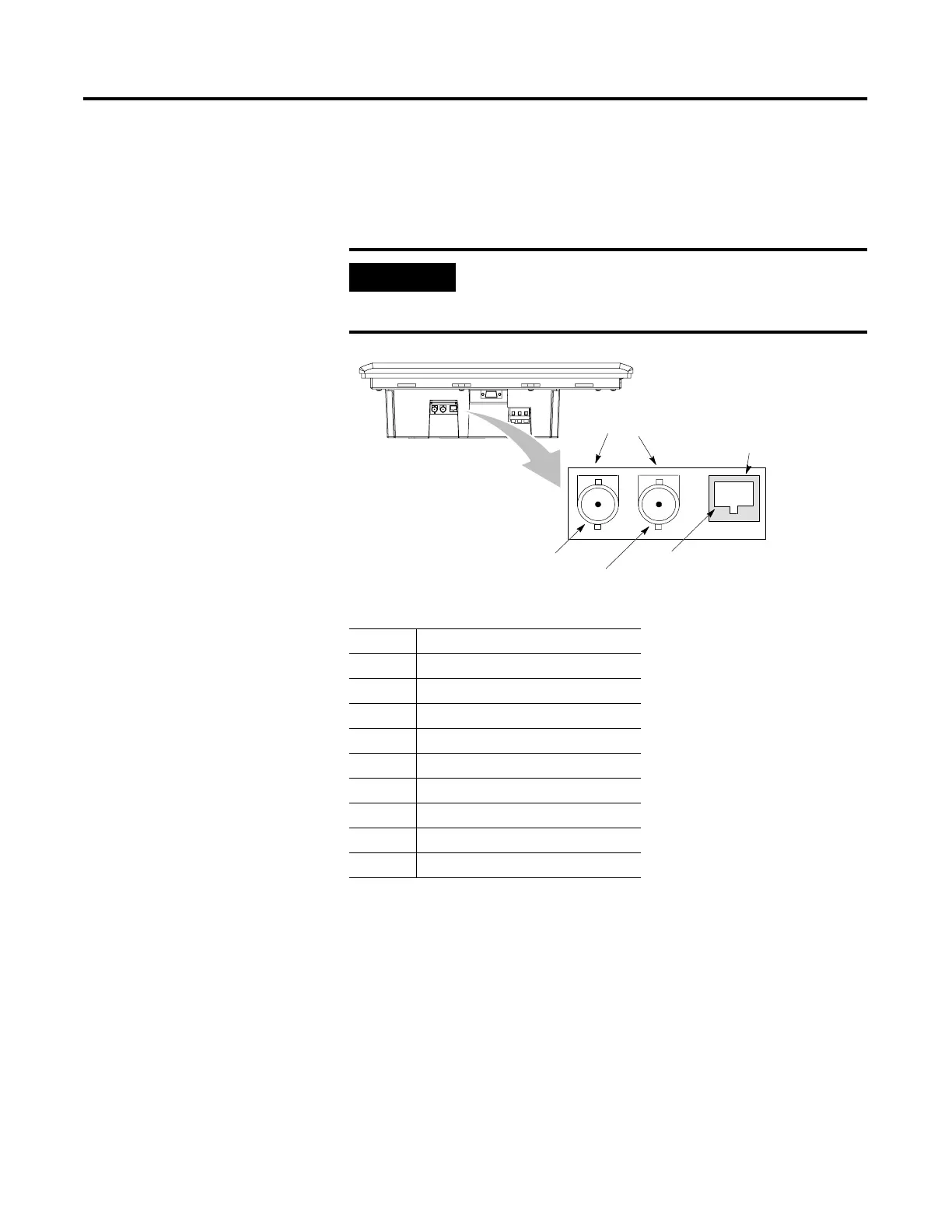

Making ControlNet Connections
Use the pinout information below to connect the PanelView to a
ControlNet network.
IMPORTANT
Follow the ControlNet network layout and design as
specified in the ControlNet Cable System Planning
and Installation Manual (Publication 1786-6.2).
Pin # NAP Signal
1 Signal Common
2 No Connection
3TX_H
4TX_L
5RX_L
6RX_H
7 No Connection
8 Signal Common
Shell Earth Ground
Channel B
Channel A
Pin 1
NAP Connector
Redundant BNC Cable Connectors
