Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 185

Configure Switch Features Chapter 7

Configure ACLs via Device Manager

The ACL window shows all existing standard and extended ACLs defined on

the switch. Once you add an ACL to the ACL List tab, you can apply it to a

port and specify a direction on the Apply ACL tab.

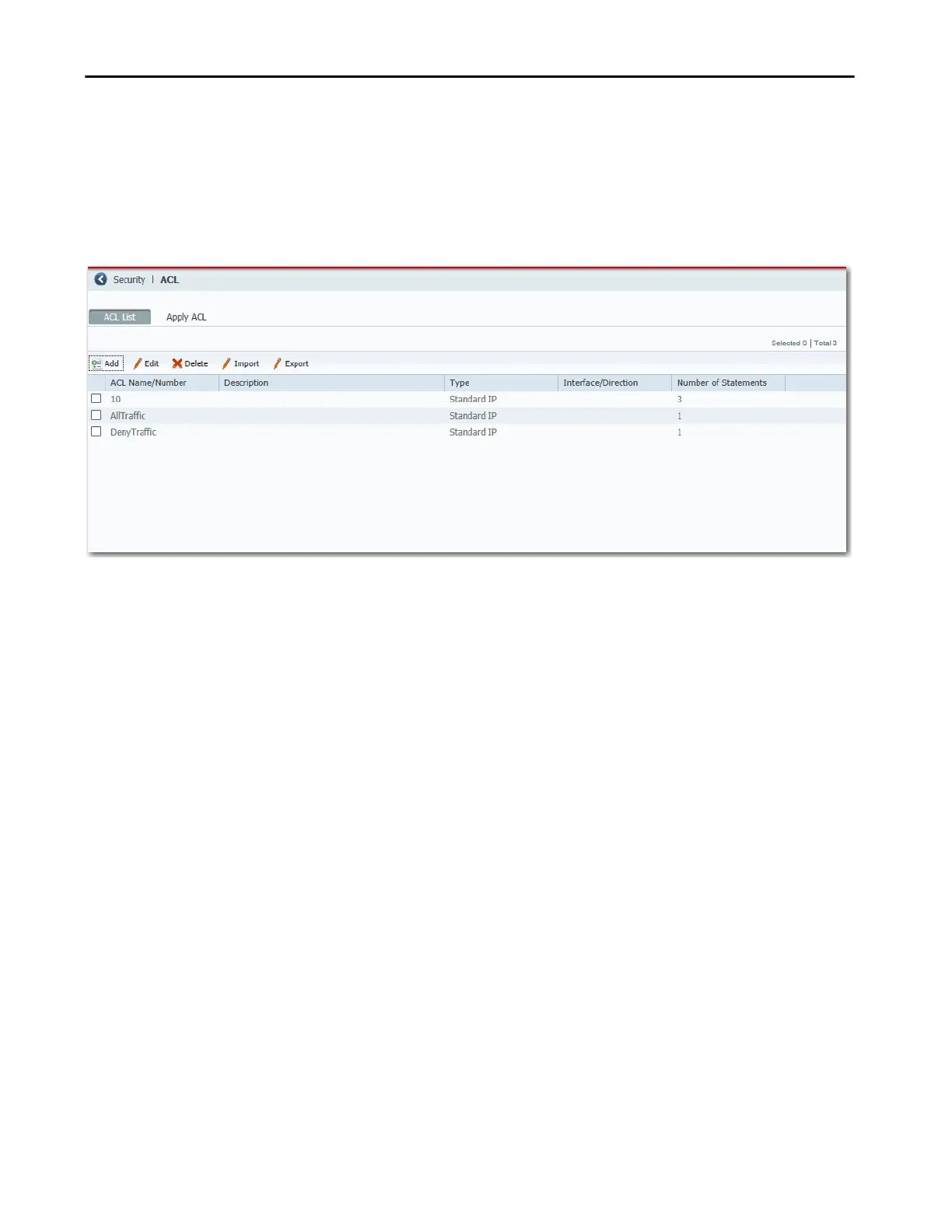

To configure an ACL, from the Configure menu, choose ACL.
