372 Rockwell Automation Publication 1783-UM007G-EN-P - February 2017
Chapter 8 Monitor the Switch
Switch Status via
Device Manager
The Dashboard window in Device Manager lets you monitor switch status and
performance.
The Dashboard window is similar to the Monitor > Trends window. The
Dashboard window displays the instantaneous status while the Trends window
displays the historical status. By using them together, you can gather the
detailed conditions of the switch and its ports. For information about the
Trends window, see
page 394.
The Front Panel has four areas to monitor the status of the switch:
• Front Panel, as described on
page 373
• Switch Information, as described on
page 385
• Switch Health, as described on
page 386
• Port Utilization, as described on
page 387

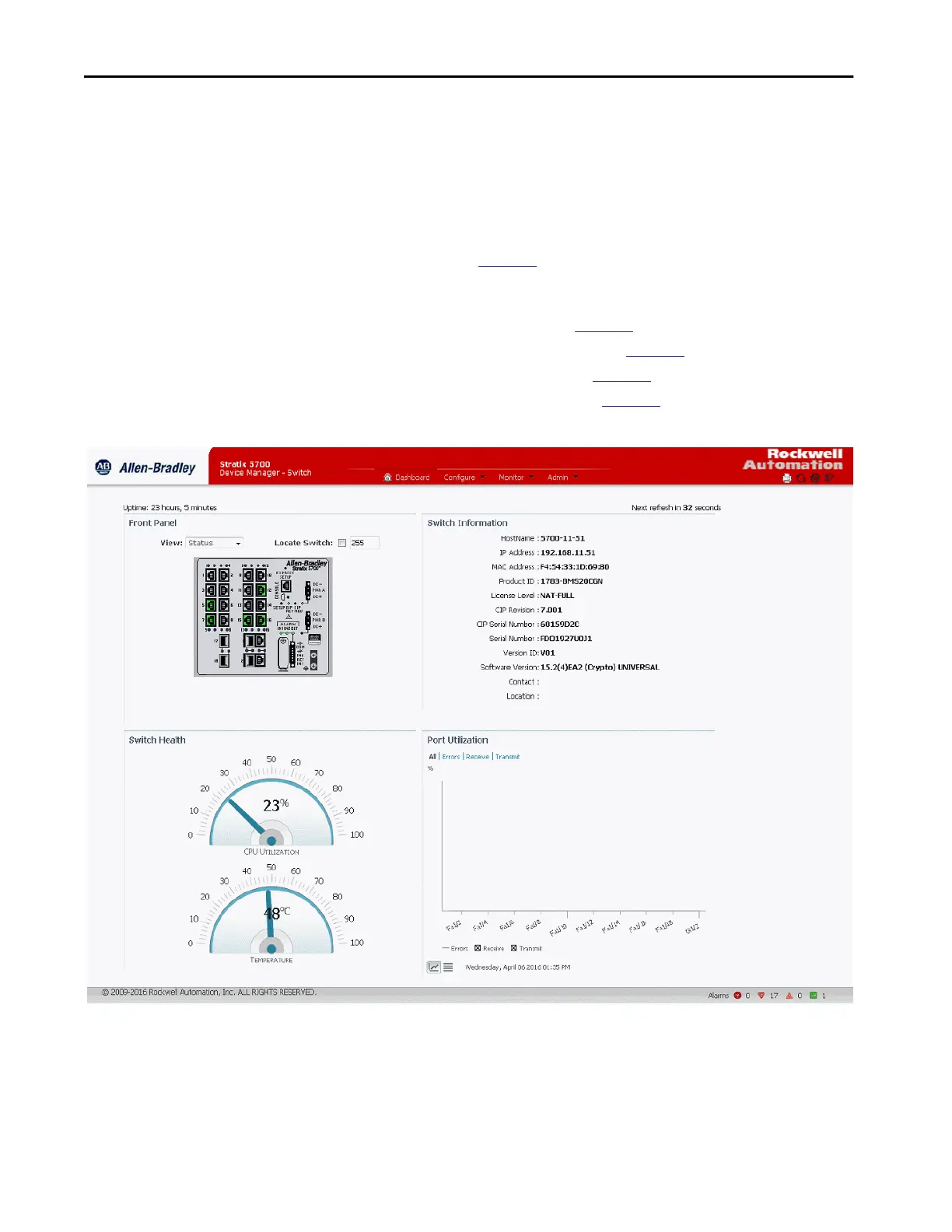

Figure 52 - Dashboard Window
