Rockwell Automation Publication 1783-UM007G-EN-P - February 2017 519
Cables and Connectors Appendix D
You can use Category 3, 4, or 5 cabling when connecting to 10BASE-T-
compatible devices. You must use Category 5 cabling when connecting to
100BASE-TX-compatible devices.

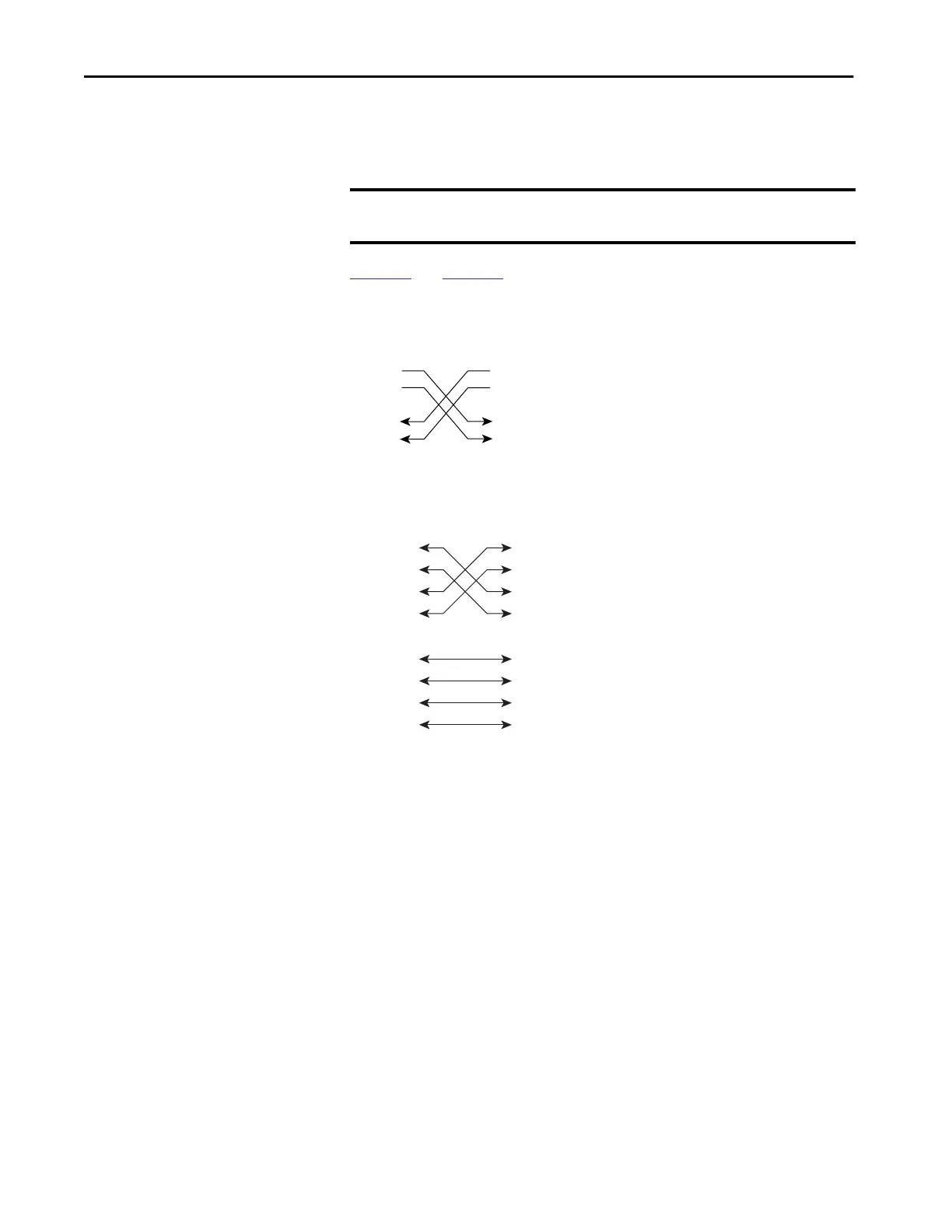

Figure 72 and Figure 73 show the cable schematics.
Figure 63 - Two Twisted-pair Crossover Cable Schematics
Figure 64 - Four Twisted-pair Crossover Cable Schematics
IMPORTANT Use a four twisted-pair, Category 5 cable when connecting to a 1000BASE-T-
compatible device or PoE port.
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+
6 TD–
1 RD+
2 RD–
H5579
1 TPO+
2 TPO-
3 TP1+
6 TP1-
1 TP0+
Switch Switch
2 TP0-
3 TP1+
6 TP1-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
4 TP2+
5 TP2-
7 TP3+
8 TP3-
