Rockwell Automation Publication 1783-UM001B-EN-P - May 2010 59
Work with RSLogix 5000 Software, Version 13 or Earlier Appendix E

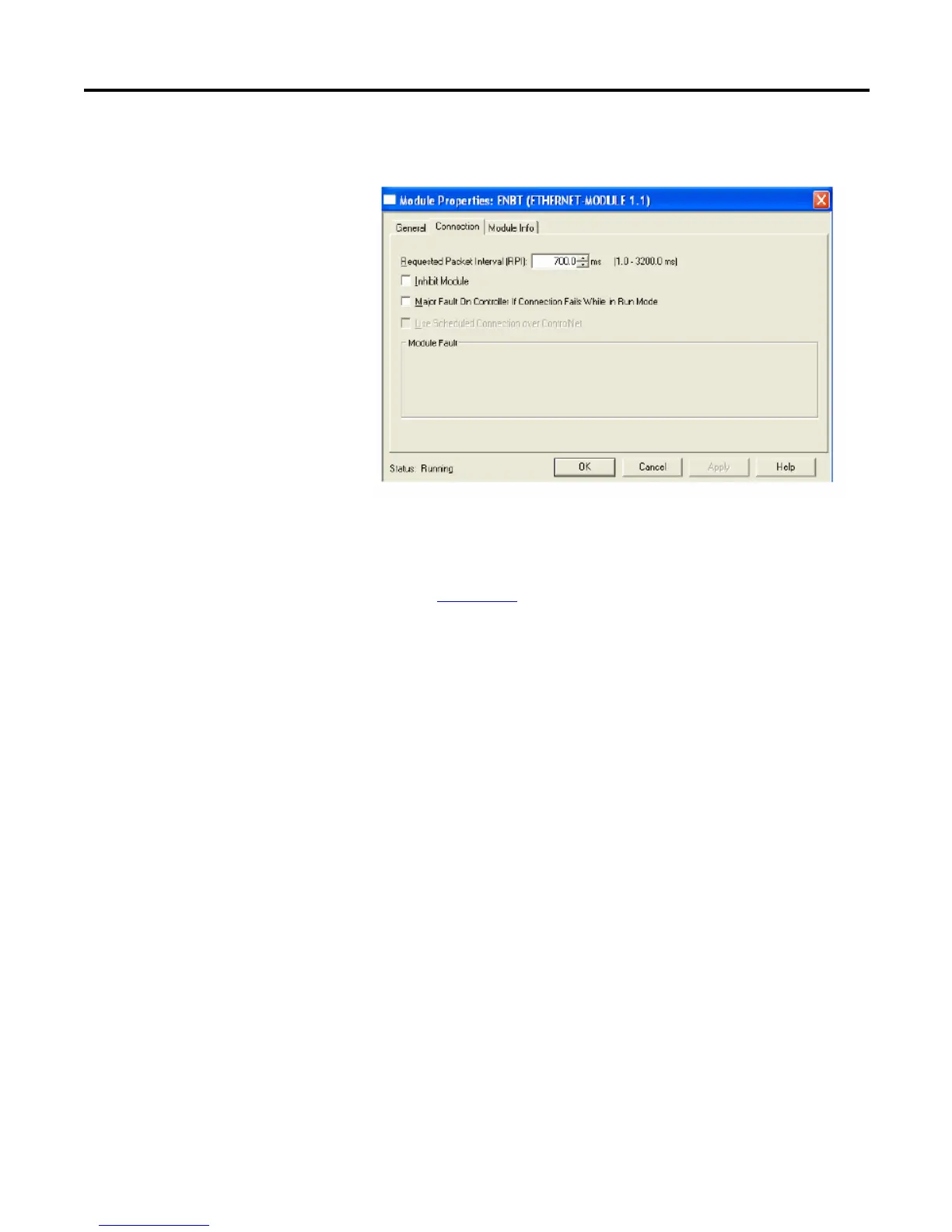

4. From the Module Properties dialog box, enter an RPI of 100…700 ms, (we
recommend 700 ms), and click OK.
You see the 1783-EMS switch under your I/O configuration.
You can now use the 1783-EMS switch in your program.
See Appendix D
for the data layout.
