NOTE: Do not lift or overbend the spring in any
direction.
1. Spring
2. Catch

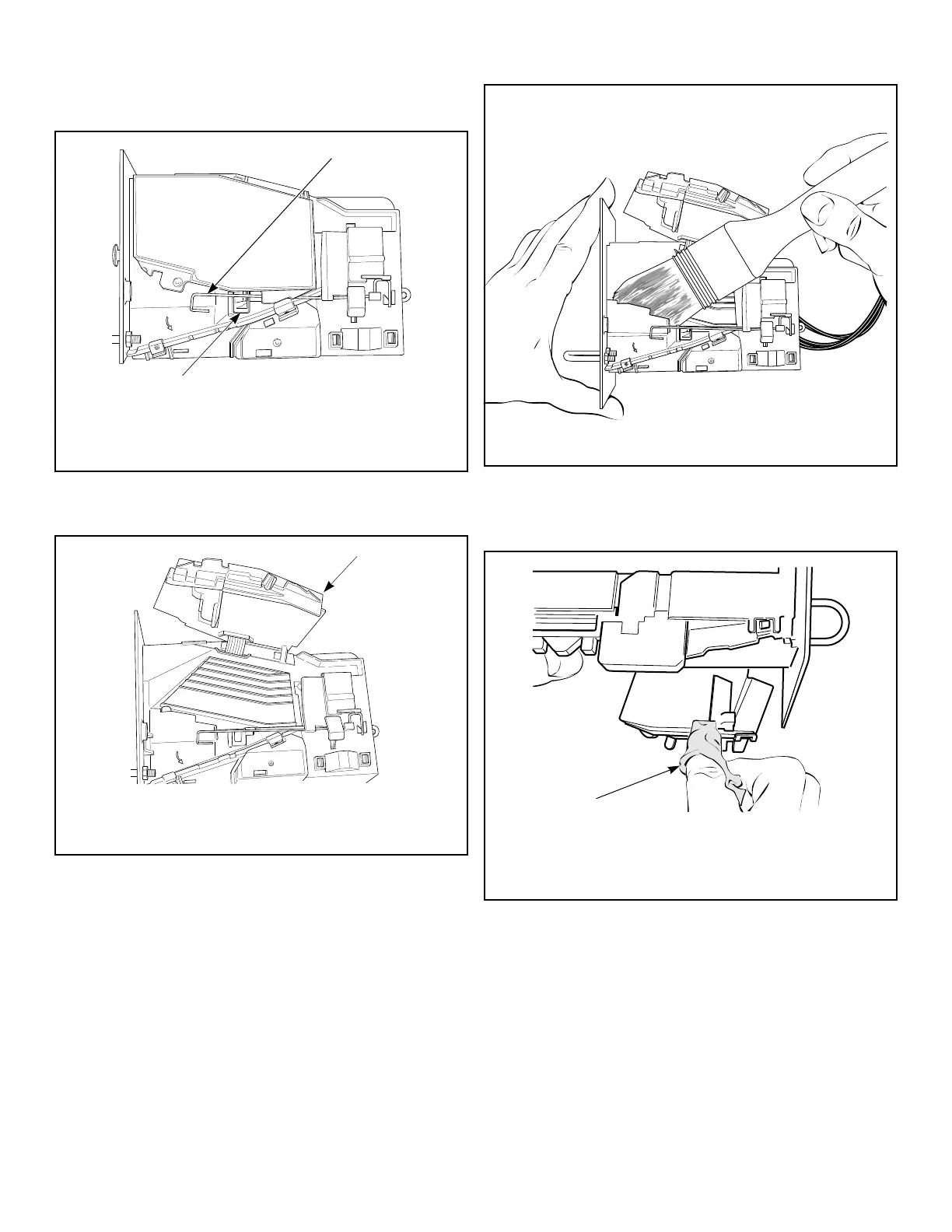

Figure 29
b. Open cover for coin drop. Refer to Figure 30 .
1. Cover
Figure 30
4. Clean the coin path with a soft brush and wipe exposed surfa-
ces with an alcohol moistened cloth. Refer to Figure 31 .
Figure 31
5. Clean residue from coin rail with an alcohol moistened cloth.
Refer to Figure 32 .
1. Alcohol Moistened Cloth
Figure 32
6. Clean light sensors with a soft brush or air spray duster. Refer
to Figure 33 .
Adjustments
©
Copyright, Alliance Laundry Systems LLC -
DO NOT COPY or TRANSMIT
68 Part No. D515519R3
