Overview
14
Description
The AT-2711 series adapters are Fiber Fast Ethernet PCI Express (PCIe)
cards developed based on Broadcom’s BCM57762 chipset. The adapter
connects a PCIe compliant server or workstation to a Fast Ethernet
network using fiber optic cabling and operates at 100 Mbps full-duplex and
half-duplex mode.
The AT-2711 series includes the following models:
AT-2711FX/SC
AT-2711FX/LC
AT-2711FX/ST
AT-2711FX/MT
AT-2711LX/SC
AT-2711LX/LC

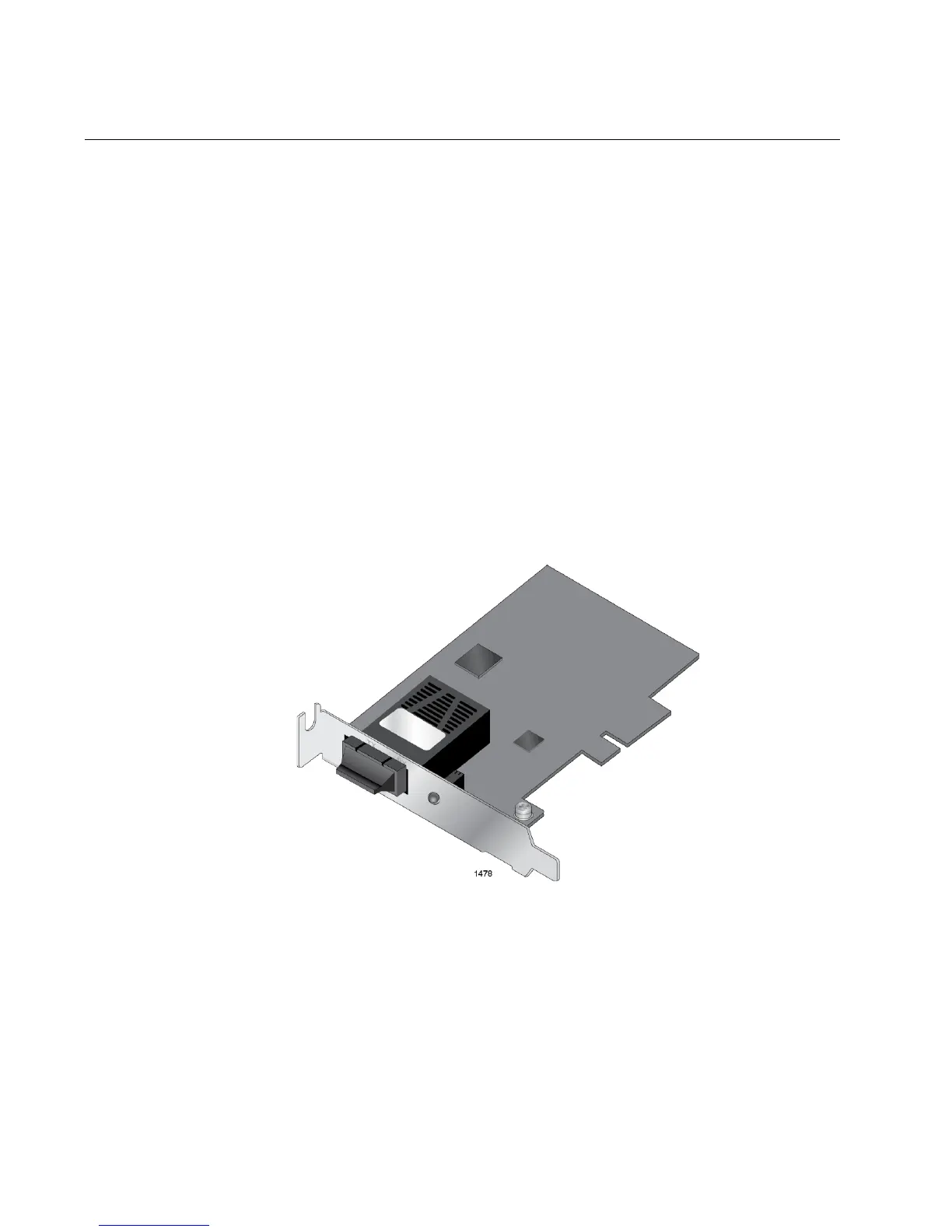

The AT-2711FX/SC adapter card is shown in Figure 1.
Figure 1. AT-2711FX/SC Adapter
The AT-2711 series adapter cards come with a 100BASE-FX or
100BASE-LX port with an SC, LC, ST, or MT adapter. The LED and
software drivers are identical for all adapter models.
SC Fiber Optic
Adapter
The AT-2711FX/SC and AT-2711LX/SC adapter cards are equipped with
a 100BASE-FX or 100BASE-LX port with the SC adapter for attaching to
the SC fiber optic connector.
