Chapter 9: Multiple Spanning Tree Protocol

132

Multiple Spanning Tree Configuration

Head2 Head3

To configure the MSTP settings, perform the following procedure:

1. From the main menu on the left side of the page, select Bridge.

The Bridge folder expands.

2. From the Bridge folder, select the Spanning Tree folder.

The Spanning Tree folder expands.

3. From the Spanning Tree folder, select the MSTP folder.

The MSTP folder expands.

4. From the MSTP folder, select MSTP.

The Multiple Spanning Tree Configuration Page is displayed. See

Figure 44 on page 132.

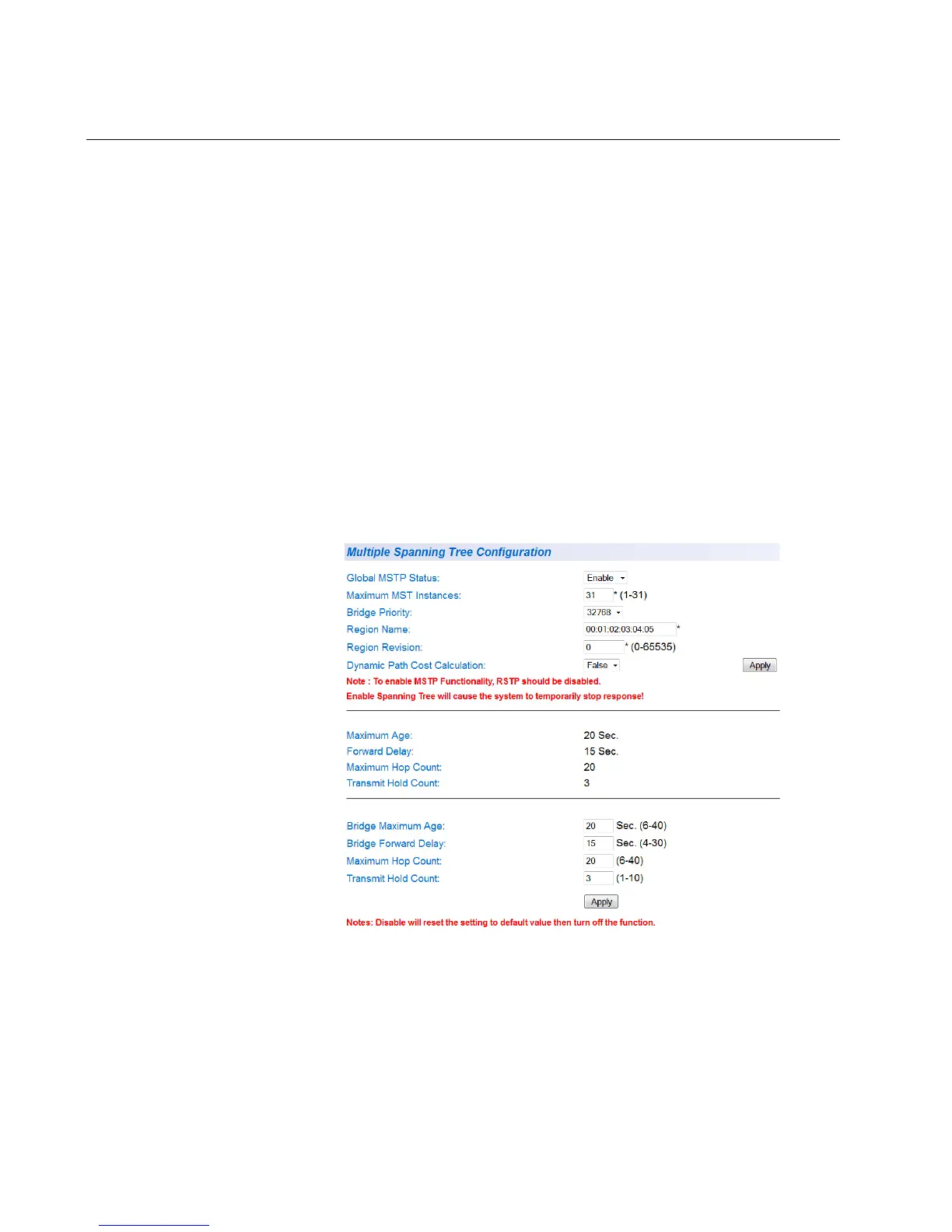

Figure 44. Multiple Spanning Tree Configuration Page

The MSTP Configuration page allows you to configure the MSTP

parameters as well as to view current settings of the feature.

 In the upper portion of the page, you can set the following

parameters:
