Alpha FXM 1100 - Page 48

%5HY

Relay & Load Shed

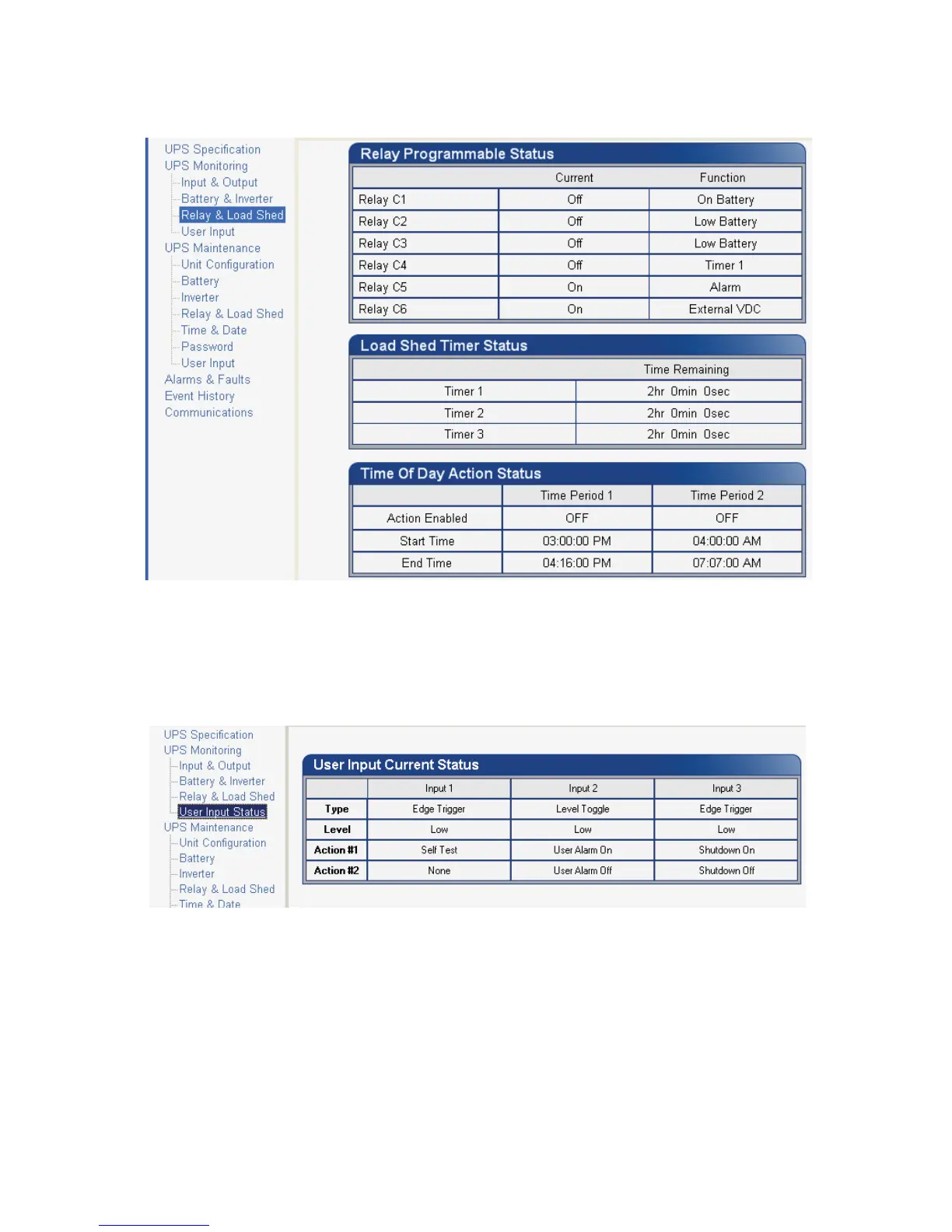

Shows how the front panel dry contacts are configured. If any relays are used for load shedding, the time setting
is shown.
)LJXUH ² 8360RQLWRULQJ5HOD\/RDG6KHGVFUHHQ
)LJXUH ² 8360RQLWRULQJ8VHU,QSXW6WDWXVVFUHHQ
User Input Status
Shows the current status of the user programmable inputs 1 to 3.
