Alpha FXM 1100 - User Input

%5HY


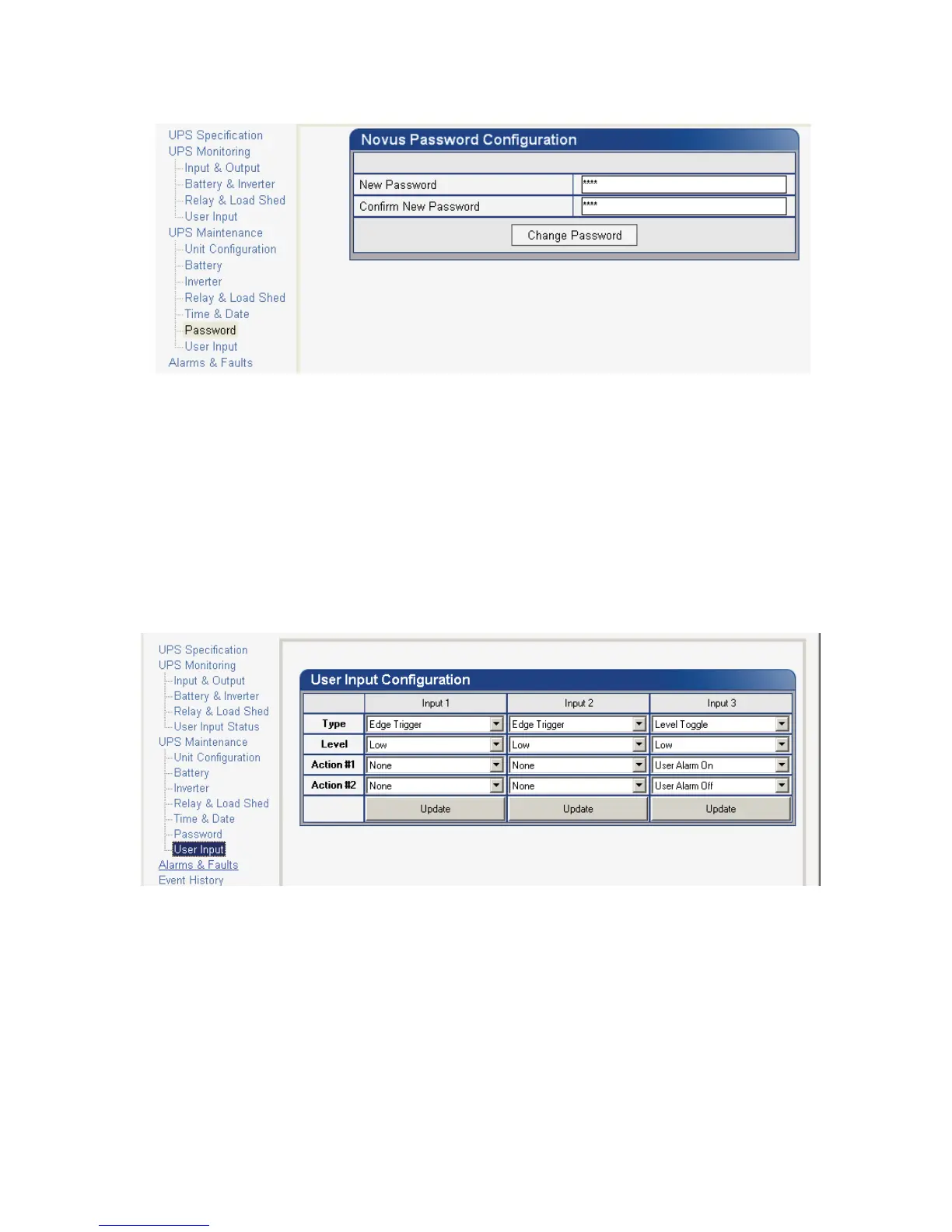

Password
Is used to set the Alpha F X M’s password. The factory set password is 1111.
)LJXUH ² 8360DLQWHQDQFH3DVVZRUGVFUHHQ
The password is limited to 4 alphanumeric characters. The software will not accept more than 4 characters.
)LJXUH ² 8360DLQWHQDQFH8VHU,QSXWVFUHHQ
Any user input can be configured to perform a certain action in response to different trigger types and logic
levels. For example, if you want the Alpha FXM to issue an intrusion alarm when the door is opened, you will need
to wire the door with a switch that triggers a user input every time the door is opened. The following procedure
describes how User Input 1 can be configured as an intrusion alarm input.
User Input
Three programmable User Inputs exist. Their functions are similar to the Dry Contact relays. Supported functions
include: (a) Shutdown, (b) User Alarm and (c) Self Test.
