1.3 System Description
This section introduces the Alphatron AlphaConnect system, the telephones and communication stations.
1.3.1 System Overview
The Alphatron AlphaConnect system is always configured for a specific vessel. Figure 1: Schematic system overview on
page 14 shows a schematic system overview of a typical AlphaConnect system, its components and communication
between the components.

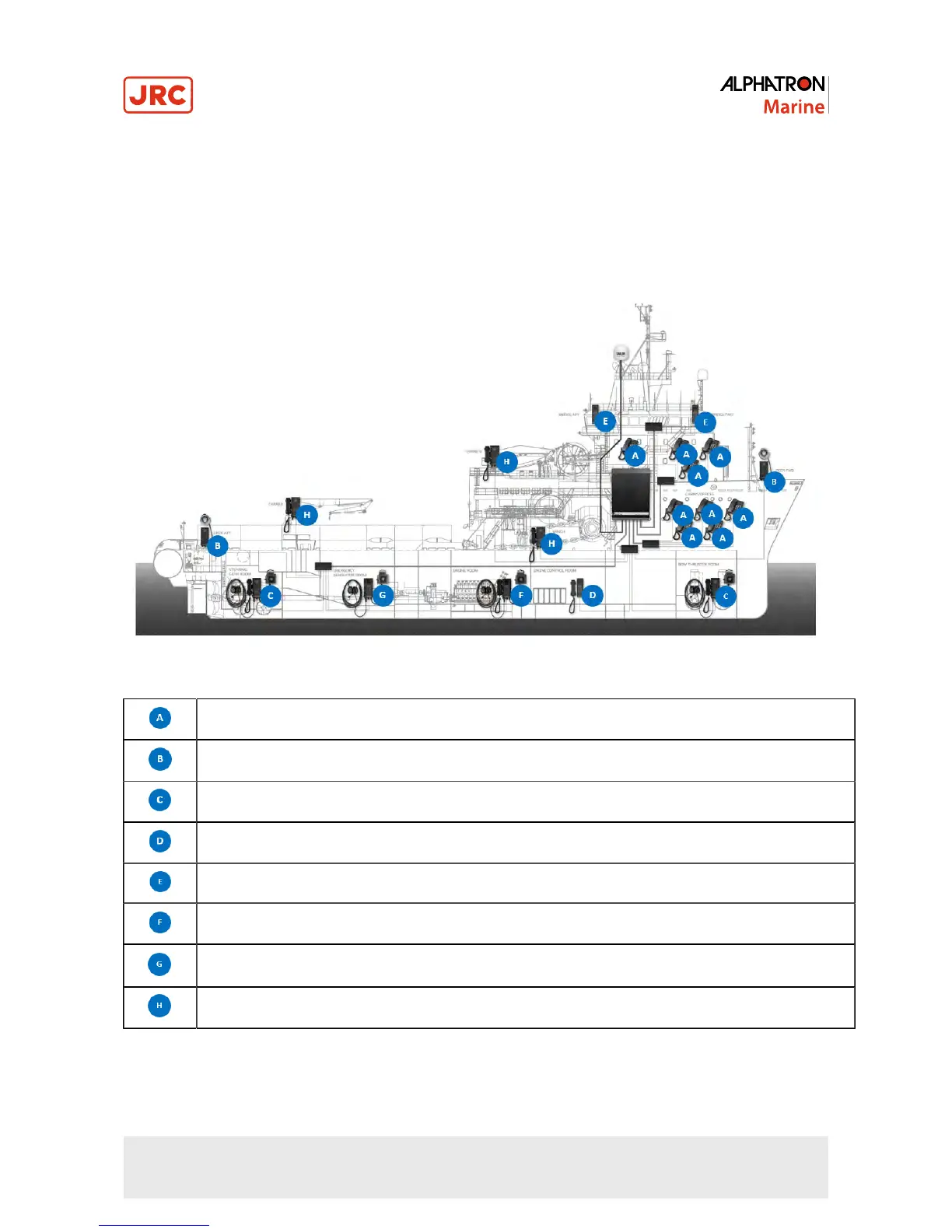

Figure 1: Schematic system overview
AlphaPhone 100AS (Cabins/offices)
AlphaConnect P211 + loudhailer (Deck FWD)
AlphaConnect P220 + handset + headset + loudhailer (Bow thruster room / Steering gear room)
AlphaConnect P411 + handset (Engine control room)
AlphaConnect P411 (Bridge FWD / Bridge AFT)
AlphaConnect P421 + handset + headset + loudhailer (Engine room)
AlphaConnect P421 + headset + loudhailer (Emergency generator room)
AlphaConnect P220 + handset (Crane 1 / Crane 2 / Winch)
This document describes each telephone and communication station available.
