Maintenance
Electrical contact densimeter threshold in sp ectio n
L51--107EN/01
8/8
06--2003
E ALSTOM

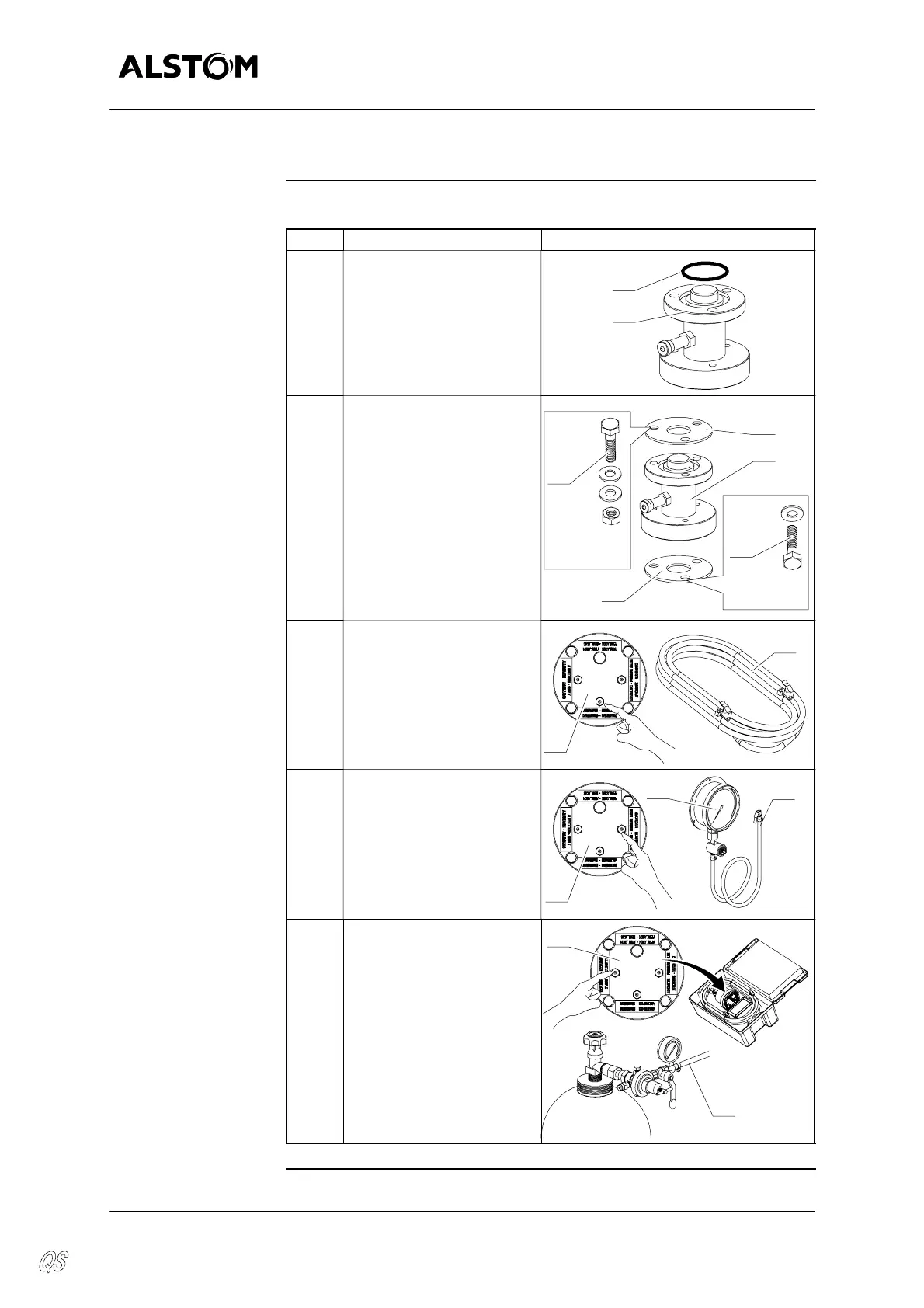

Putting away the control tool
Process
The table below gives the steps of putting away the control tool :
Step Action Diagram
1 Take precautions to remove
the seal (16) from the con-
nection valve block (5) and
put it away into the “SET OF
SEALS” box of the densi-
meter threshold inspection
case.
16
5
2 Install the protective plates
(9) and (10) on the connec-
tion valve block (5), using
screws (14) and (15).
Put away the connection
valve block (5) into the
densimeter threshold
inspection case.
x3
14
HM6--20
0,7 daN.m
x3
15
HM6--20
0,7 daN.m
9
5
10
3 Disconnect the pipe (6)
from the “DENSIMETER”
valve of the threshold
inspection tank (4) and put
it away into the densimeter
threshold inspection case.
6
4
4 Disconnect the pipe (12)
from the the “PRESSURE
GAUGE” valve of the
threshold inspection tank
(4).
12
4
11
5 Disconnect the pipe (23)
from the “SUPPLY” valve of
the threshold inspection
tank (4).
Put away the threshold
inspection tank (4) into the
densimeter threshold
inspection case.
23
4
SF
6
