Maintenance
Replacing the operating device FK3--1
L51--800EN/04
5/12
04--2004
E ALSTOM

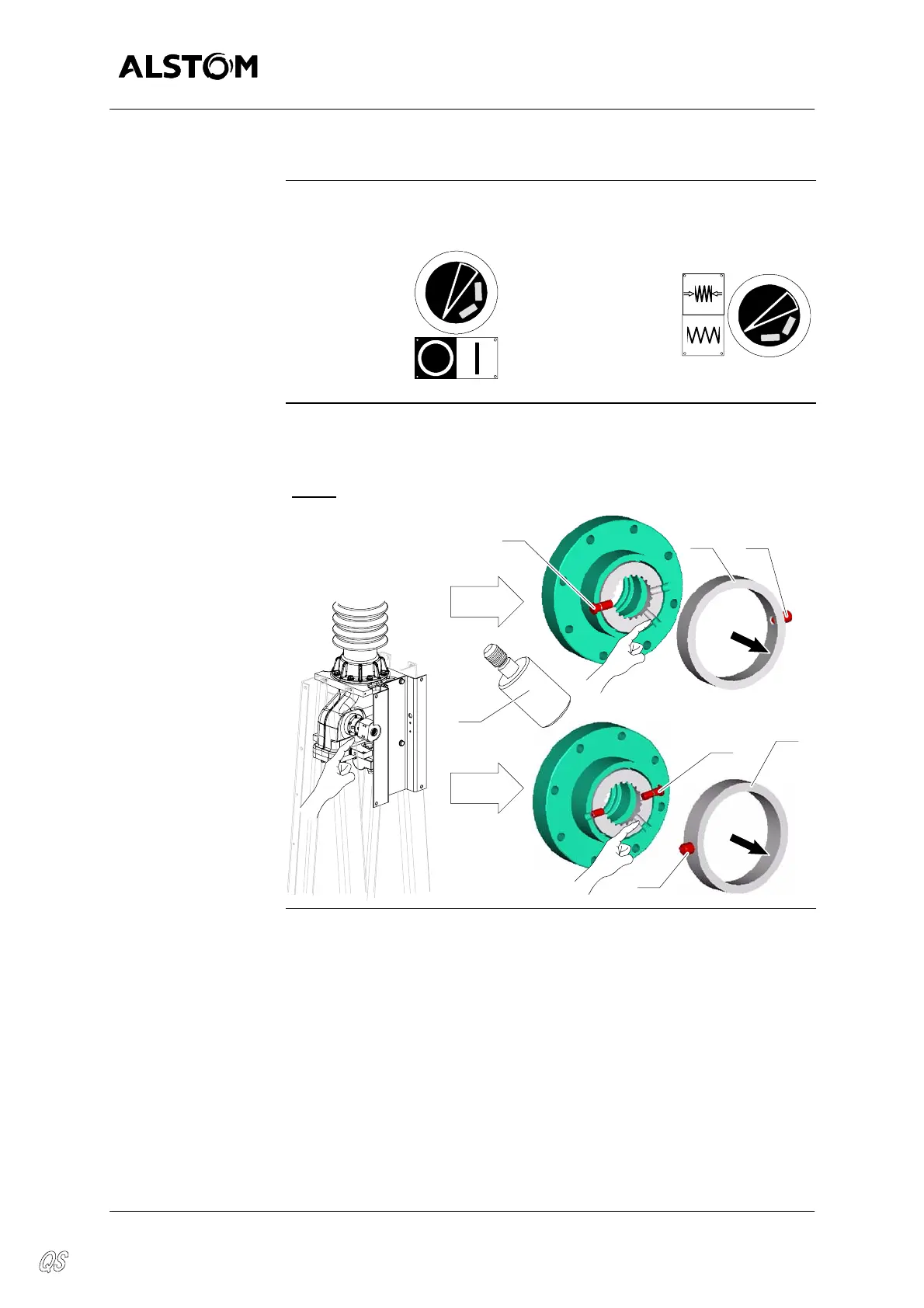

Holdin g of the coupling cylind e r
Optical signalizations
Check the position of operating device optical signalization :
Circuit--breaker
Open
Closing spring
Released
Stop ring
If the pole is equipped with a stop ring (5) of the “fusible” pin (9), release the
screw (6) and move the stop ring (5) in order to reach the positioning hole of
the blocking tool (4).
NOTE
: Two possible cases (A or B).
5
6
6
5
9
9
A
B
4
Continued on next page.
