Alstom GL314 - Page 132

Maintenance
Replacing the operating device FK3--1
L51--800EN/04
6/12
04--2004
E ALSTOM
Holdin g of the coupling cylind e r
Blocking tool

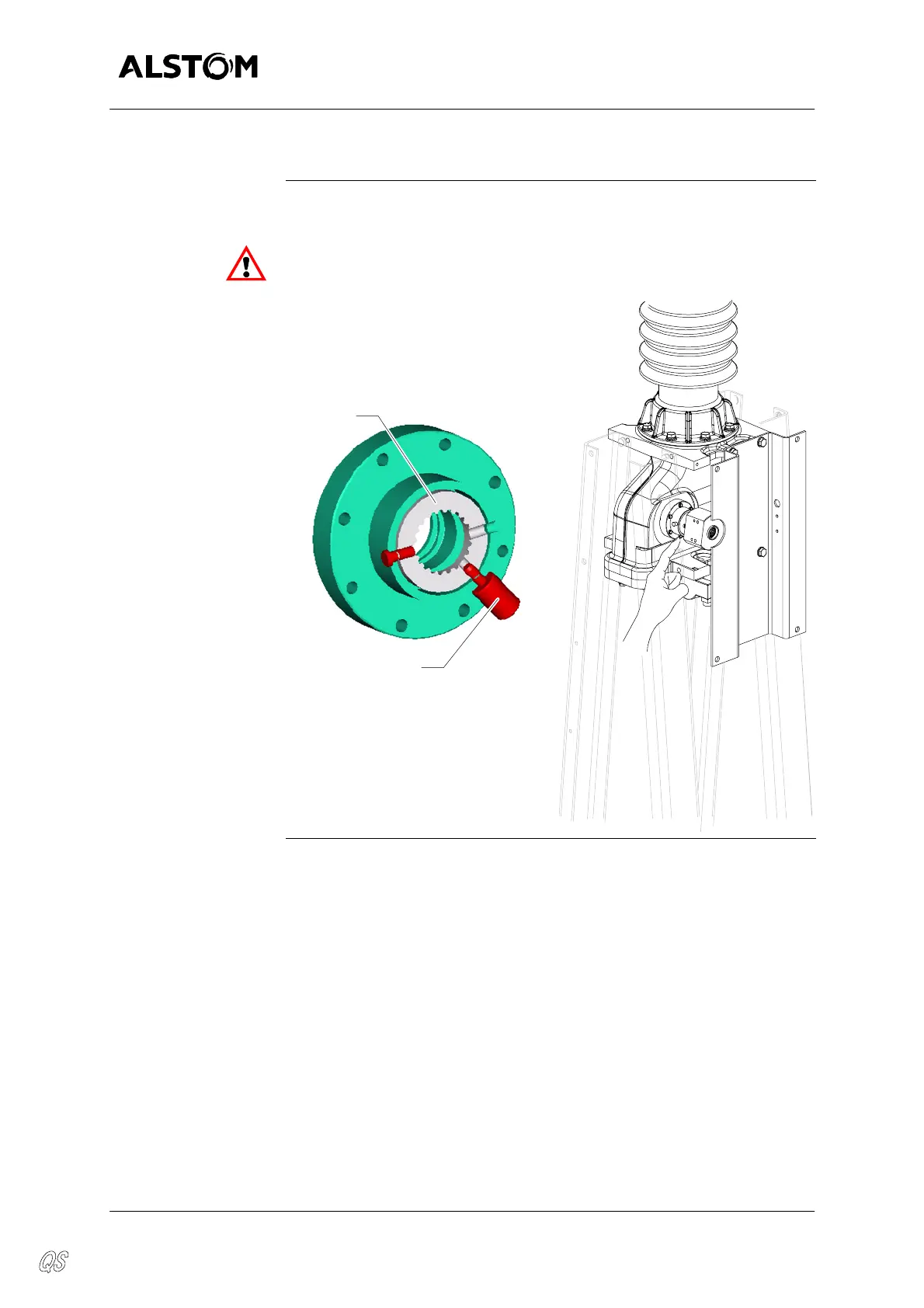

Screw the blocking tool (4) into the free hole allowed on the cylinder (12).
Thisblockingtoolisremoved onceremovingandcouplingoftheoper-
ating device is finished.
4
12
