Packaging -- Shipping and storage
Packaging -- Identification -- Storage
L22--008EN/01
2/4
09--2003
E ALSTOM

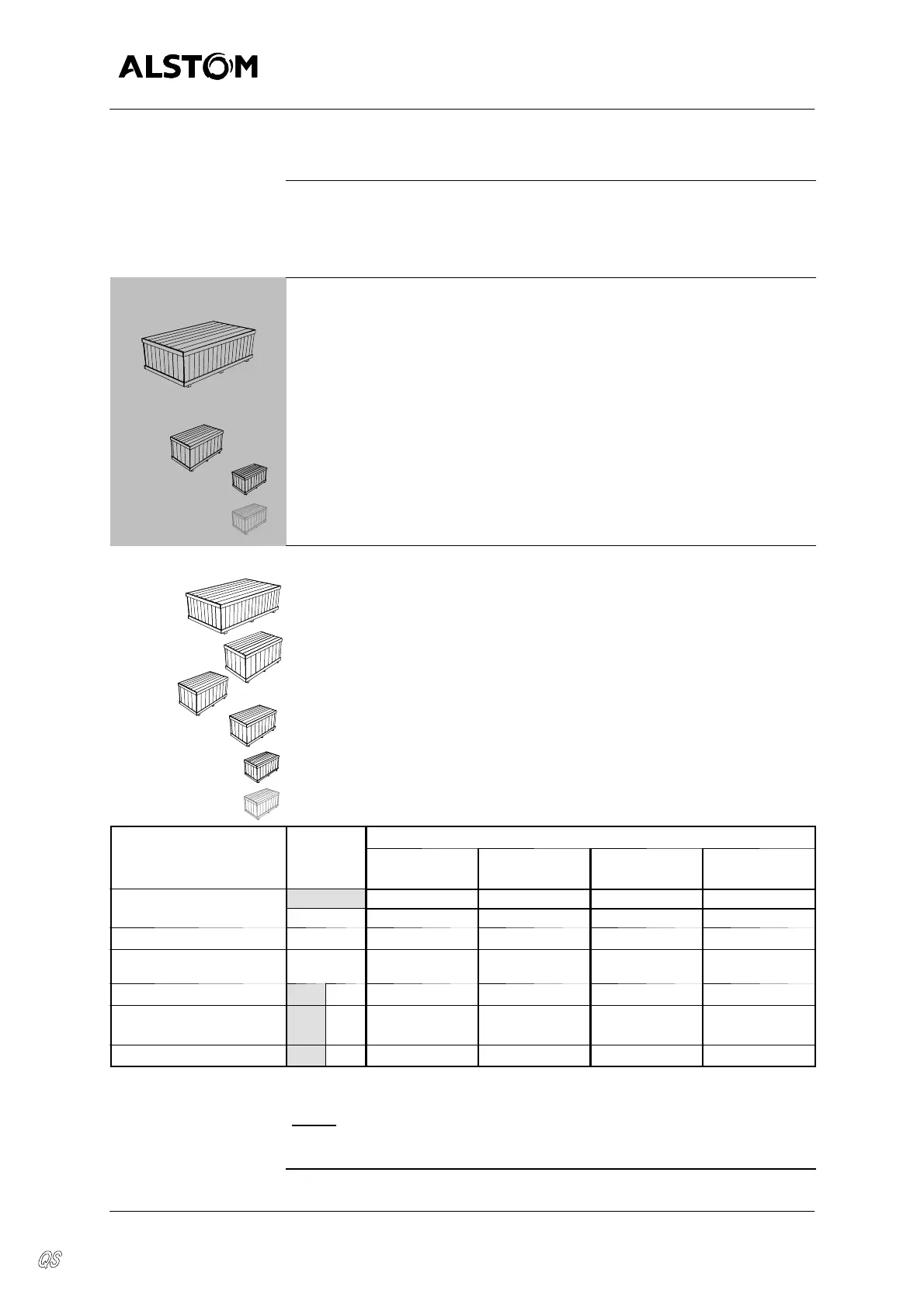

Packaging
Introduction
For transport, the different parts of the apparatus are divided--up between
severalcases. The number of cases andtheir contents depend of dimensions
of the pole of the circuit breaker.
Example 1
D A main case containing :
-- The poles.
-- The operatingdevices vacuum--wrapped in a protectivebag containingdes-
iccants.
-- The different frame parts if the latter is supplied by ALSTOM.
-- The marshalling cubicle.
-- Connection cables, if supplied by ALSTOM.
D The SF
6
bottle(s) or depending of the apparatus SF
6
bottle(s) and CF
4
bottle(s).
D A case containing assembly products (grease, oil, etc.) required for instal-
lation.
D A case containing the accessories : spare parts ...
Example 2
D A main case containing :
-- The poles.
-- The different frame parts if the latter is supplied by ALSTOM.
D A case containing the operating devices. The operating devices are vacu-
um--wrapped in a protective bag containing desiccants.
D A case containing the marshalling cubicle.
D The SF
6
bottle(s) or depending of the apparatus SF
6
bottle(s) and CF
4
bottle(s).
D A case containing assembly products (grease, oil, etc.) required for instal-
lation.
D A case containing the accessories : spare parts ...
GL314
Packaging case type Example
Length
cm
Width
cm
Height
cm
Gross weight
kg
P
o
l
e
s
1
537 -- 600 219 113
P
o
l
es
2
580 -- 625 183 113
Operating devices
2 251 78 113
Marshalling cubicle *
2
178
111
72
80
113
190
SF
6
gas 1
2 188 58 65
Necessities (products)
for assembly
1
2 60 60 70
Accessories * 1
2 80 60 70
* Depending of the apparatus
NOTE
: the values in the above table are given as an indication so
that an appropriate means of lifting can be envisaged.
