Installation
Installing the op erating device
L31--789EN/01
3/8
01--2004
E ALSTOM
Positioning the pole operating shaft
“Fusible” pin

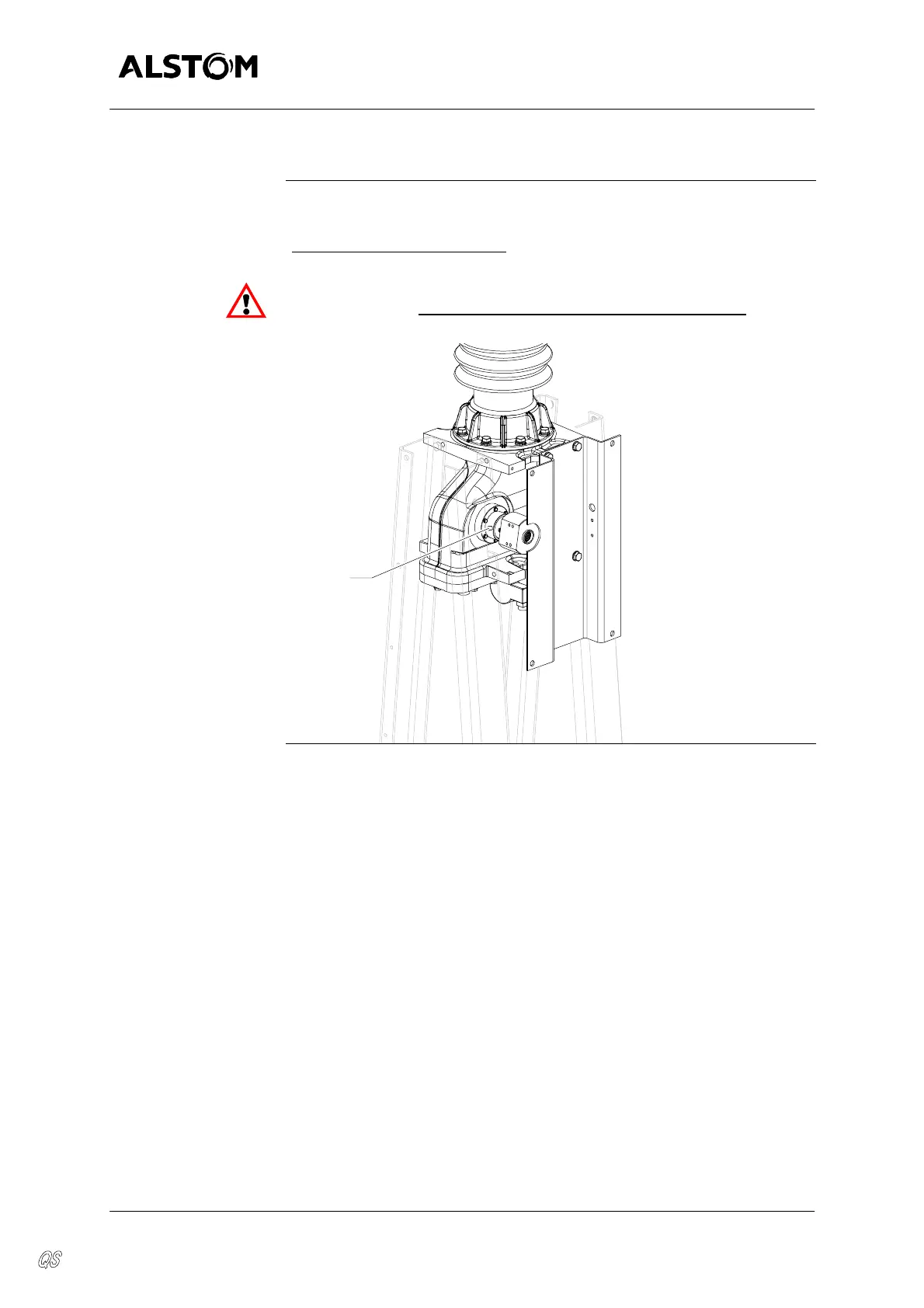

The pole is equipped -- for transport purposes and installing the operating
device -- with a positioning “fusible” pin (4) of the pole operating shaft.
Check the presence of this
pin.
This pinmust remain inplaceduringalltheoperationof assemblyof theoper-
ating mechanism, IT IS STRICTLY FORBIDDEN TO REMOVE IT
.
