40 | www.alstor.se
Instruction manual
SERVICE AND MAINTENANCE
850/850 H

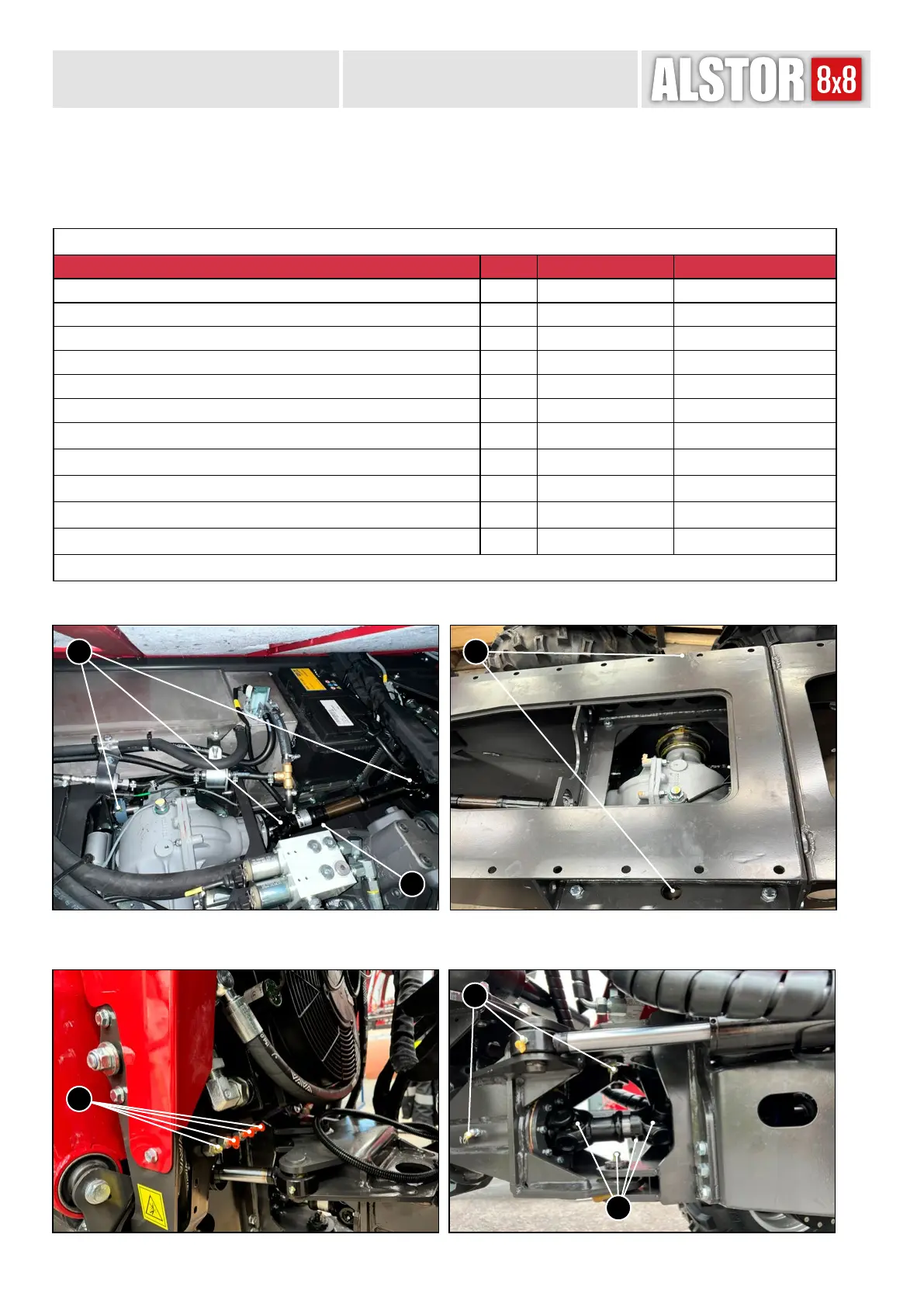

3.6 LUBRICATION CHART, 850/850 H
Always replace clogged or defective grease nipples. Always remove the load from joints before lubrication.
Use lithium-saponied grease with an NLGI grade 2 EP additive
LUBRICATION CHART
Lubrication site Number Lubricant Interval (operating hours)
1. Front under cabin 3 Grease, see above 400 h
2. Bogie rocker rear section, left and right 2 Grease, see above 50 h
3. Bogie front section and steering piston in front section 4 Grease, see above 50 h
4. Centre joint and transmission shaft, left and right 8 Grease, see above 50 h
5. Rear section under inspection cover (model 850) 2 Grease, see above 400 h
6. Rear section under inspection cover (model 850) 1 Grease, see above 400 h
7. Left and right outriggers 3+3 Grease, see above 50 h
8. Tilt piston cylinder, left and right 4 Grease, see above 50 h
9. Bogie rocker rear section, left and right 2 Grease, see above 50 h
10. Tilt axis left and right 2 Grease, see above 50 h
11. Universal shaft *Requires disassembly of weights. 3 Grease, see above 400 h
×. Should not be lubricated
1. Front under cabin
1
3. Bogie front section and steering piston in front section
4. Grease points in the centre joint and on the transmission shaft.
Note: Grease points are on both the left and right side.
3
4
×
4
2. Bogie rocker rear section, left and right
2
