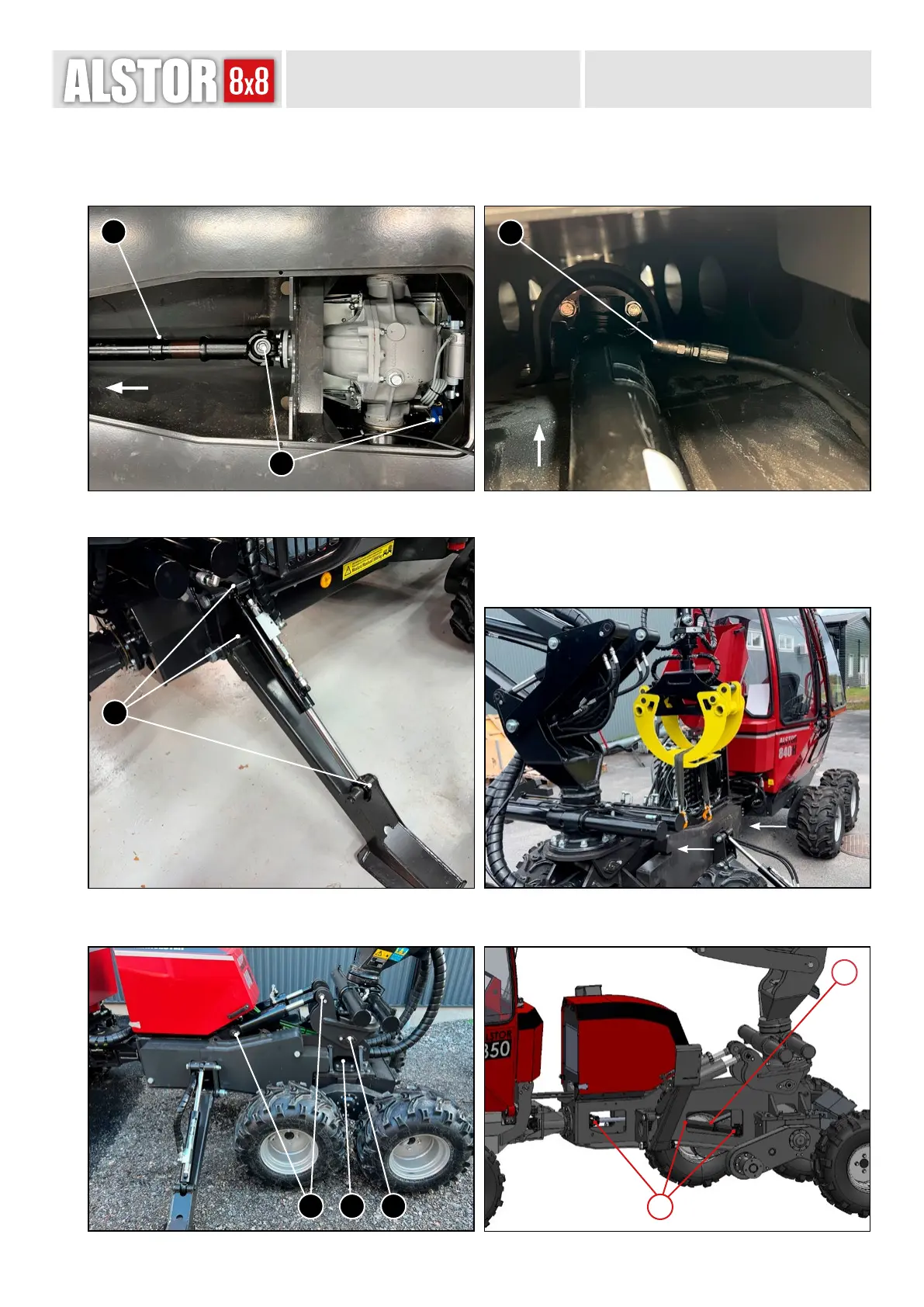

* Loosen the two large bolts holding the weights. Suspend using
arated lifting strap. Safely remove the weights one by one.
See the example in picture. To reassemble, lift the weights back
oneby one and screw the bolts back.
11
11. Universal shaft centre (model 850 H)
8 9 10
8. Tilt piston cylinder left and right, 9. Bogie rocker rear section,
leftand right, 10. Tilt axis left and right
5. Undo the rear section inspection cover to gain access to the area.
Grease points for the rear section under the inspection cover 5. and 6.
5
6. NOTE: Front universal joint inside the cover.
6
×
7. Left and right outriggers
7
×
