Mounting Types

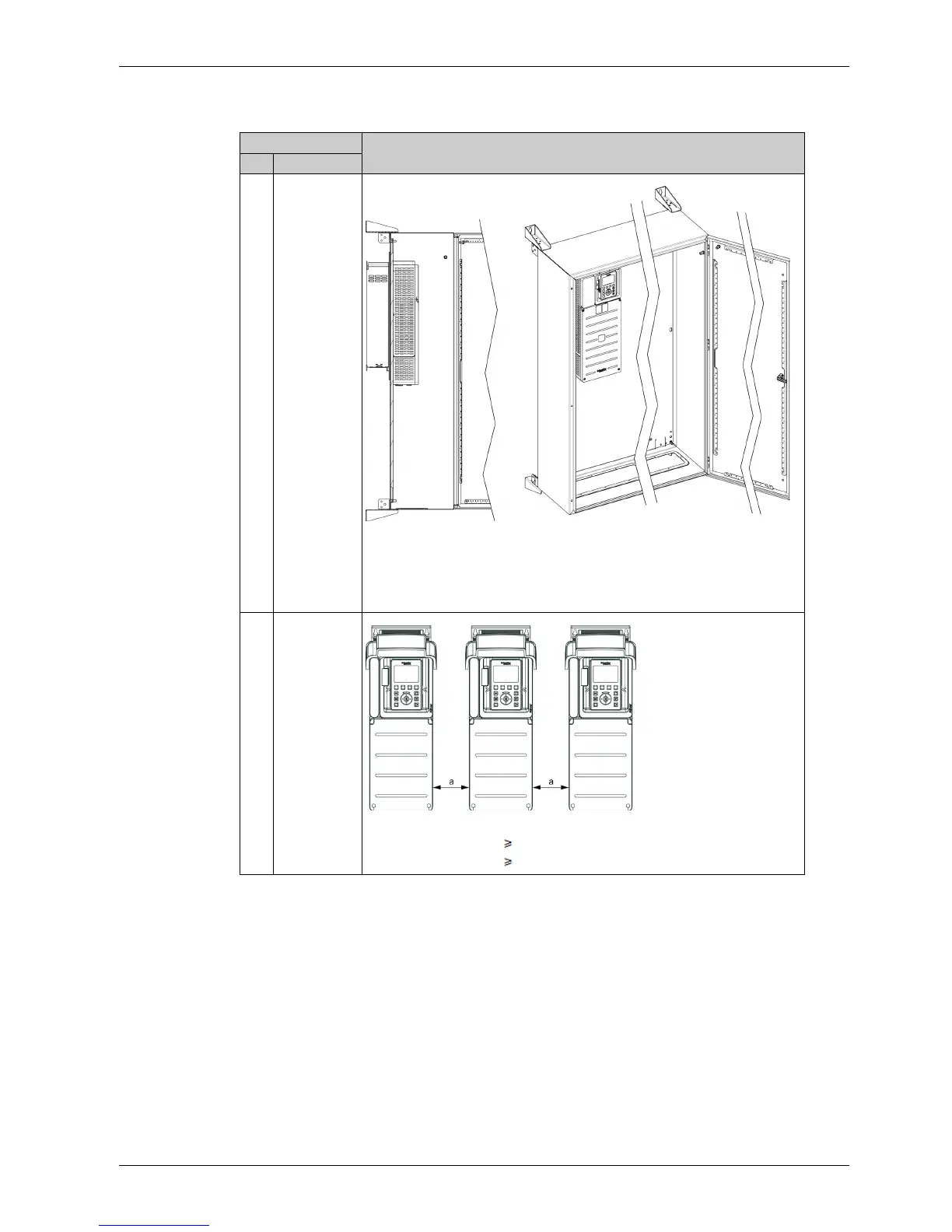

This table shows the possible mounting types and the resulting IP degree of protection.
Mounting Figure
No Type / IP
Enclosed with
flush-mounting
kit
This mounting type requires the dedicated mounting kit available on www.schneider-
electric.com
NOTE: Use ProClima software to support you to integrate Altivar Process in an
enclosure.
A Individual IP21
Frame sizes 1, 2 and 3: a 100 mm (3.9 in.)
Frame sizes 4, 5 and 6: a 110 mm (4.33 in.)
