Clearances and Mounting Position

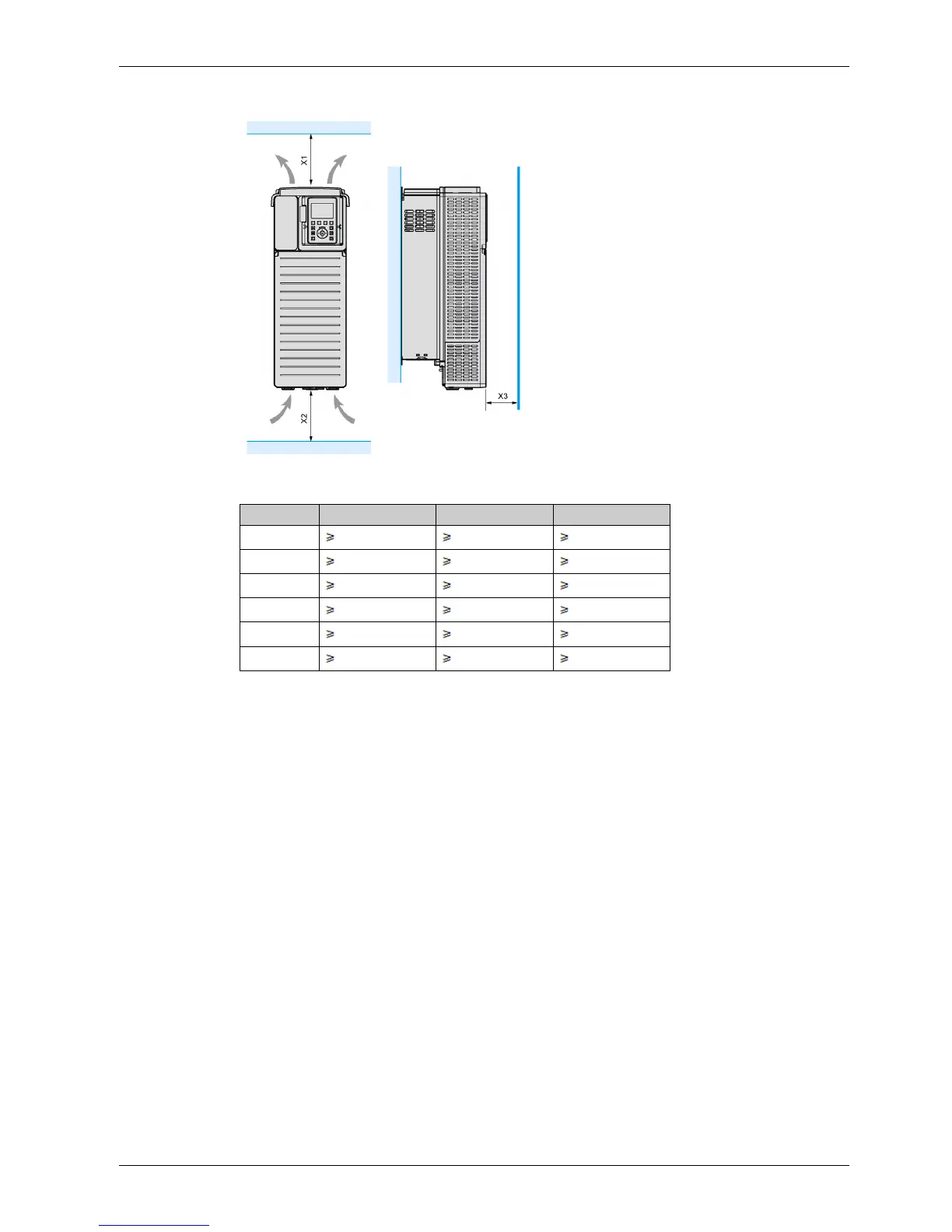

Minimum clearance regarding the drive frame size
X1: free space in top of the drive
X2: free space in bottom of the drive
X3: free space in front of the drive
General Mounting Instructions
z Mount the device in a vertical position (±10°). This is required for cooling the device.
z Attach it on the mounting surface in compliance with standards, using 4 screws with captive washer
according to the table given in Mounting Procedures.
z The use of washers is required with all mounting screws.
z Tighten the fixation screws with respect to the tightening torques given in this manual.
z Do not mount the device close to heat sources.
z Avoid heat accumulations.
z Adhere to the minimum installation distances for required cooling.
z Do not mount the device on flammable materials.
Frame Size X1 X2 X3
1
100 mm (3.94 in.) 100 mm (3.94 in.) 10 mm (0.39 in.)
2
100 mm (3.94 in.) 100 mm (3.94 in.) 10 mm (0.39 in.)
3
100 mm (3.94 in.) 100 mm (3.94 in.) 10 mm (0.39 in.)
4
100 mm (3.94 in.) 100 mm (3.94 in.) 10 mm (0.39 in.)
5
100 mm (3.94 in.) 100 mm (3.94 in.) 10 mm (0.39 in.)
6
250 mm (10 in.) 250 mm (10 in.) 100 mm (3.94 in.)
