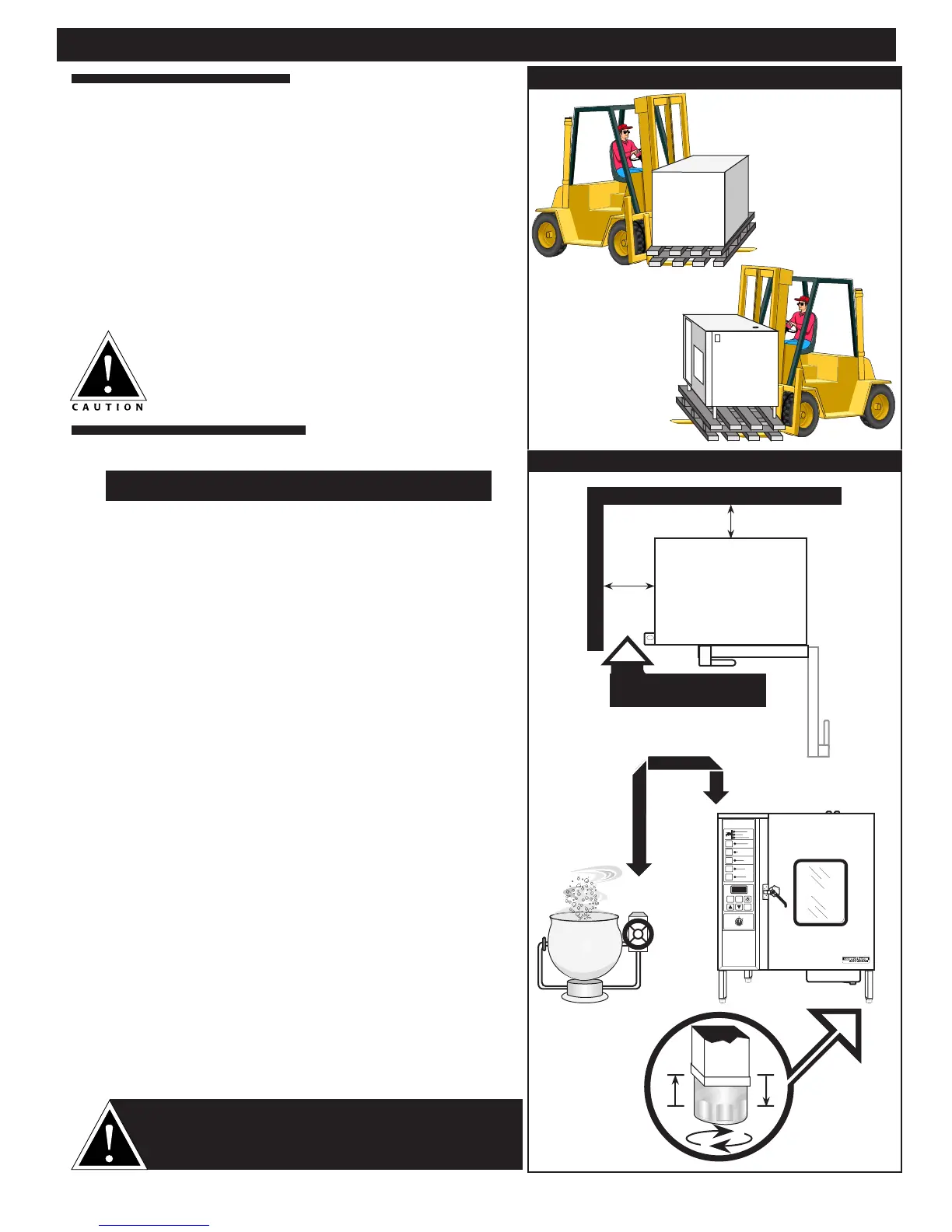

TRANSPORTATION
Upon receipt of the Combitherm Combination Oven-
Steamer, check the exterior of the shipping crate for any
physical damage that could result in damage to the
contents. If the oven was not received from the carrier in
an upright position, there is a stronger possibility of
concealed damage. Uncrate the unit carefully and inspect
for any transit damage. Immediately report any damage to
the delivering freight carrier.
The oven must remain on the pallet while being moved to
the installation site by fork-lift or pallet lift truck.
When removing the oven from the pallet to the
installation site, DO NOT LIFT at the condenser
housing. Care should also be used to prevent
damage to the drip-tray hanger permanently
mounted at the bottom of the oven door.
INSTALLATION SITE
HOOD INSTALLATION IS REQUIRED
In order to ensure proper ventilation, a minimum distance
of at least 6” (152mm) must be kept from the control panel
side [left] of the oven and any adjoining surfaces. In
addition to ventilation requirements, additional clearance
is needed for service access. A minimum distance of
18-inches (457mm) is strongly recommended.
Allow a minimum of 4” (102mm) from the right side of the
oven to allow the door to open to at least a 90° angle.
Fully opened, the door will extend up to a 225° angle. If
the oven is furnished with the retractable door option,
allow a minimum clearance of 6-1/2” (16cm).
Allow a minimum clearance of 4” (102mm) from the back
of the oven for plumbing connections.
Allow adequate clearance for the steam vent(s) located at
the top [right-rear] of the oven.
Do not install the oven adjacent to heat producing
equipment such as fryers, broilers, etc. Minimum
clearance recommended: 20” (50cm).
Place the Combitherm Oven on a stable, LEVEL horizontal
surface. For counter-top models, the oven stand must be
level. In addition, the overall height of the oven should
be positioned so the operating controls and shelves may be
conveniently reached from the front. Counter-top
installations must maintain 4" (102mm) minimum
clearance from surface by means of a Leg Extension
Assembly.
ALL INSTALLATION INSTRUCTIONS AND
REQUIREMENTS MUST BE STRICTLY OBSERVED.
IMPROPER CONNECTION OF THIS APPLIANCE
NULLIFIES ALL WARRANTIES.
COMBITHERM INSTALLATION AND MAINTENANCE MANUAL #6004/18
PG. 1
COMBITHERM® INSTALLATION and SPECIFICATIONS
