COMBITHERM INSTALLATION AND MAINTENANCE MANUAL #6004/18
PG. 6

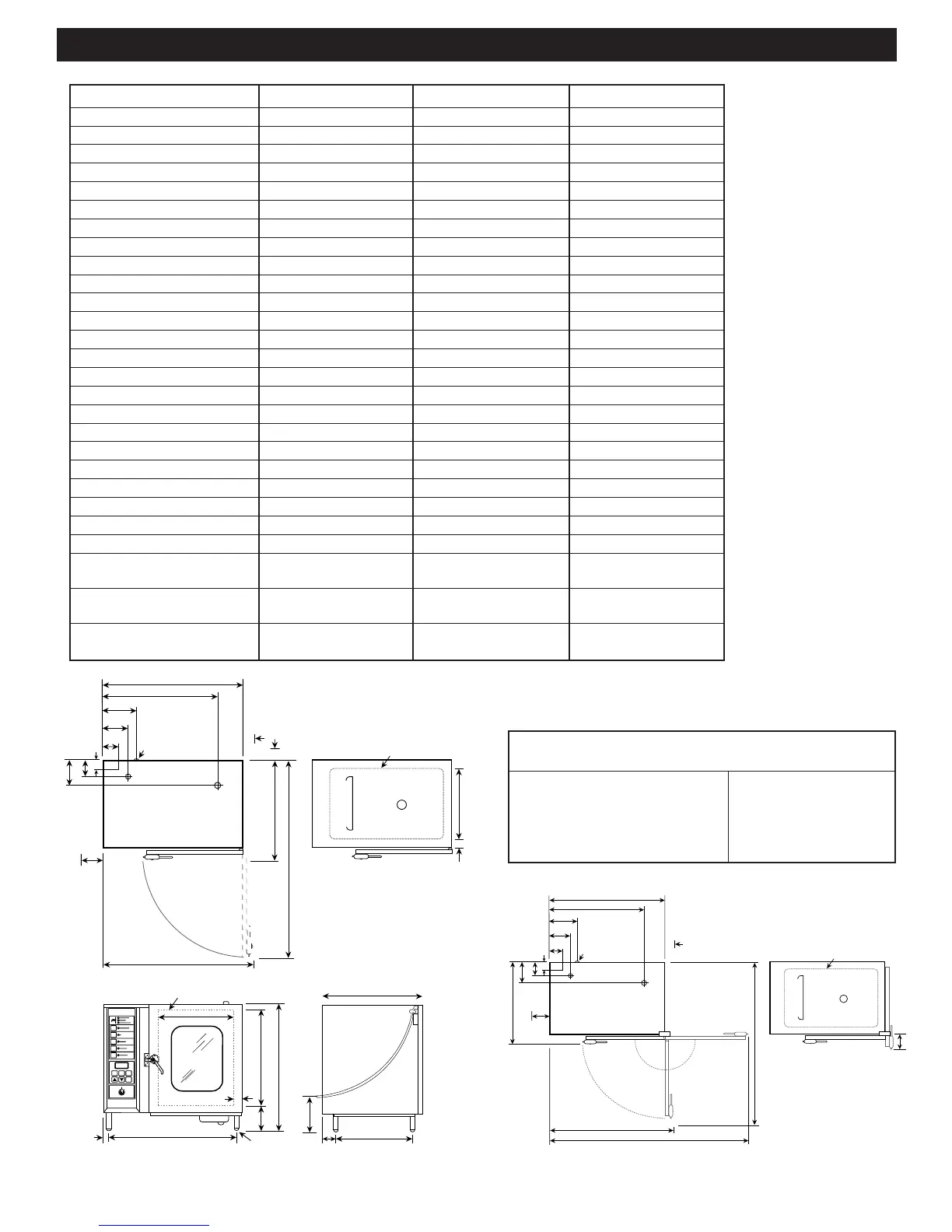

COMBITHERM® INSTALLATION and SPECIFICATIONS
Optional Recessed Door
Dimensions 7•14/10•18ec
L2 Width with door open 42-7/16" (1077mm)
M2 Depth with door open 67-7/16" (1712mm)
Y Unit width w/door open 73-9/16" (1868mm)
Z Protrudence forward 1-9/16" (40mm)
with door open
CLEARANCE
100mm
CLEARANCE
165mm
M
L2
J
D
H
AW1
F
B
KW1
E1
E2
K
E
G
A
OVEN CHAMBER
90° angle
Y
180° angle
Z
Dimensions 7•14 10•18ec 20•20ec
A Unit depth 40-3/16" (1020mm) 40-3/16" (1020mm) 45-7/16" (1153mm)
B Unit width 40-5/16" (1030mm) 40-5/16" (1030mm) 43-7/16" (1100mm)
C Unit height 32-1/2" (825mm) 44" (1118mm) 74-13/16" (1900mm)
D Electrical connection (E1) 4" (100mm) 4" (100mm) 4-5/16" 125mm)
E Electrical connection (E1) 13" (330mm) 13" (330mm) 9-13/16" (250mm)
F Drain (AW1) 24-7/16" (620mm) 24-7/16" (620mm) 31-1/2(800mm)
G Drain (AW1) 25/32" (20mm) 25/32" (20mm)
H Cold water con. (KW1) 2-3/8" (60mm) 2-3/8" (60mm) 3-15/16" (100mm)
I Cold water con. (KW1) 8-11/16" (220mm) 8-11/16" (220mm)
J Equipotential earth (E2) 6" (153mm) 6" (153mm)
K Equipotential earth (E2) 12-3/16" (310mm) 12-3/16" (310mm)
L Width with door open 43-5/8" (1108mm) 45-1/4" (1150mm) 47-11/16" (1211mm)
M Depth with door open 65-3/4" (1670mm) 66-3/8" (1685mm) 74-3/4" (1898mm)
N Foot position 9" (228mm) 9" (228mm)
O Foot position 25-19/32" (650mm) 25-19/32" (650mm)
P Foot position 3-11/16" (93mm) 3-11/16" (93mm)
Q Foot position 33-1/16" (840mm) 33-1/16" (840mm) 41" (1041mm)
R Diameter of footprint 1-9/16" (40mm) 1-9/16" (40mm)
S Oven chamber width 23-1/2" (596mm) 23-1/2" (596mm) 26-1/4" (667mm)
T Oven chamber depth 28-7/16" (722mm) 28-7/16" (722mm) 32-11/16" 830mm)
U Oven chamber height 20-5/16" (515mm) 31-13/16" (808mm) 60-1/4" (1530mm)
V Width hinge side 2-3/8" (60,5mm) 2-3/8" (60,5mm)
W Sill height 8-1/2" (216mm) 8-1/2" (216mm)
X Opening depth 1-13/16" (46mm) 1-13/16" (46mm)
Safety distance 4" (100mm) 4" (100mm) 4" (100mm)
(left, right, rear) minimum minimum minimum
Distance to another 20" (50cm) 20" (50cm) 20" (50cm)
heat source
Disappearing door free 6-5/16" (160mm) 6-5/16" (160mm)
space right-hand side
MINIMUM
CLEARANCE
100mm
100mm
M
L
J
D
H
AW1
F
B
KW1
E1
E2
K
E
G
P
A
T
X
OVEN CHAMBER
MINIMUM
CLEARANCE
A
O
N
I
KW1
COMBITHERM
Q
C
P
OVEN CHAMBER
S
V
W
U
R
X
