COMBITHERM INSTALLATION AND MAINTENANCE MANUAL #6004/18
PG. 28

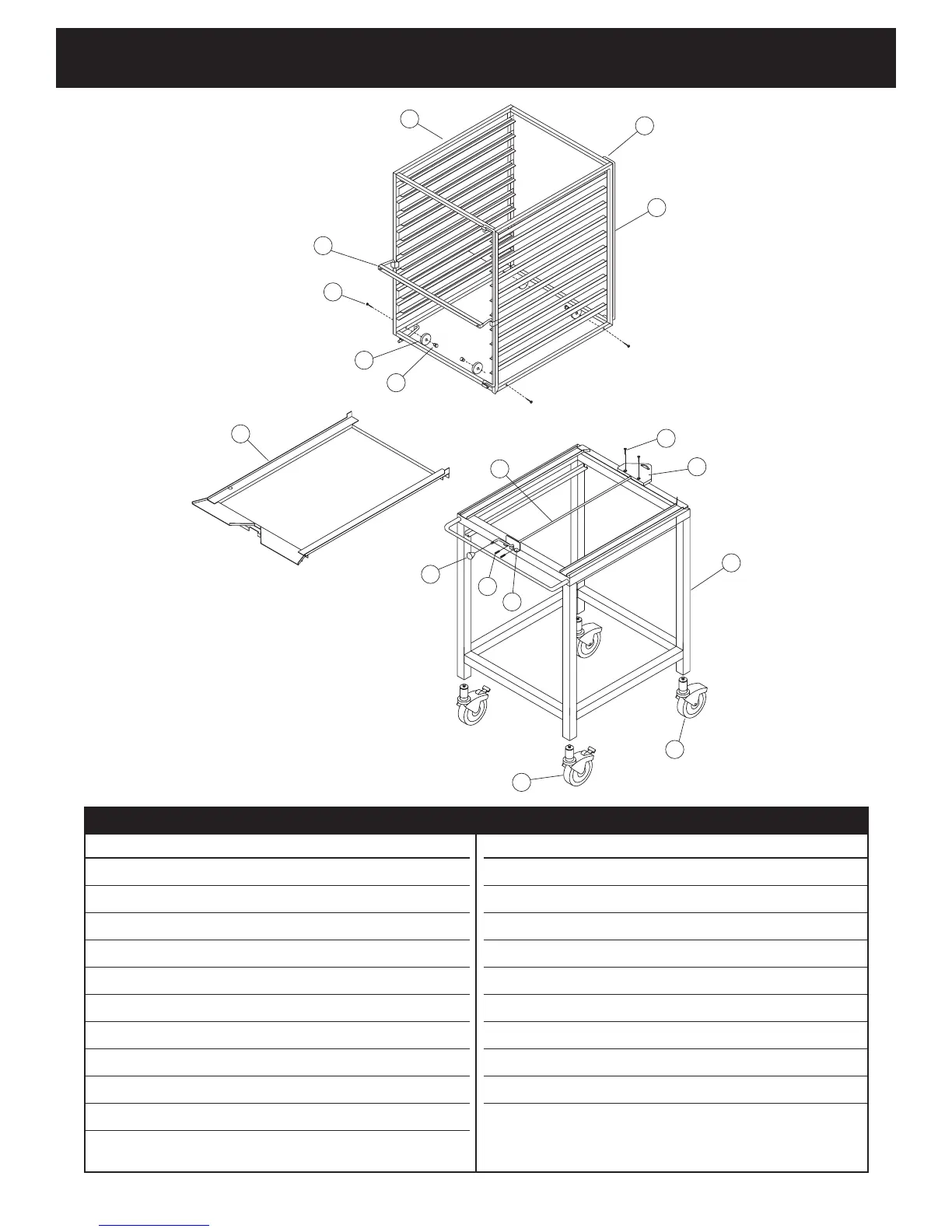

Rack Management Trolley System
10• 18 Combitherm and 10• 18W Warmer
DESCRIPTION QUAN. PT. NO.
Pan Rack Assembly 1 15638
1. Base Frame 1 14585
2. Handle Assembly 1 14184
3. Wheels 4 WH-23034
4. Wheel Axis 4 WH-23035
5. Wheel Screw 4 SC-23868
6. Pan Lock 2 LK-23029
7. Lock Screw 2 SC-22268
8. Rack Track Assembly 1 14582
NOTE: FOR QUICKCHILLER MODEL QC-40, REFER TO
QC-40 SERVICE PARTS LIST FOR RACK TRACK PART NUMBER.
DESCRIPTION QUAN. PT. NO.
Base Trolley Assembly 1 15635
9. Guide Block 1 BK-23020
10. Guide Screw 2 SC-2713
11. Lock Assembly 1 14580
12. Support Brace 1 12927
13. Brace Screw 2 SC-2425
14. Lever Knob 1 KN-23047
15. Locking Caster 2 CS-23050
16. Plain Caster 2 CS-23051
17. Base Assembly 1 14579
