Alto-Shaam AR-7T

INSTALLATION
Rot iss erie ▪ O p er a tor’ s Ma n u al ▪ M N- 3940 4 ▪ Rev 1 ▪ 1/19
26
Continued from previous page

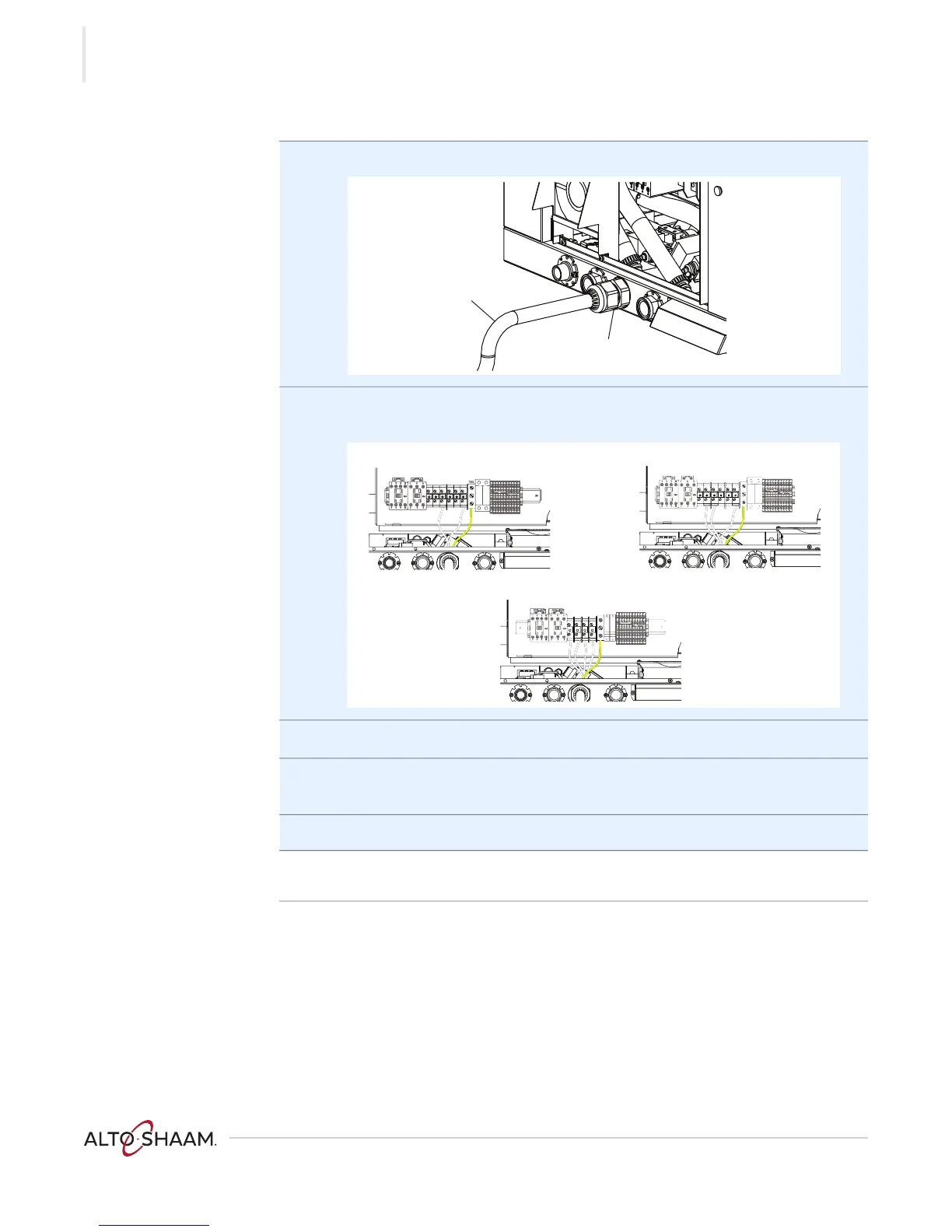

3. Install the cord c through the cord grip d and to the oven.
4. Connect the supply cord to the appropriate terminals (L1, L2, L3, N, etc.) in
accordance with local codes and regulations.
5. Install the ground wire.
6. Adjust the cord length. Tighten the cord grip sealing nut onto the supply
cord.
7. Re-install the left side panel.
Result The wiring is now connected.
AR-TS-005560
d
c
AR-TS-005563
L1
L2
TB1 TB2
L1
TB2
L2
L3
TB1
TB3
TB5
L1 L2
L3
N
TB1
TB2
TB3
TB4
TB5
208-240V 1Ph
208-240V 3Ph
380-415V 3Ph
