Operating Instructions DC-xx13 and M31xx
961-00060 rev9 21/25

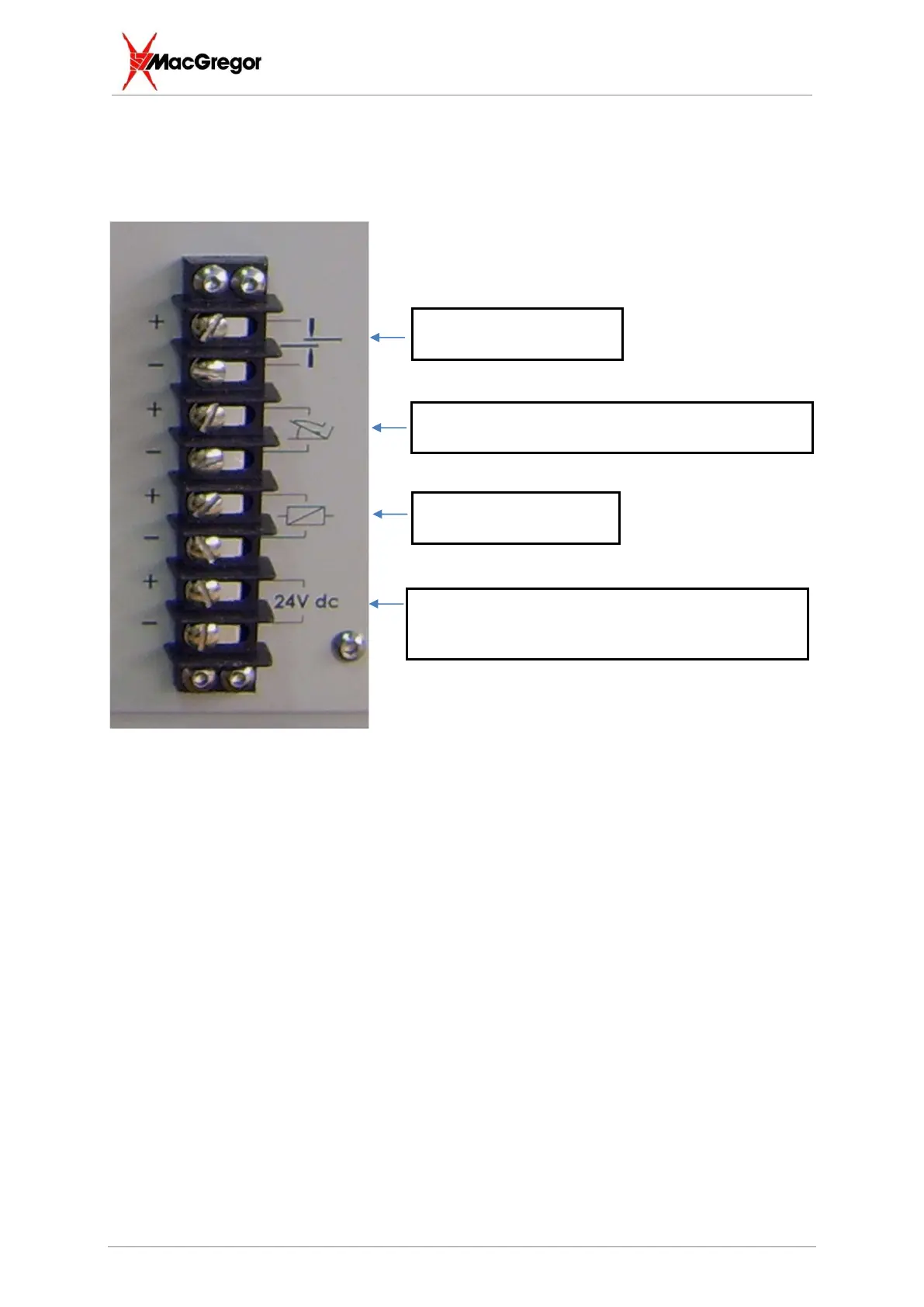

5.9 Quick Connection Strip
Trigger weld by shorting + & -
Foot switch connection point – When shorted, +24V is applied to the
solenoid connections
Solenoid connection point
Isolated +24VDC supply for solenoid and opto isolator driving.
1 amp max
