4.Operation (continue)
Be sure to read and understand on the page 3 to 7 “For safety operation” carefully before use
Connecting the wires for the external operation (continue)
●
4

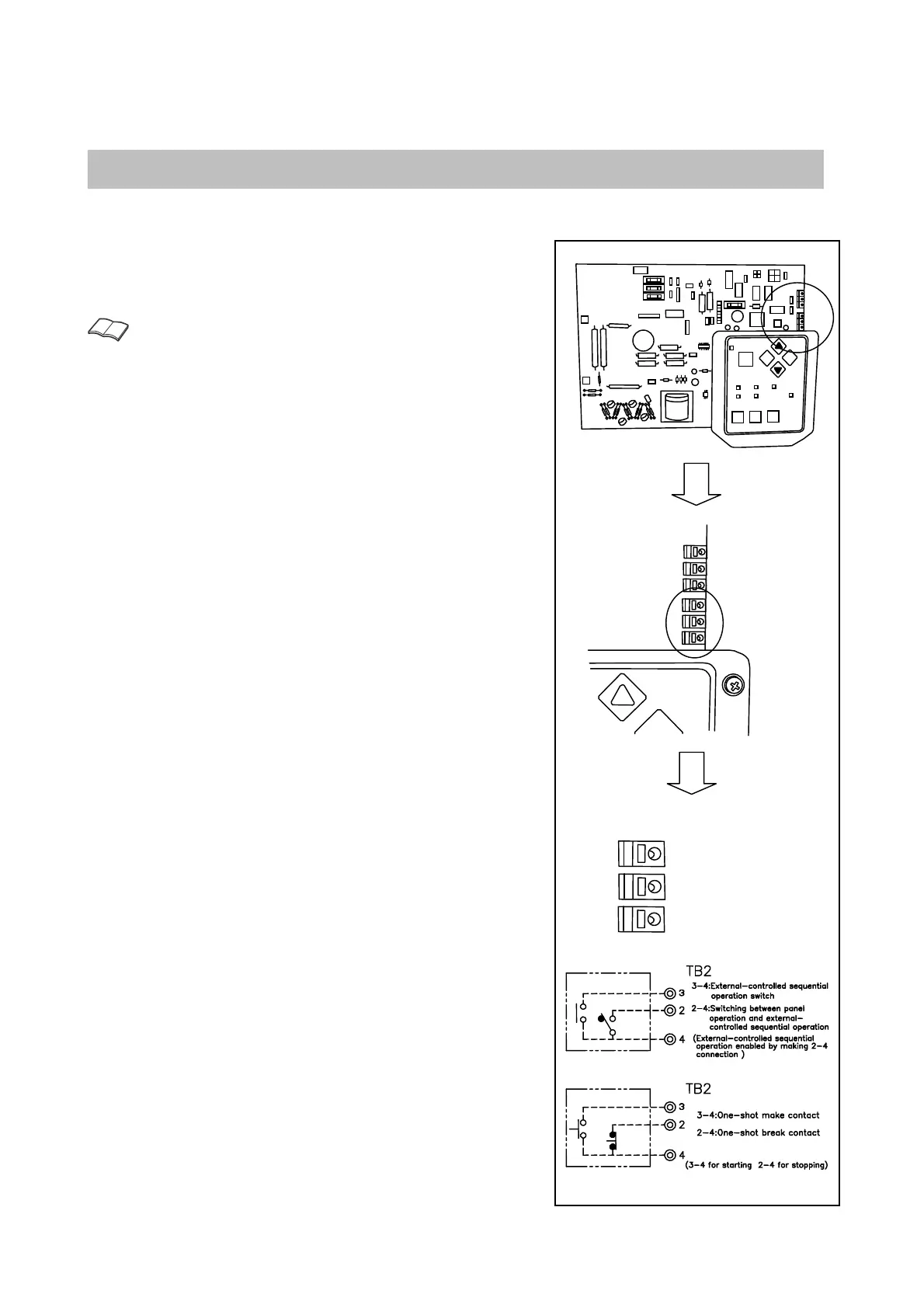

Connecting the external signal wire
Connect the external signal wire to the 2 to 4 of connection
part of TB2 following to the right diagram.
Advice
Either continuous or one-shot signals can be used as the
externaloperation signals. With continuous signals, the
operation will be executed while the contact is closed and so
the operation will be stopped when the closed contact is
opened. In the case of use of a relay, etc., it is this type. For
operation with continuous signals, connect 2-4 to allow the
interlock with the remote, and in this state, put continuous
signals in between 3-4.
With one-shot signals, however, once the contact is closed,
thatsignal will be held in the being closed, start/stop will not be
switched. So, be careful of this. To start, put the one-shot start
signal in 3-4. To stop, put the one-shot stop signal in 2-4.
※In
put one-shot signal for more than 500ms (more than 0.5s)
TB2
4
3
2
Input
