4.5 Tramlines
The counts the tramlines (see Fig. 8, below) in the
tramline counter
• after actuation of the track markers, e.g. before turning at the
end of the field
• after standstill of the machine without track marker
The tramline counter can be blocked (see section "Blocking the tram-
line counter", on page 36)
• before raising the track marker, e.g. before an obstacle
• before machine standstill, e.g. in event of a work interruption on
the field
Refer to the seed drill operating manual for the tramline rhythm re-
quired for your work.
Example:
A
Seed drill
3 m working width
B
Fertiliser spreader
24 m working width =
24 m tramline spacing
C
Tramline rhythm
8

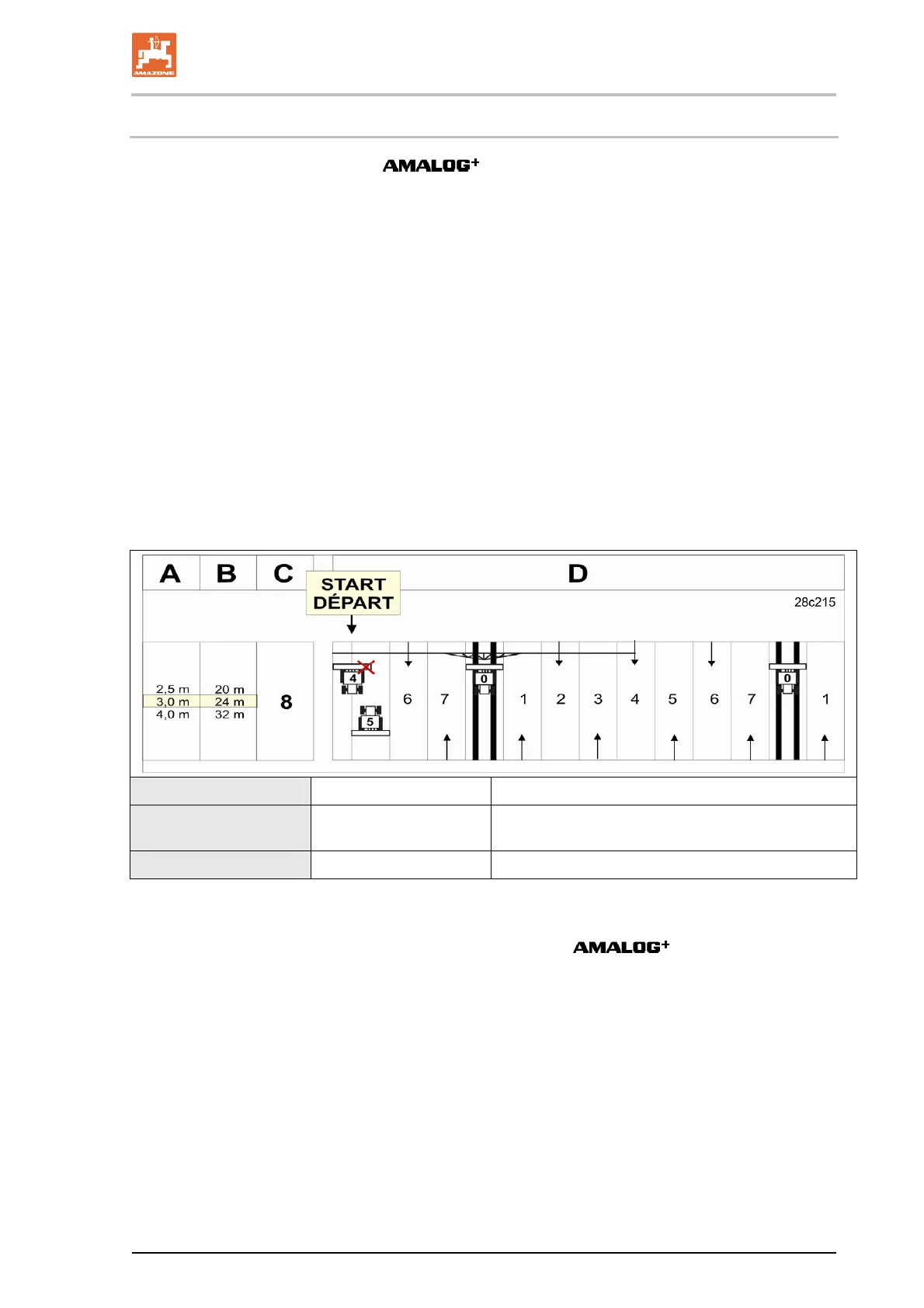

Fig. 8
Enter the tramline rhythm in the
(see section "Entering
tramline rhythm", on page 26).
