The mower unit
42
GH HH Super SMARTCUT BAF0009.3 05.17

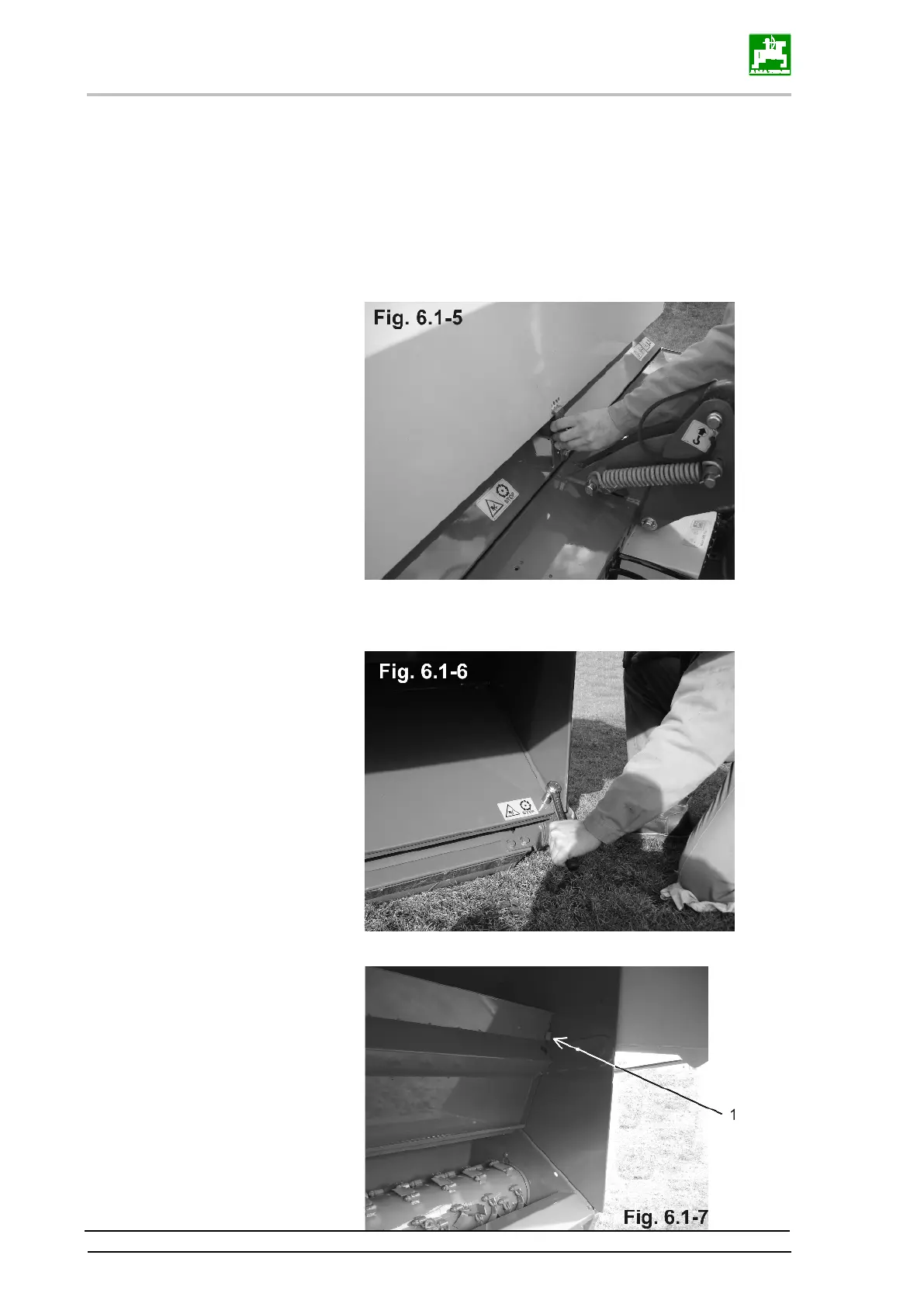

The rotor is accessed in the following manner:
• Attach the machine to a tractor.
• Open container to max. position,
• Turn off the tractor engine.
• Hang in retaining hook (Fig. 6.1-5)
• Remove the screws for the intermediate hood (Fig. 6.1-
6), fold up
and engage with retaining hook (Fig. 6.1-7/1).
