9.2 Lubrication points
Depending on the intensity of work, the following areas should be
regularly lubricated with multipurpose grease:

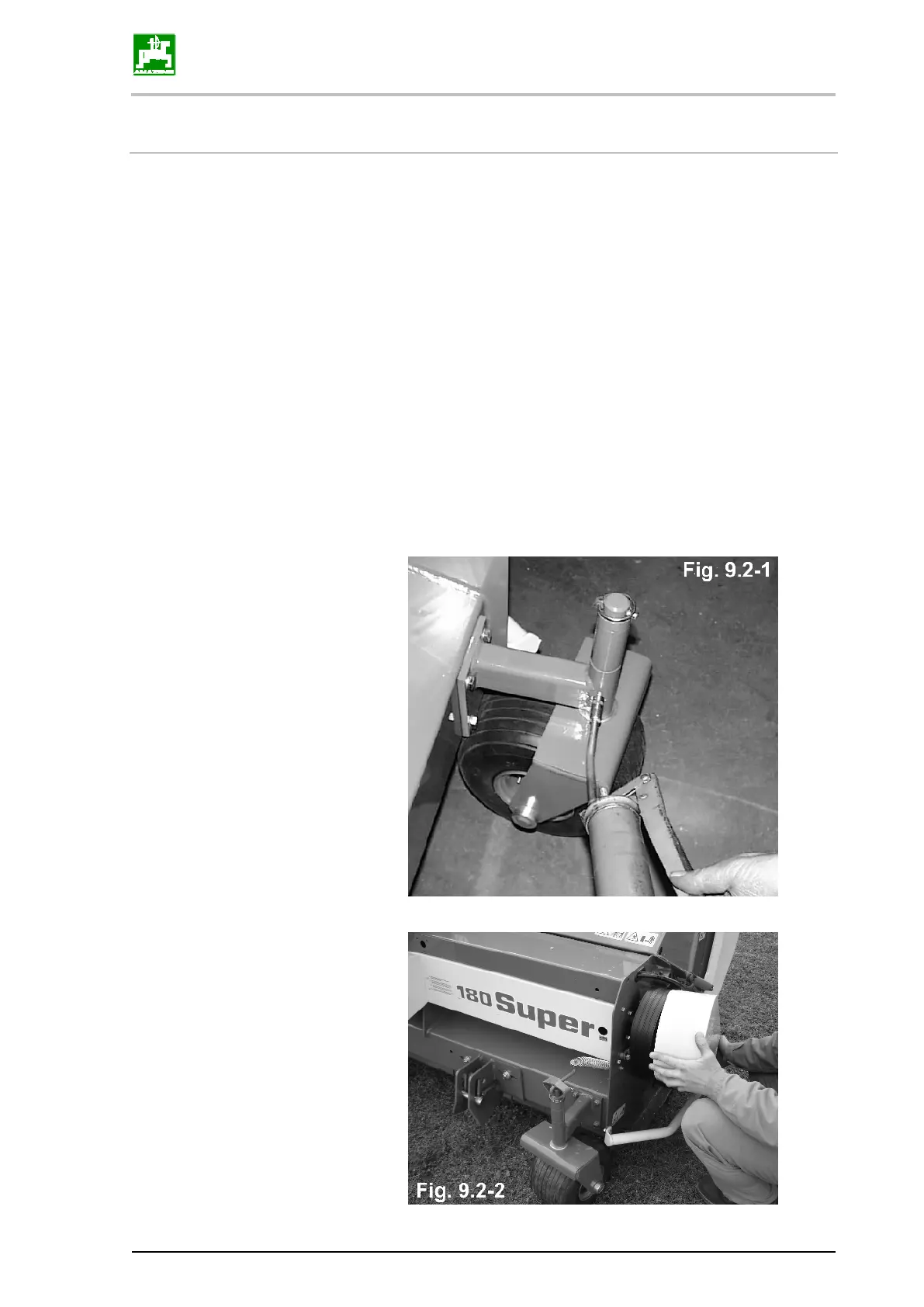

• Guide wheel fork bearing (fig. 9.2-1).
• Rotor bearings (the V-belt protection on the left-hand side of the
machine must be removed beforehand (WAF 13) (Fig. 9.2-2),
• Rear cage roller bearing (Fig. 9.2-4),
• Shaft bearing (Fig. 9.2-5)
• PTO shaft.
• (if the front cage roller accessory is used, also lubricate the cor-
responding bearings).
