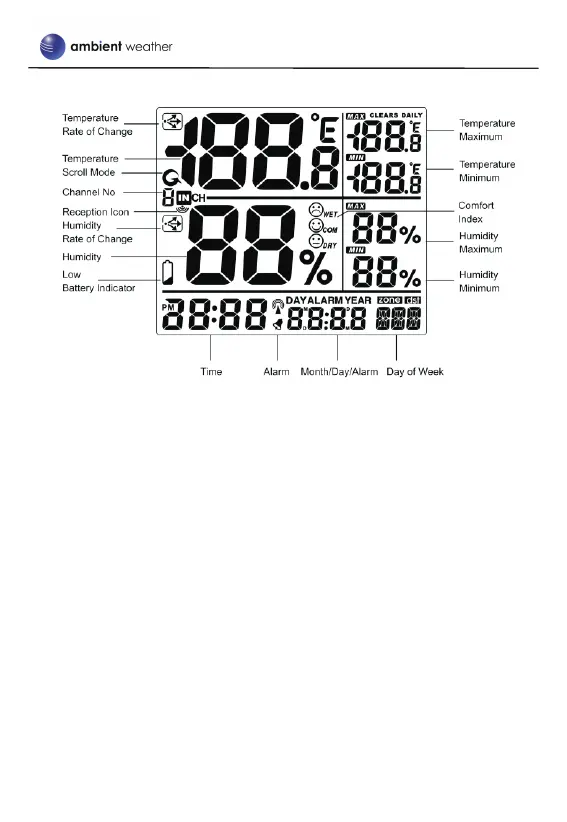

2.4.1 Display Console Layout
Figure 5
2.4.2 Sensor Operation Verification
Verify the indoor and outdoor humidity match closely with the console and
sensor array in the same location (about 5 to 10' apart). The sensors should be
within 10% (the accuracy is ± 5%). Allow about 30 minutes for both sensors to
stabilize. The humidity can be adjusted or calibrated later to match each other a
known source.
Verify the indoor and outdoor temperature match closely with the console and
sensor array in the same location (about 5 to 10' apart). The sensors should be
within 2°F (the accuracy is ± 1°F). Allow about 30 minutes for both sensors to
stabilize. The temperature can be adjusted or calibrated later to match each
other or a known source.
3. Remote Sensor Installation
It is recommended you mount the remote sensor on a north facing wall, in a
shaded area. Direct sunlight and radiant heat sources will result in inaccurate
temperature readings. Although the sensor is water resistant, it is best to
mount in a well protected area, such as under an eve. Use a screw or nail
(not included) to affix the remote sensor to the wall, as shown in Figure 6.
Version 1.0 ©Copyright 2013, Ambient LLC. All Rights Reserved. Page 6
