Version 1.2 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 6

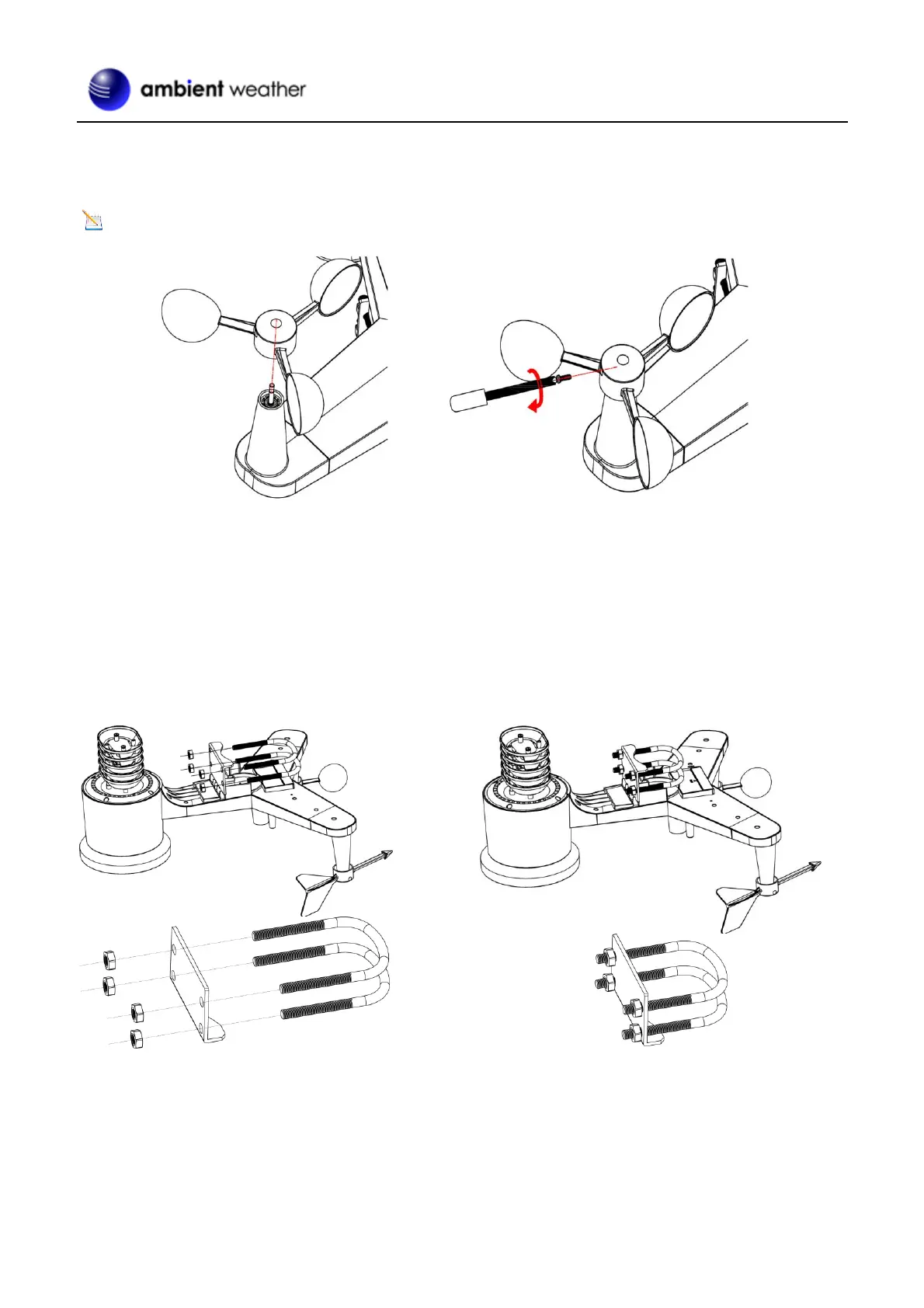

5.3.2 Install Wind Cups
Reference Figure 3. (a) push the wind cups on to the shaft. (b) tighten the set screw with a precision screw driver and
make sure the wind cups spin freely.
Note: You may need to back out the set screw first before sliding the cups onto the shaft.
Figure 3
5.3.3 Install U-Bolts
Note: Your U-bolts may have come preassembled at the factory.
(a) Insert the U-Bolts into the sensor array mounting bracket and hand tighten the nuts.
(b) Tighten the nuts to fit the size of your mounting pole (between 1” and 2” diameter
(c) Insert the sensor array and U-Bolt assembly onto the mounting pole.
(d) Tighten the U-Bolts around the pole with an adjustable wrench. Make sure the sensor array is level.
