Ambient Weather WS-1900A User Manual

Version 1.2 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 7
(c)
(d)
Figure 4

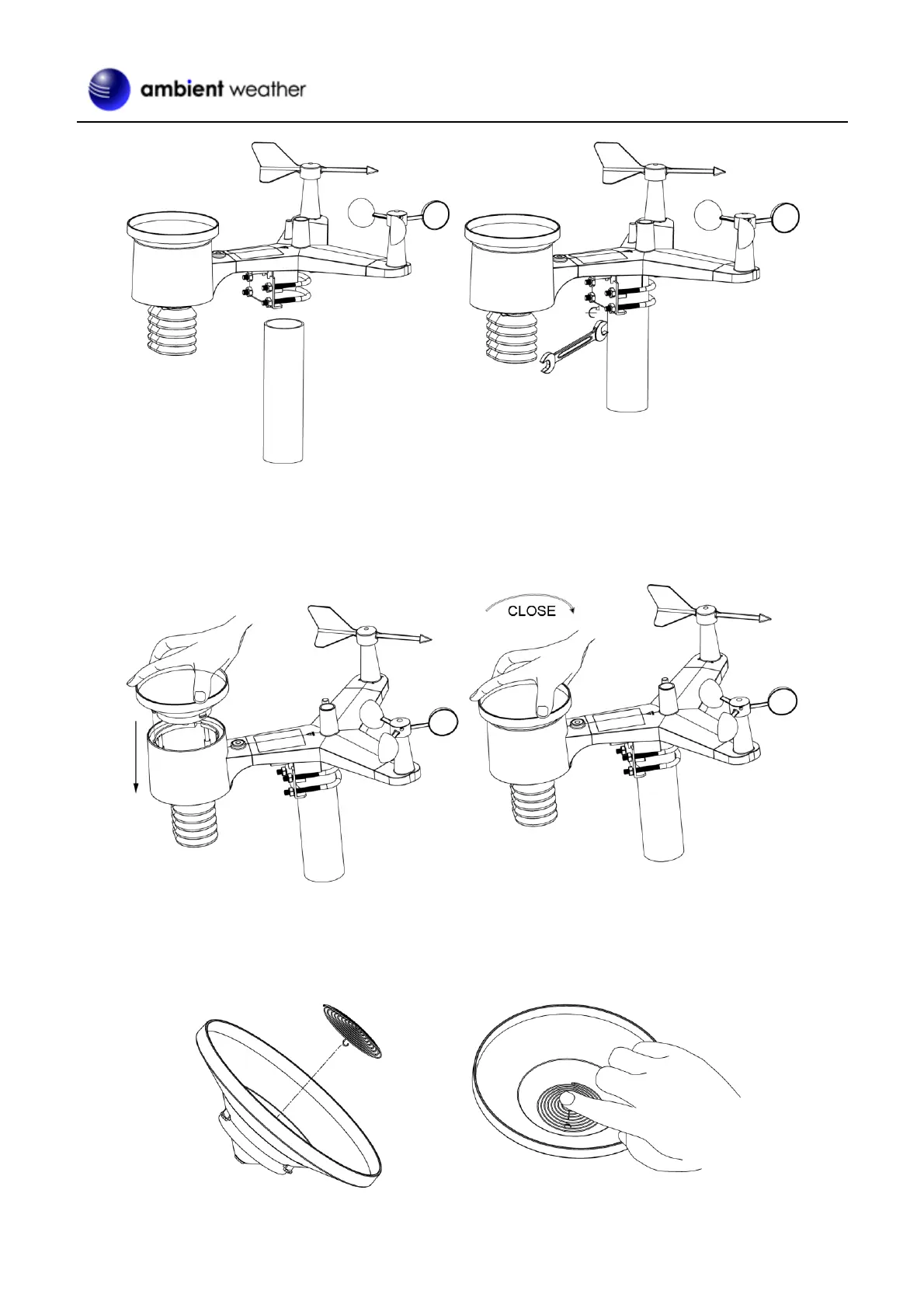

5.3.4 Install the Rain Gauge Funnel
Reference Figure 5. Install the rain gauge funnel. Rotate clockwise to attach the funnel to the sensor array.
Figure 5
5.3.5 Install the Funnel Coil Filter
To install the funnel coil filter, press the coil until the hook is inside the hole at the bottom of the funnel, and locked
in place. The spring tension will keep the filter sit tight on the funnel.
