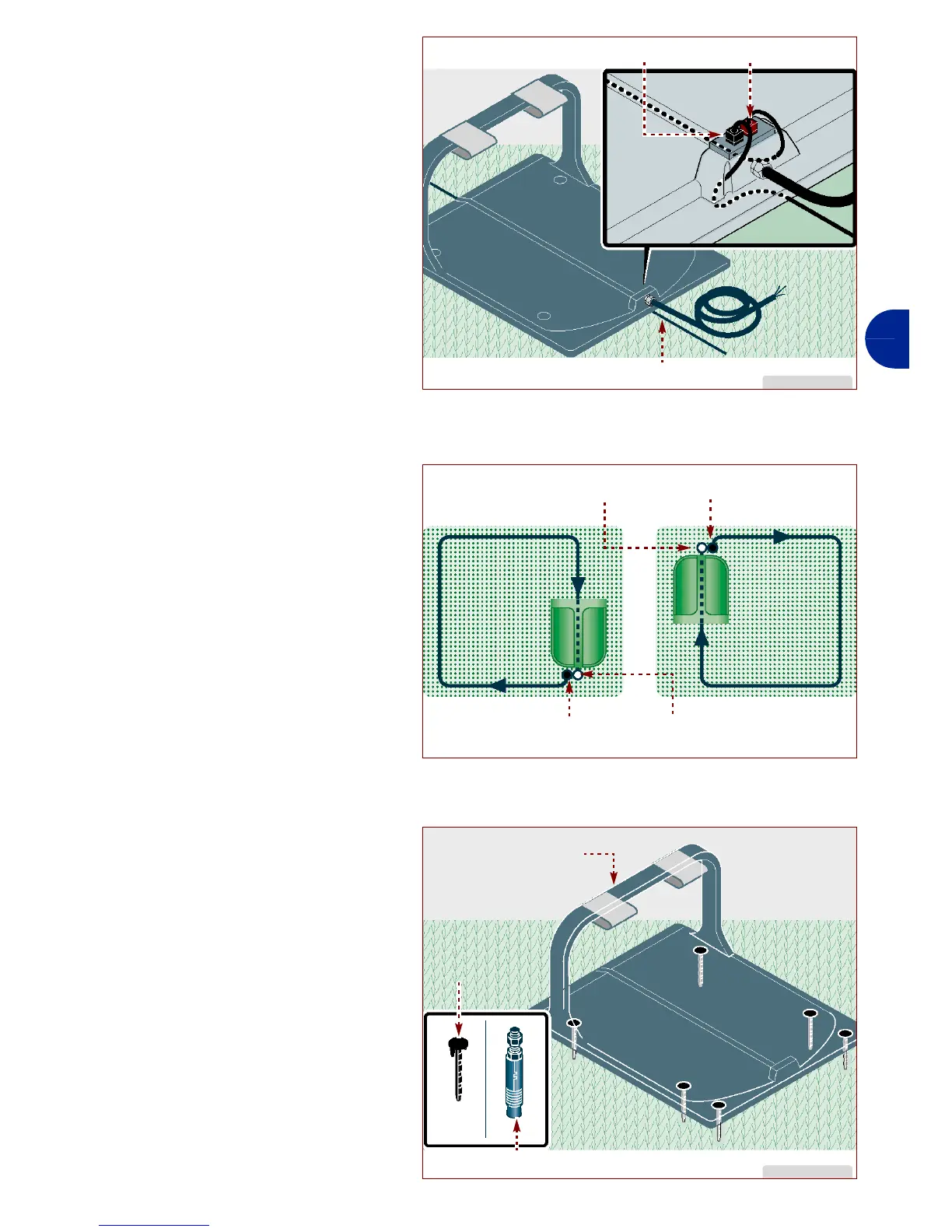

4-Position the base in the prede-
fined area.
5-Insert the perimeter wire (M)
under the base.
6-Connect the two ends of the
wire to the terminals of the
base.
7-Fasten the base (N) to the
ground with nails (P). If neces-
sary, fasten the base with ex-
pansion inserts (Q).
IDM - 41501701600.tif
perimeter wire (M)
Red terminalBlack terminal
IDM - 41501711600.tif
Black terminalRed terminal
Red terminalBlack terminal
IDM - 41501701800.tif
nails (P)
Expansion inserts (Q)
Reload station (N)
