User's manual
GB

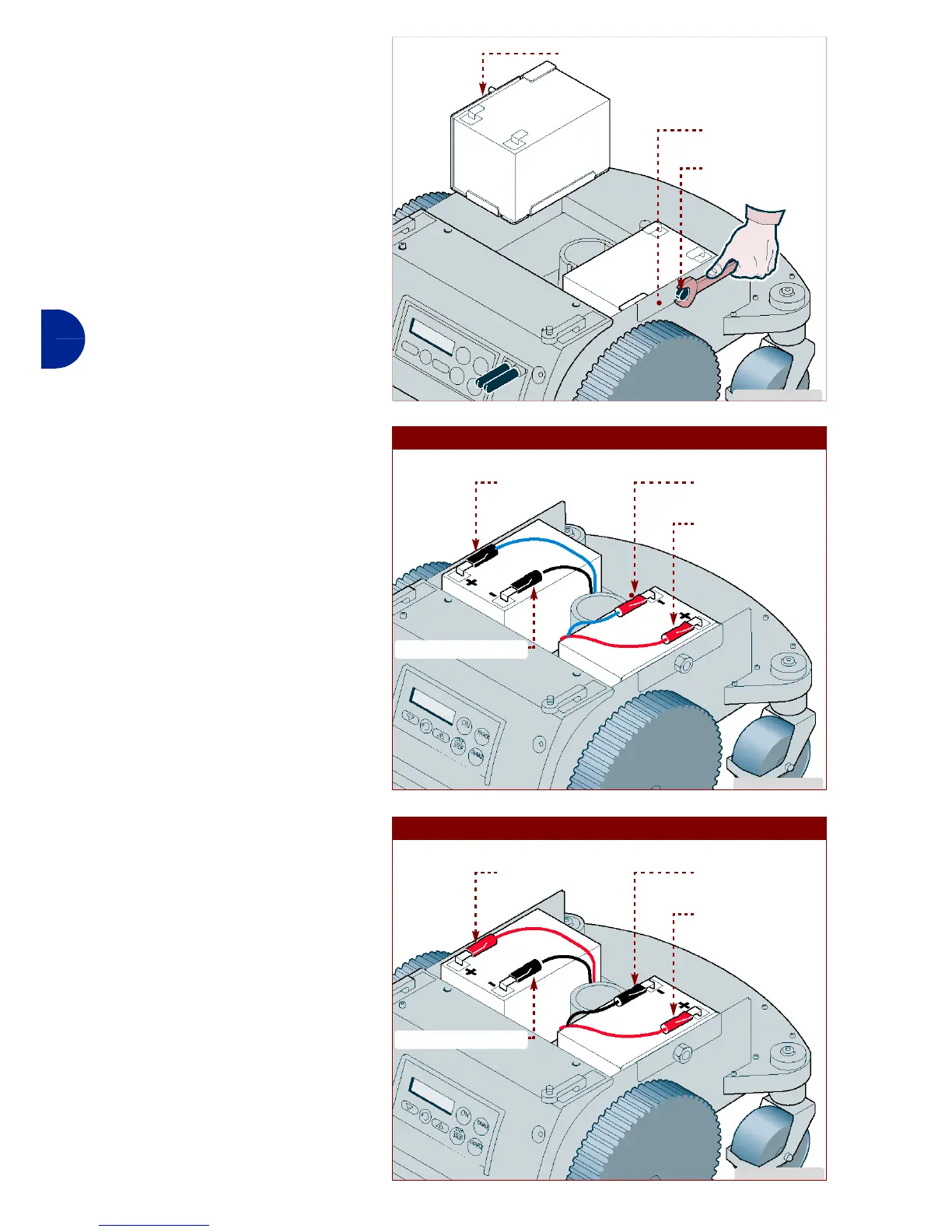

5-Assemble the brackets (F)
complete with batteries.
6-Tighten the nuts (E).
7-Connect the connector (H)
(red colour with blue)
8-Connect the connector (L)
(red colour with red cable)
9-Connect the connector (M)
(black colour with blue cable)
10-Connect the connector (N)
(black colour with black cable)
Lithium battery connection
1-Disconnect the cables in se-
quence (R-S-Q-P).
IDM - 41501702400.tif
nut (E)
bracket (F)
bracket (F)
IDM - 41501702500.tif
LEAD BATTERY
connector (H)
connector (L)
connector (M)
connector (N)
IDM - 41501702600.tif
LITHIUM BATTERY
connector (P)
connector (Q)
connector (R)
connector (S)
