- 60 -
C141501700.fm
User's manual
GB

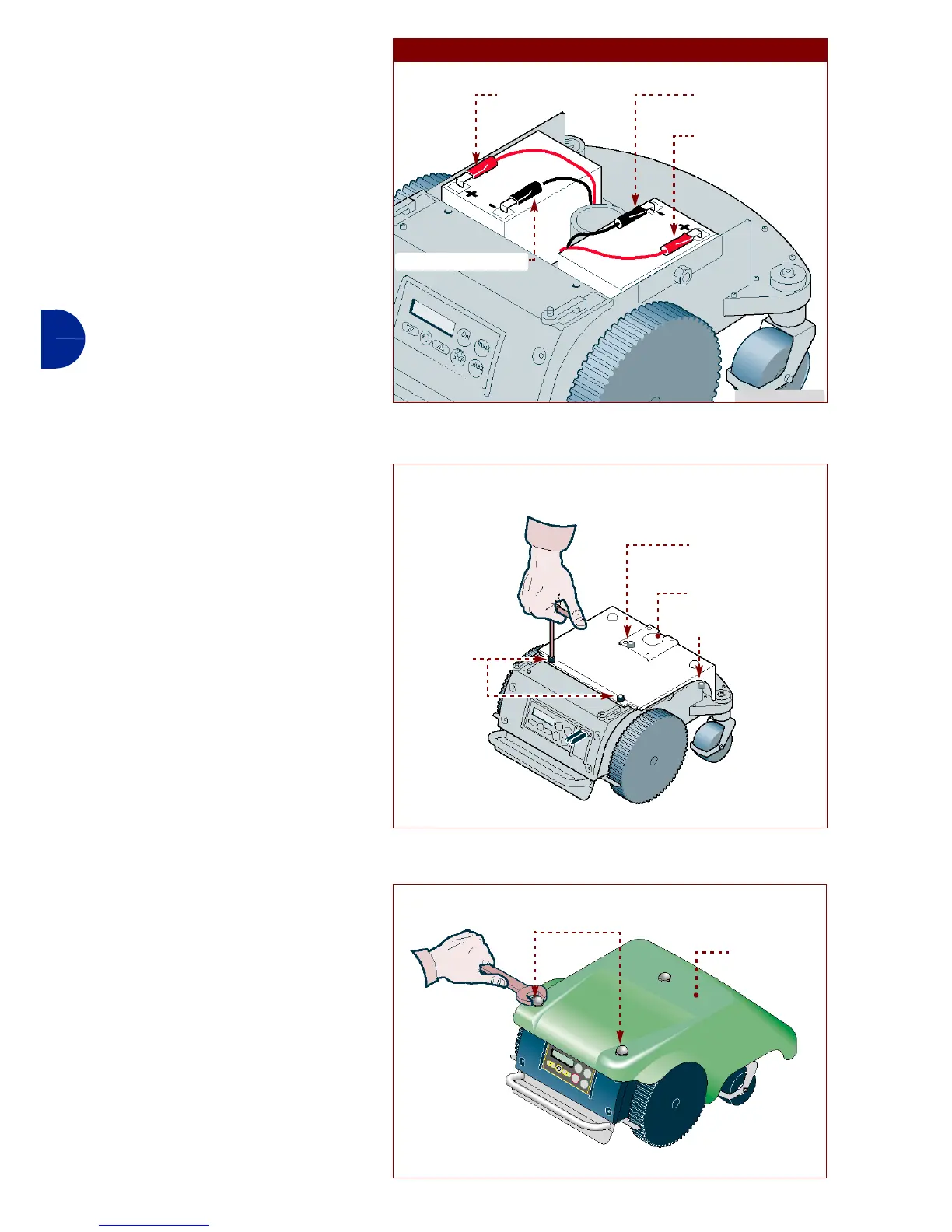

7-Connect the connector (P)
(black colour with black cable)
8-Connect the connector (Q)
(red colour with red cable)
9-Connect the connector (R)
(red colour with red cable)
10-Connect the connector (S)
(black colour with black cable)
On completing the batteries con-
nections proceed as indicated.
1-Reassemble body cover (D)
and tighten screws (C).
2-Assemble the hood (B).
3-Tighten the knobs (A).
IDM - 41501702800.tif
Recharging knobs (A)
hood (B)
IDM - 41501702700.tif
guard (D)
screw (C)
screw (C)
screw (C)
IDM - 41501702600.tif
LITHIUM BATTERY
connector (P)
connector (Q)
connector (R)
connector (S)
