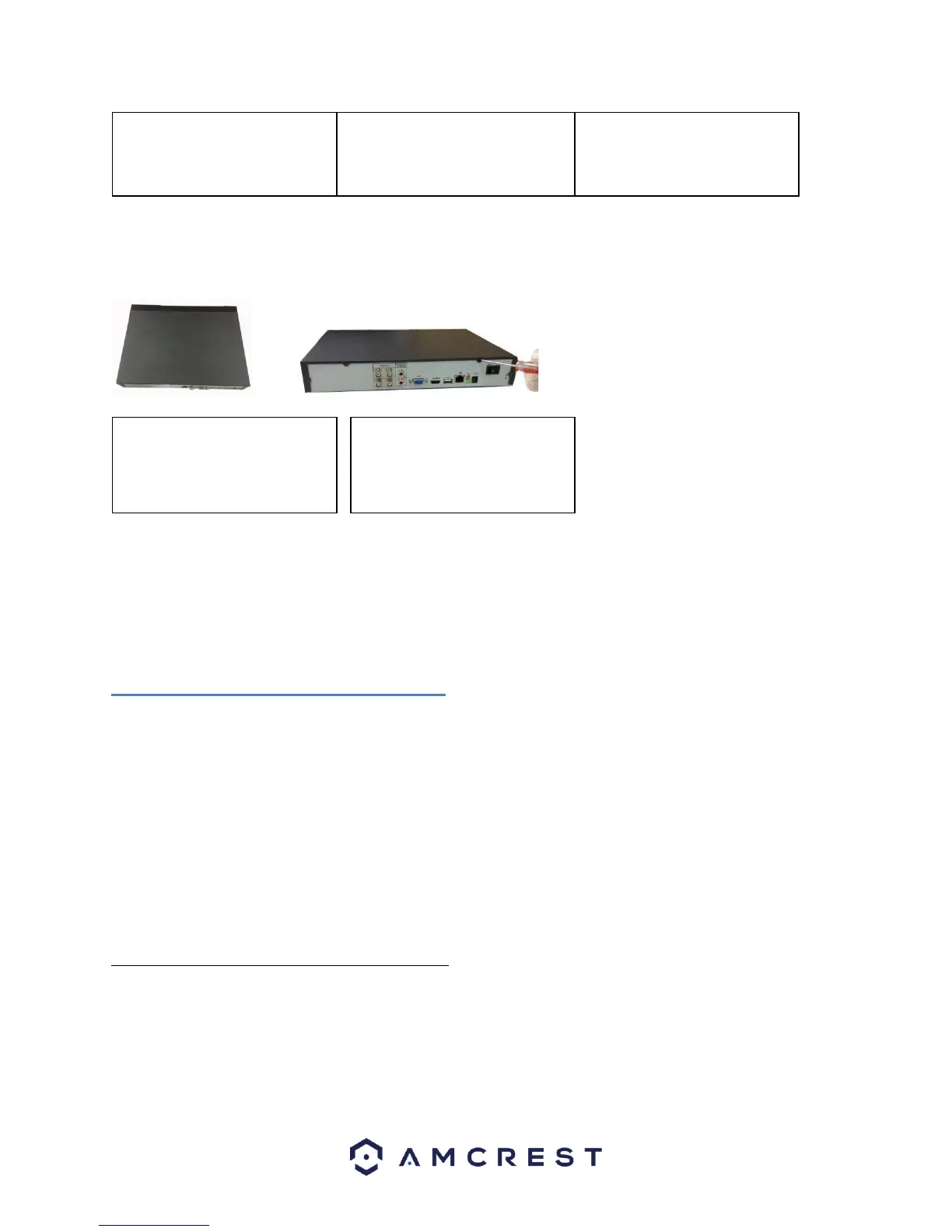

4. Turn the device upside down

and then turn the screws in

firmly in the chassis.

5. Attach the HDD firmly.

6. Connect the HDD cable and

power cable.

7. Put the cover on in accordance

with the clip and then place the

upper cover back on.

8. Secure the screws in the rear

panel and the side panel.

Note:

• An HDD is included with the DVR by default.

• To connect the HDD, connect the HDD data cable and the power cable before attaching the HDD in the device.

• To remove the front cover, push the clip first, and then slide the cover off.

3.3 Connection Port Information

3.3.1 Power Supply Connection

Please check to make sure the input voltage is correct, and the power button is in the off position when connecting

the power supply.

We recommend you use an Uninterruptible Power Supply (UPS) to guarantee steady operation of the DVR, as well

as to elongate the life span of the DVR and other peripheral equipment such as attached cameras and other

accessories.

3.3.2 Video Input/Output Connections

3.3.2.1 Video Input Connection Information

The video input interface is BNC.

The input video format includes: PAL/NTSC BNC (1.0VBP- P, B75Ω)

The video signal should comply with your national standards.

Amcrest AMDV4M4 User Manual
