Amcrest AMDV4M4 - Device Connection Example

9
8
HDMI
High definition media
interface
High definition audio and video signal
output port. It transmits uncompressed
high definition video and multiple-channel
data to the HDMI port of the display
device.
9
USB 2.0 port
Connect to USB storage device, mouse,
burning DVD-ROM etc.
10
GND
Ground end.
2.3 Device Connection Example

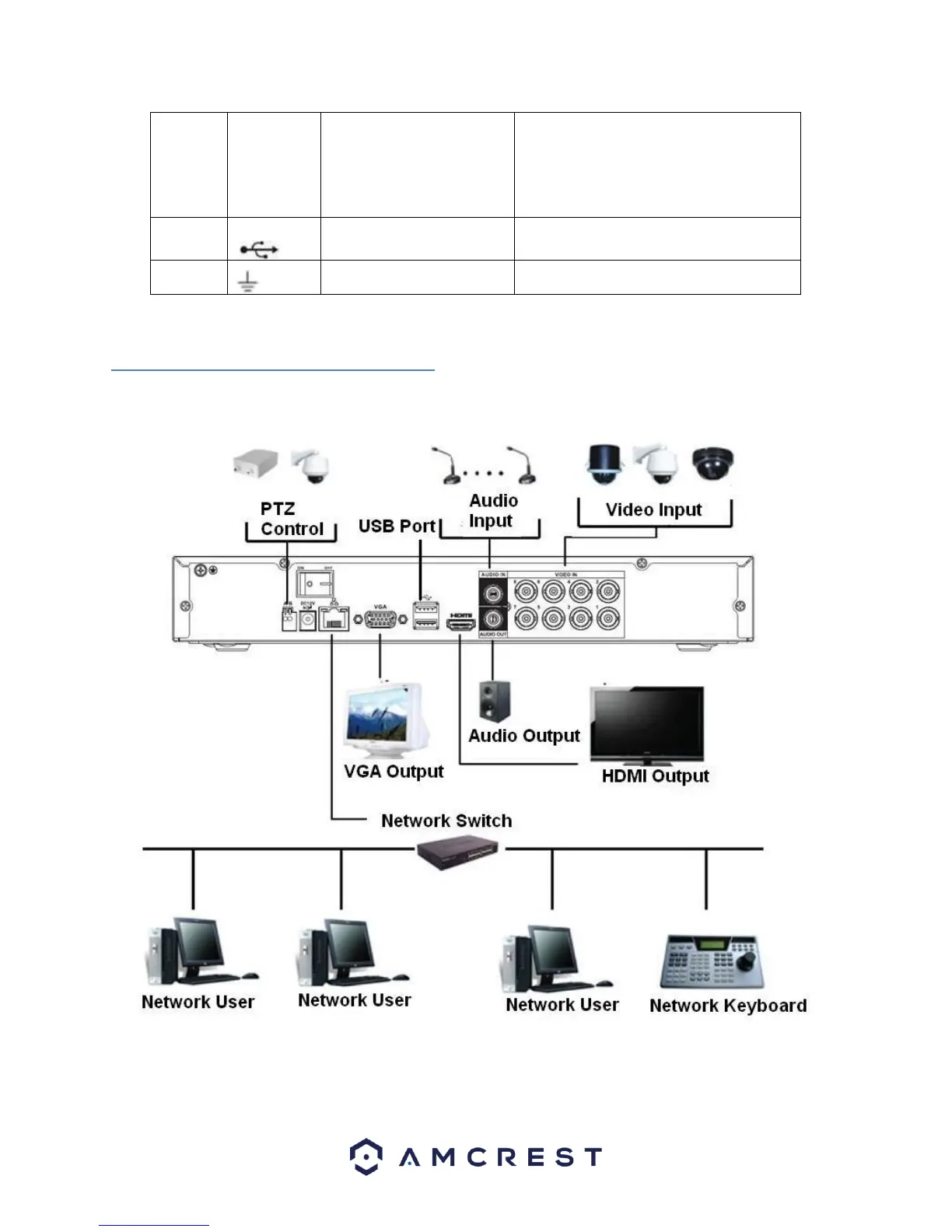

The below diagram provides an example of the variety of devices the DVR can interface and connect with.
