2-4 Install Memory
This motherboard provides four 240-pin DDR III DUAL INLINE MEMORY MODULES
(DIMM) socket for DDR III memory expansion available to maximum memory volume
of 8 GB DDRIII SDRAM.
Valid Memory Configurations
Bank 240-Pin DIMM PCS Maximum
Capacity
DDRIII1 DDR III 800/1066/ 1333/1600 X1 2GB
DDRIII 2 DDR III 800/1066/ 1333/1600 X1 2GB
DDRIII 3 DDR III 800/1066/ 1333/1600 X1 2GB
DDRIII 4 DDR III 800/1066/ 1333/1600 X1 2GB
Total System Memory (Max2GB) 4 8GB
Dual channel Limited!
1. Dual channel function only supports when 2 DIMMs plug in either both DDRIII1 &
DDRIII2, or four DIMM Modules plug in DDRIII1~DDRIII4.
2. Memory modules for dual channel function must be the same type, same size, same
frequency for dual channel function.

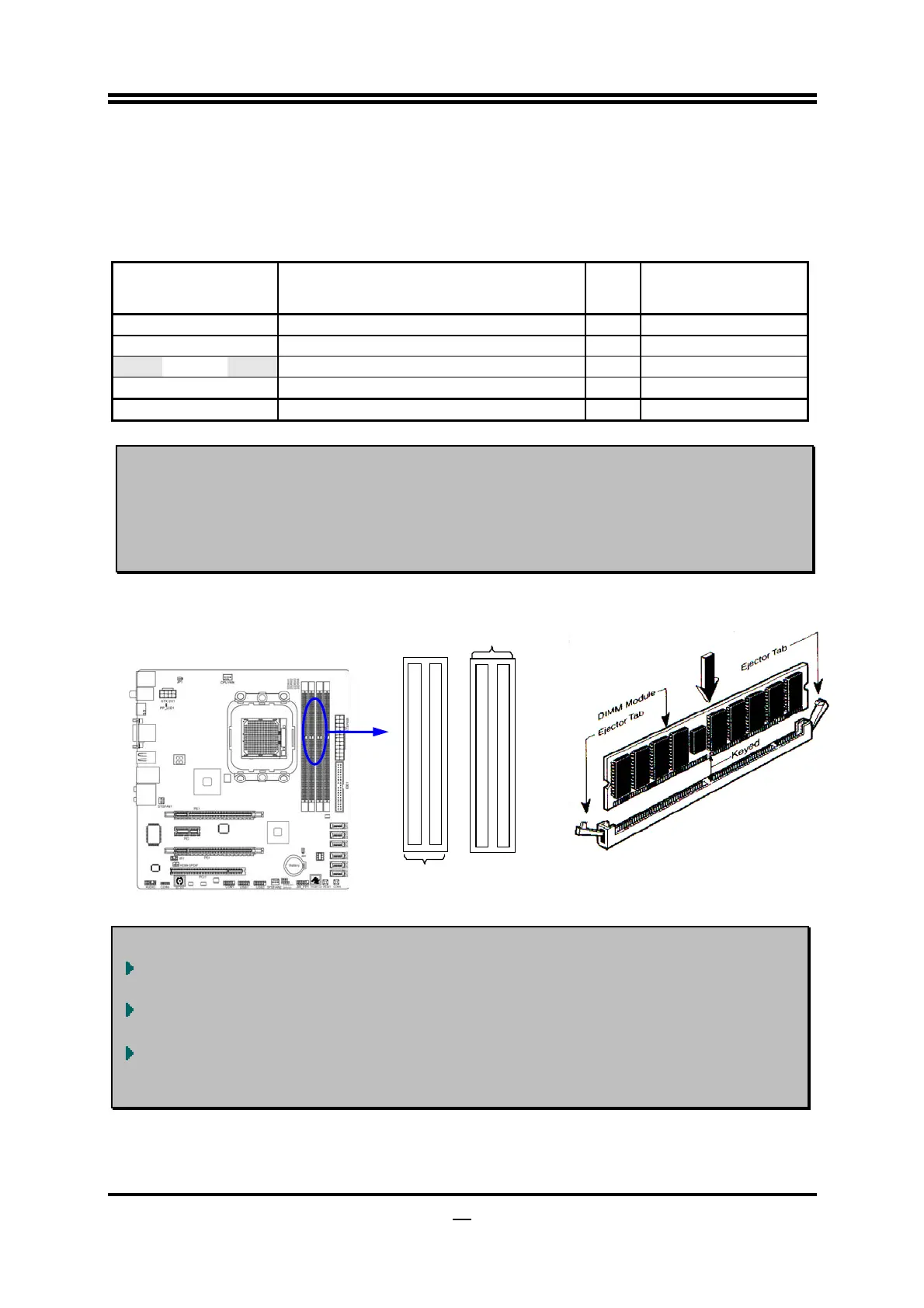

Install DDR SDRAM modules to your motherboard is not difficult, you can refer to
figure below to see how to install DDRIII 800/1066/1333/1600 SDRAM module.
DIMM2 (BANK2+ BANK3) DIMM1 (BANK0+BANK1)
DIMM4 (BANK6+BANK7) DIMM3 (BANK4+BANK5)
DDRIII1 & DDRIII2: Dual Channel 1
D
DRIII3& DDIII4: Dual Channel 2
Graph 2-4
Installation Tips：
Open the two plastic clips of memory slots then push down the module vertically
into the slot. See to it that the hole of the module fit into the notch of the slot;
The two plastic clips will automatically close if the memory module is fitted in a
proper way.
We suggest that priority given to DDRIII11 and DDRIII2 in multi-DIMM
installation. System won’t start when you only install memory DIMM in DDRIII3
and DDRIII4.
